DD BASSKIT MINI6

DD BASSKIT MINI6
DD BASSKIT MINI6.
Read more
Description
Specifications

Description

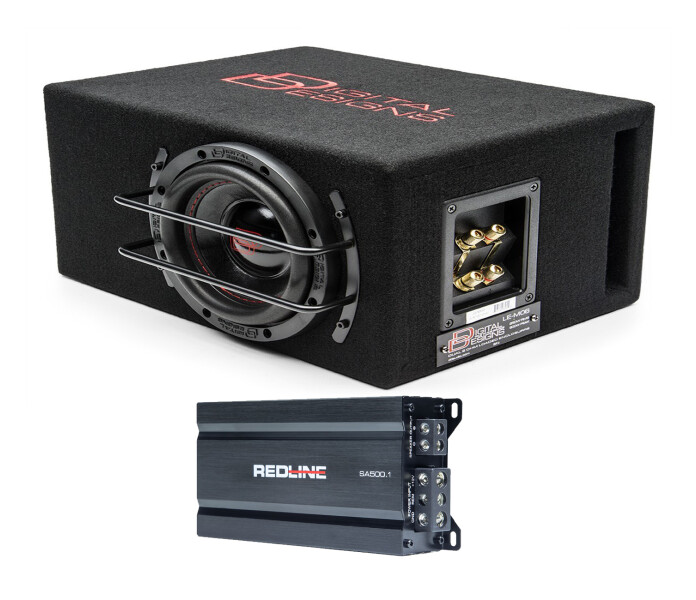

Very compact basskit! For its size, you have really wide installation possibilities, in any vehicle! The MINI6 kit includes DD Audio SA500.1 amplifier and LE-M06d subwoofer! SA Series amplifiers are compact amplifiers with full size features. The SA500.1 is a 1 ohm stable monoblock subwoofer amplifier with a continous output power of 500 watts. Even though the SA Series amplifiers are very compact they still employ set screw power and speaker terminals, different input sections, and heavy duty aluminum heatsinks. LE-M is more! DD Audio LE-M06d is a compact loaded enclosure. Next generation of famous LE-M06 is now even better. Driver has all new design that gives more lower bass thanks to lower fs-value. Spider, surround, cone and all parts of this little beast are re-thinked and re-designed to outperform the previous model

Specifications

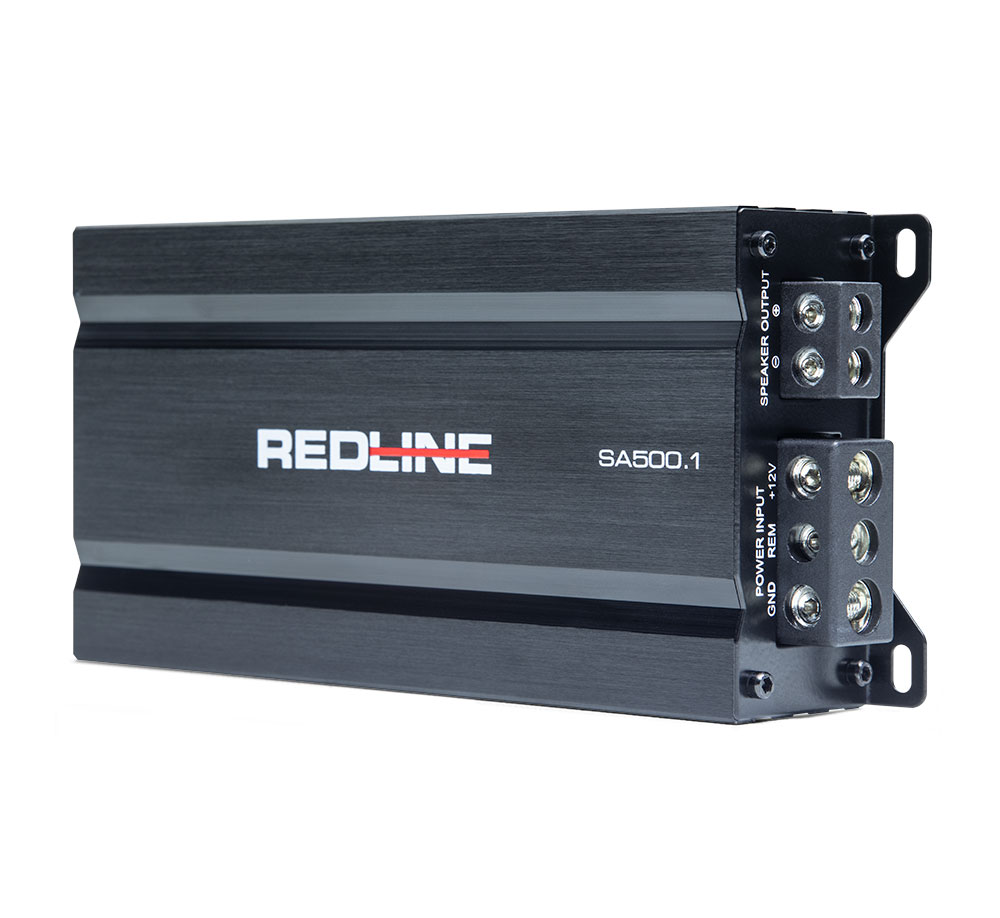

RL-SA500.1:

Class: D-class amplifier
Operating voltage: 9-16
Test voltage: 14.4
Output Channels: 1
Cont wattage @4Ohm: 250
Cont wattage @2Ohm: 390
Cont wattage @1Ohm: 500
Dynamic wattage: 1000
Max current draw - Amps: 50
RCA input sensivity - Volts: 6 - 0.25
High level sensivity - Volts: 20 - 1.1
Frequency response - Hz: 85
S/N Ratio -dB: 70
Damping factor: 10 - 250
THD: 0.1%
Boost level: 12dB @ 45Hz
High pass filter - NA
Subsonic filter - Hz: 10 - 50
Low pass filter - Hz: 35 -250
Remote subwoofer control: Yes
Power wire gauge - IN: 4
Speaker wire gauge - OUT: 12

Dimensions - in 7 x 3.8 x 1.69
Dimensions - mm 180 x 96 x 43

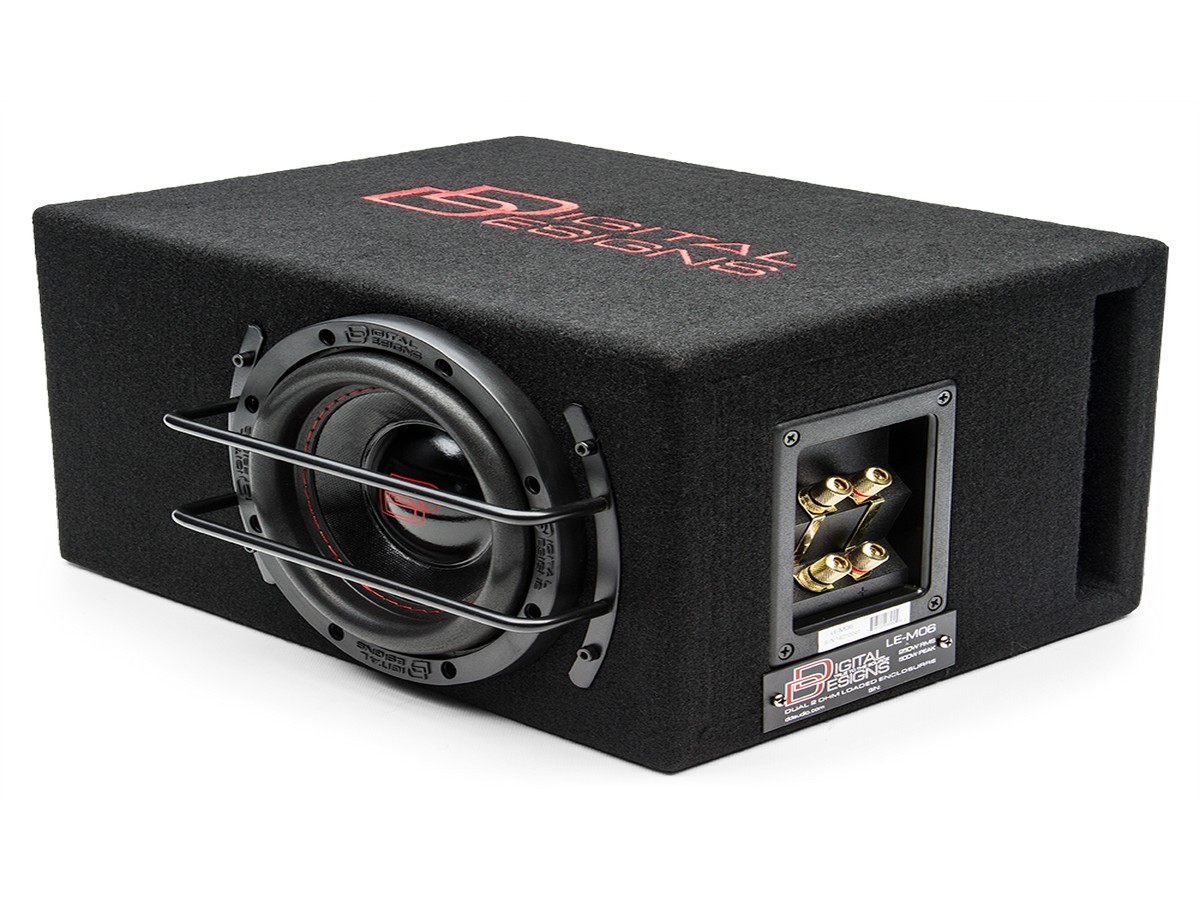

LE-M06d:

Voice coil diameter: 2″
Impedance: 2x 2ohms
Dimensions: 355 x 203 x 266 mm
