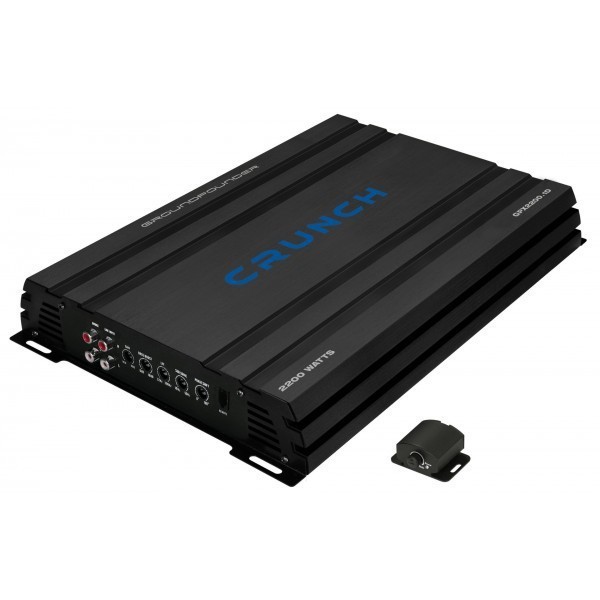

CRUNCH GPX 2200.1D2

GPX2200.1D2

Output Power RMS
1 x 500 W into 4 Ohms
1 x 800 W into 2 Ohms
1 x 1100 W into 1 Ohms
Output Power Max.
1 x 1000 W into 4 Ohms
1 x 1600 W into 2 Ohms
1 x 2200 W into 1 Ohms
Loudspeaker impedance 1 - 8 Ohms
Frequency Response 10 - 300 Hz (-3 dB)
Total Harmonic Distortion 0,5 % (80 Hz)
Signal-to-Noise Ratio 90 dB
Input Sensitivity 0,2 - 5 V
Input Impedance 20 kOhms
Lowpass Filter 32 - 300 Hz @ 12 dB/Octave
Subsonic Filter 10 - 50 Hz @ 12 dB/Octave
Bass Boost 0 - 18 dB
Phase Shift 0 - 180°
Operating Voltage +12 V (9 - 15 V), negative ground
Fuse Rating 3 x 40 A
Dimensions (B x H x L) 254 x 46 x 355 mm.
