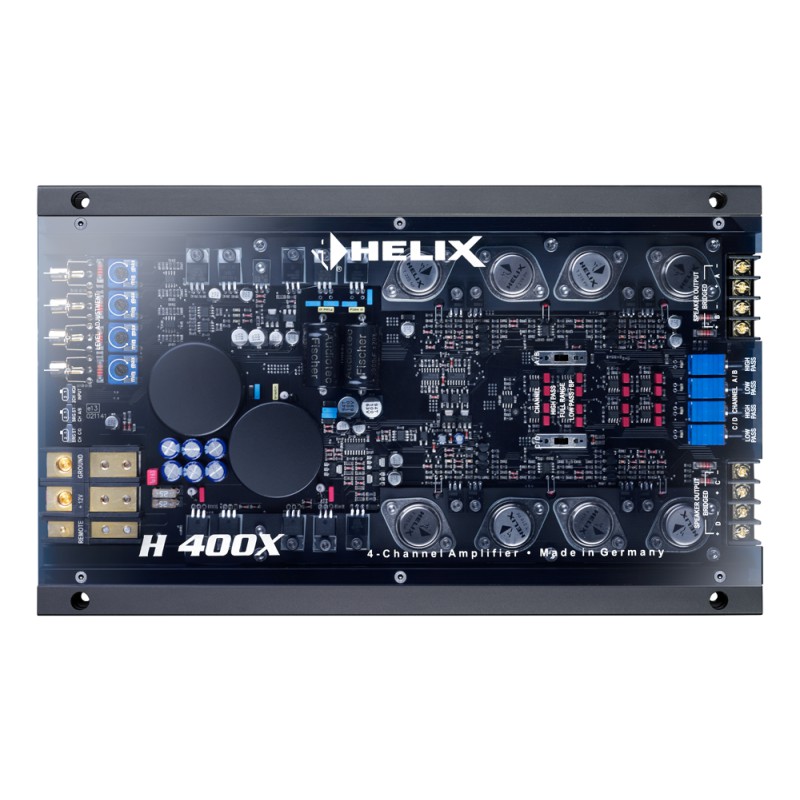

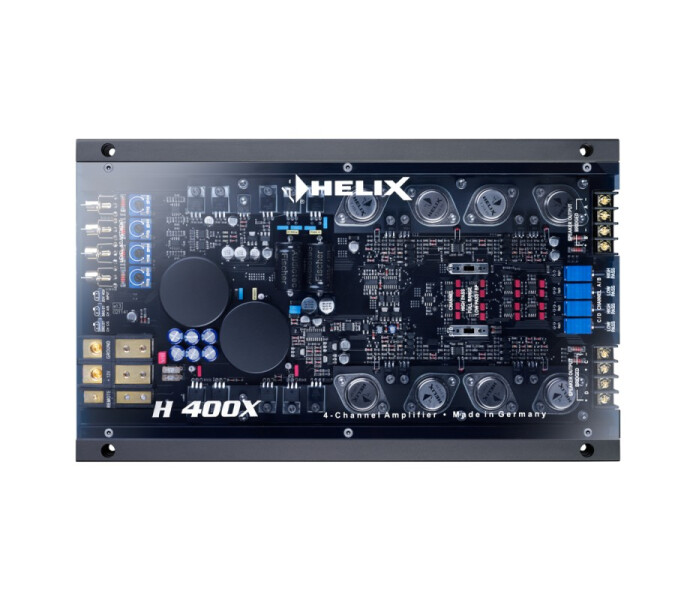

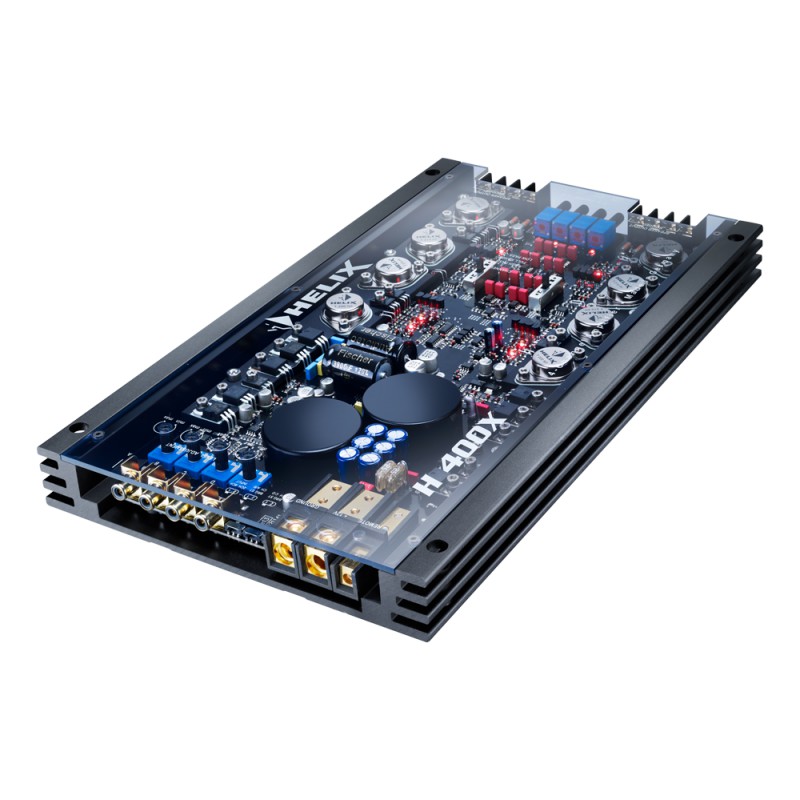

Helix H 400X
Description
Helix high-End -tasoinen 4-kanavainen vahvistin, aktiivi jakosuotimella.
- AB-luokan vahvistin, jossa loistava äänenlaatu ja huippulaatuiset komponentit.
- 4×70 W @4 Ohm, 4×125 W @2 Ohm RMS
- 2×250 W @ 4 Ohm RMS
- 2 Ohm stereo / 4 ohm mono
- toistoalue: 20 – 20 000 Hz
- ylipäästösuodin 15-4000 Hz
- alipäästösuodin 15-4000 Hz
- kaistanpäästösuodin 15-4000 Hz
Specifications
Technical data:
Output power RMS ≤ 1% THD+N
- @ 4 Ohms 4 x 70 Watts
- @ 2 Ohms 4 x 125 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 2 x 250 Watts
- bridged @ 2 Ohms -
Amplifier technology Class AB
Inputs 4 x RCA / Cinch
1 x Remote In
Input sensitivity RCA / Cinch 0.7 - 8 Volts
Input impedance RCA / Cinch 10 kOhms
Input impedance highlevel -
Outputs 4 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input -
Frequency response 20 Hz - 20,000 Hz
Bass boost -
Highpass 15 Hz - 4,000 Hz adjustable
Lowpass 15 Hz - 4,000 Hz adjustable
Bandpass 15 Hz - 4,000 Hz adjustable
Subsonic -
Phase -
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 110 dB (A-weighted)
Distortion (THD) 0.009 %
Damping factor 300
Operating voltage 9 - 16 Volts
Idle current 2200 mA
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Active, adjustable crossover, input mode switch, Colour Protection System
Dimensions (H x W x D) 31.5 x 200 x 336 mm /
1.24 x 7.87 x 13.23”
Scope of delivery
1 x Amplifier HELIX H 400X
2 x Allen key
1 x Mounting material
1 x Instruction manual
