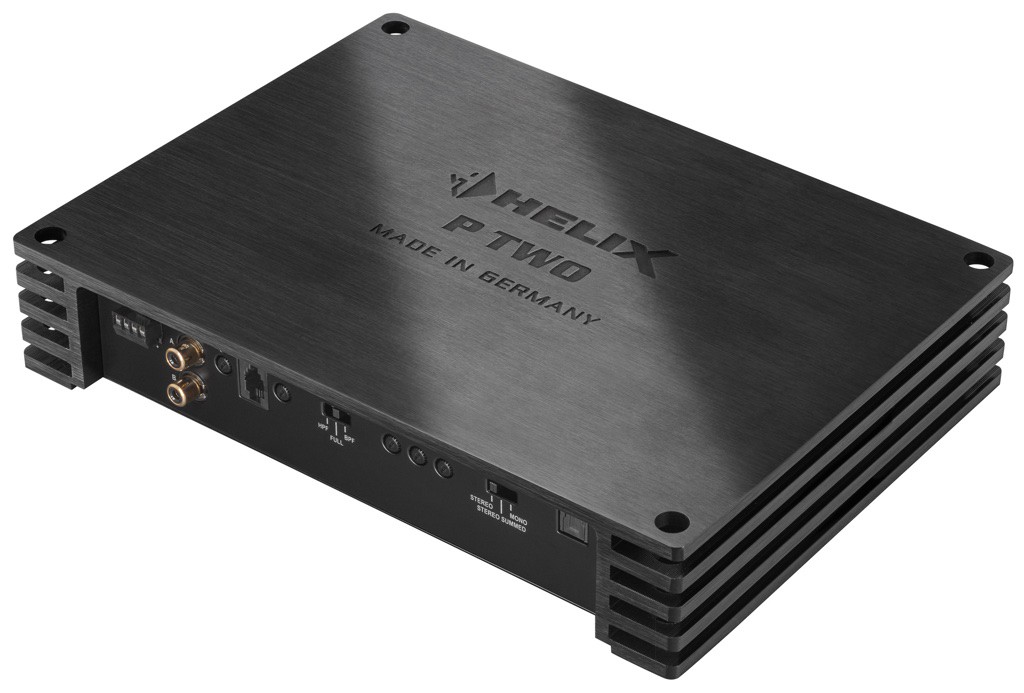

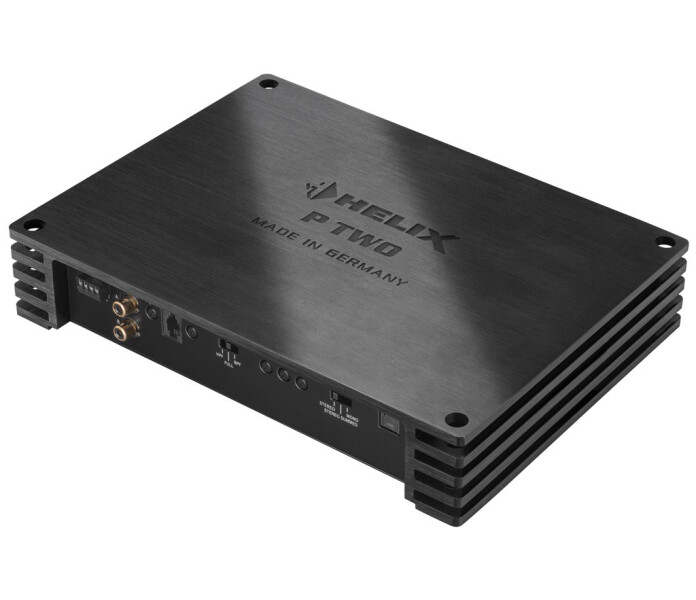

Helix P TWO
EAN: 4057204310745
P TWO
Helix 2-kanavainen vahvistin
Read more
1 pcs
Description
Specifications
Description
Tämä hifistynyt vahvistin on erittäin kompaktin kokoinen. Silti se antaa todellista jatkuvaa tehoa kahden ohmin kuormaan 2x490 wattia. Ultra HD D-luokan vahvistin jonka taajuusvaste ulottuu aina 40 kilohertsiin saakka. Erittäin korkea vaimennuskerroin ja pieni särö. Signaali-kohinasuhde on erinomainen. Huikea laite soittamaan subwooferia tai järeää etupäätä.
Specifications
Output power RMS / max.
- @ 4 Ohms2 x 280 / 560 Watts
- @ 2 Ohms2 x 490 / 980 Watts
Amplifier technologyUltra HD Class D

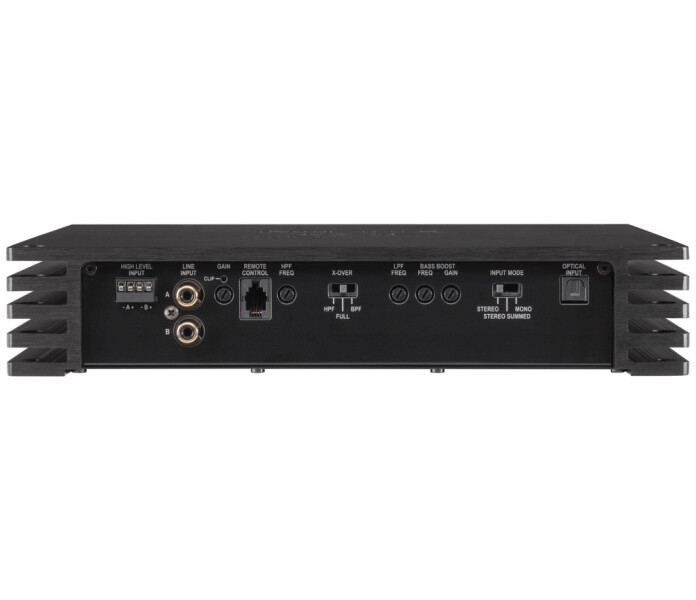

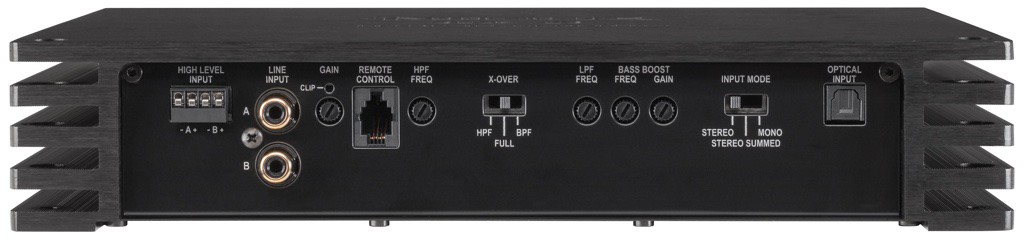

Inputs2 x RCA / Cinch
2 x Highlevel speaker input
1 x Optical SPDIF (28 - 96 kHz)
1 x Remote In
1 x Remote control input
Input sensitivityRCA / Cinch 2 - 8 Volts
Highlevel 5 - 20 Volts
Input impedance RCA / Cinch10 kOhms
Input impedance highlevel13 Ohms

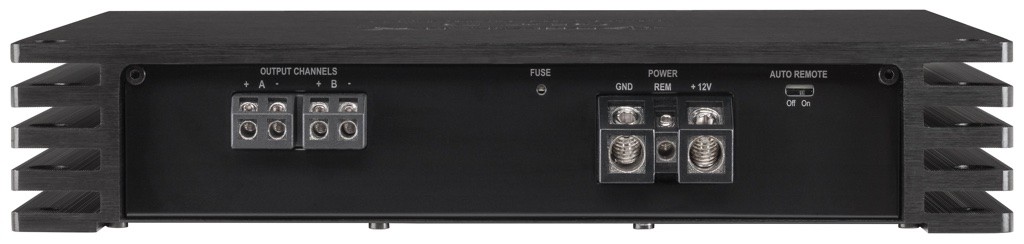

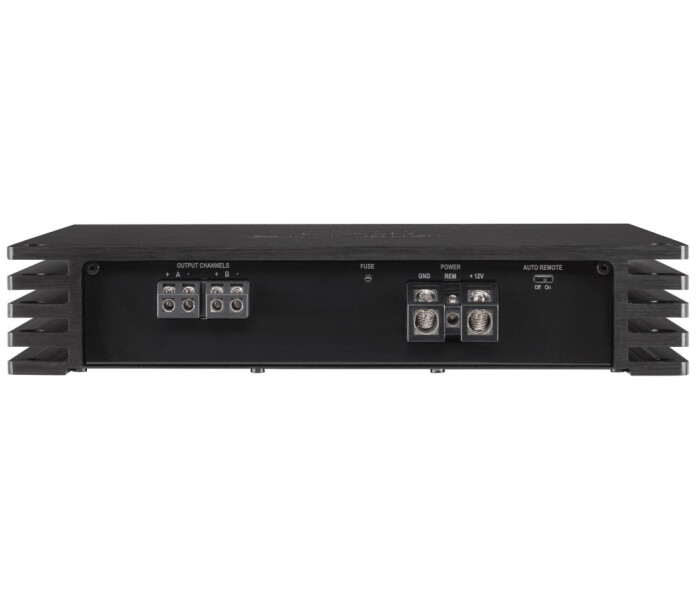

Outputs2 x Speaker output
Signal converter for digital inputBurrBrown 32 Bit DA converter
Frequency response10 Hz - 40,000 Hz
Bass boost0 - 9 dB / 40 Hz - 120 Hz
Highpass15 Hz - 4,000 Hz
Lowpass15 Hz - 4,000 Hz
Bandpass15 Hz - 4,000 Hz
Subsonic-
Phase-
Slope high- / lowpassButterworth 12 dB/Oct.
Signal-to-noise ratio digital input105 dB (A-weighted)
Signal-to-noise ratio analog input105 dB (A-weighted)
Distortion (THD) 0.005 %
Damping factor 200
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current2400 mA
Fuse3 x 30 A LP-Mini-fuse (APS)
Additional features: Active, adjustable crossover, bass boost, input mode switch, highlevel input with Advanced Diagnostics Error Protection (ADEP), Auto Remote switch, SPDIF Direct In switch, cable remote control for volume adjustment
Dimensions (H x W x D)50 x 260 x 190 mm.
