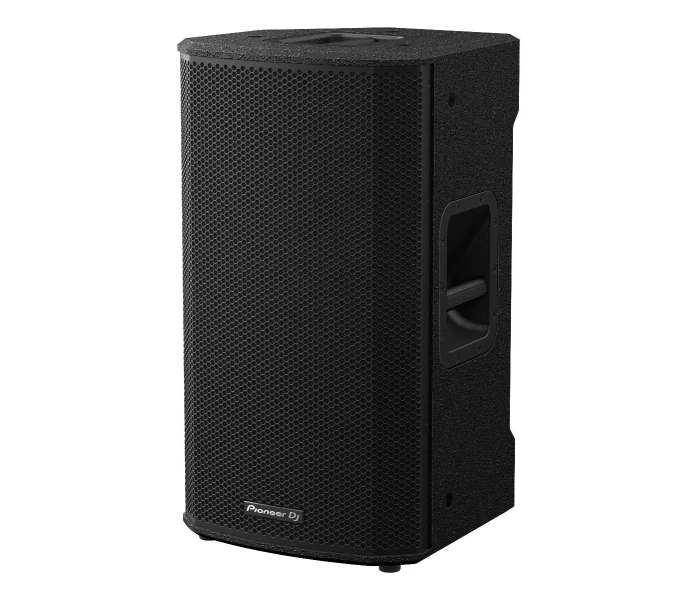

Pioneer DJ - XPRS122 12 inch Active loudspeaker with DSP controls
DSP
12” woofer
1.75″ tweeter
2000W amplifier
Description

The XPRS2 Speaker Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-calibre speaker system for a variety of users. It includes four active loudspeakers and two active subwoofers, one of which being the XPRS212 12″ full range active speaker.
The XPRS122 is a full-range speaker featuring class D 2000 W amplification for a powerful and premier audio experience. This speaker series is ideal for anyone who needs a versatile, robust, and high-quality sound system. It’s perfect for mobile DJs, live sound, houses of worship, and rental and fixed installations, among many other users and settings.
The XPRS122 features a 12” woofer and 3” voice coil with a 1” exit compression driver and 1.75” voice coil, boasting a frequency response of 48 Hz–20 kHz and a maximum SPL of 131 dB.
All the XPRS2 full-range speakers contain four different DSP preset modes – Live, Music, Speech, and Floor Monitor – to address the needs of different listening environments. In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes – which can be saved with different names – to ensure the EQ settings are maximized for every scenario.
Specifications

System Type: Multi-purpose, 2-way active loudspeaker with DSP controls.
Transducer Low: 12” woofer, 3” voice coil.
Transducer Driver: 1” exit compression driver, 1.75” voice coil.
Frequency Response: (-6 dB): 48 Hz – 20 kHz.
Max SPL: 131 dB.
Power Rating: Class D 2000 W (peak).
4 DSP Modes: Live / Music / Speech / Monitor.
16 Customizable User DSP Modes.
Electronic Protection: Thermal / Overload / Digital Limiter / Compressor.

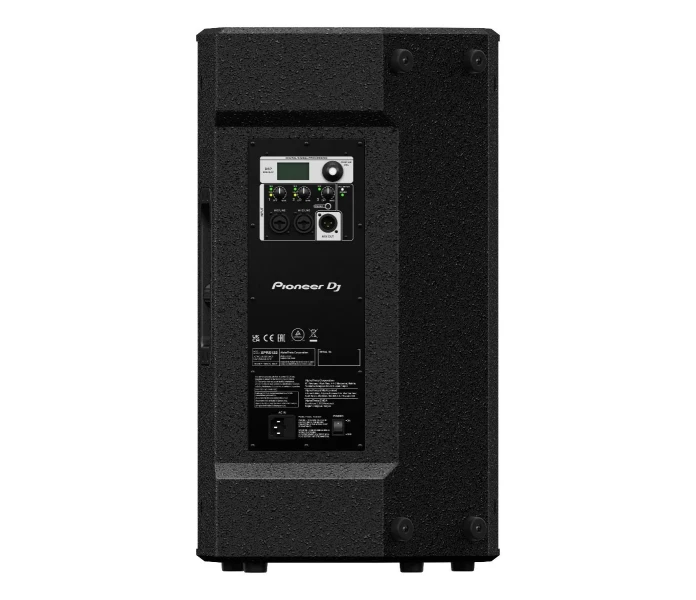

Connectors Input: MIC / LINE (Combo) / HI-Z / LINE (Combo) / 3.5 mm STEREO MINI Output: MIX (XLR).
Power Supply: 110 V – 240 V (50 Hz / 60 Hz).
Power Consumption: 800 W.
Enclosure Construction: Plywood cabinet, black paint, rubber feet, metal handle.
Mounting: One standard metal pole-mount. 10 x M10 threaded inserts plus integrated pull-back cover.
Dimensions: (W x H x D) 14.28” (362.7 mm) x 25.07” (637 mm) x 13.78” (350mm).
Net Weight: 20.2 kg (44.6 lb).
