Pioneer DJ - TAS-1 analoginen syntetisaattori
Description
TAS-1 on täysin ohjelmoitava, aito analoginen syntetisaattori, jonka moottori ja seitsemän sisäänrakennettua efektiä on lainattu suoraan Dave Smithin kehittämästä. Prophet-6 syntetisaattorista. AS-1 analoginen syntetisaattori tuo uusia mahdollisuuksia tuoda luovuutesi esille lavalla ja studiossa. Helppokäyttöiset kontrollit kaikille syntetisaattorin parametreille, joilla säädät äänen juuri sellaiseksi kuin itse tahdot. Kosketuslevy tyyppinen koskettimisto ja äänimodulaatiopadi äänenmanipulaatioon.
Specifications
Sound GenerationAnalog synthesis
Programs
99 programmes x 10 banks (5 factory banks, 5 user banks)
* Each program includes its own sequence pattern
* Able to set up to 13 favourite programmes can be registered
Width267.4 mm
Height68.6 mm
Depth177.7 mm
Weight1.4 kg
Power SupplyAC adaptor DC 5 V
Power Consumption1500 mA
Included Accessories
AC adaptor
Power cord
Quick Start Guide
warranty
Synthesis Parameters
Oscillator 1
Frequency
Pulse Width
Sync (Off, On)
Oscillator 1 Waveshapes (continuously variable)
Triangle
Sawtooth
Variable-width Pulse
Oscillator 2
Frequency
Fine
Pulse Width
Key Follow (Off, On)
Low Frequency (Off, On)
Oscillator 2 Waveshapes (continuously variable)
Triangle
Sawtooth
Variable-width Pulse
OscillatorsSlop
Mixer
Oscillator 1 Level
Oscillator 2 Level
Sub Level
Noise Level
Low-pass Filter
Cutoff
Resonance
Key Amount (Off, Half, Full)
Velocity (Off, On)
High-pass Filter
Cutoff
Resonance
Key Amount (Off, Half, Full)
Velocity (Off, On)
Filter Envelope
Low-pass Filter Amount
High-pass Filter Amount
Attack
Decay
Sustain
Release
AMP Envelope
Amount
Velocity (Off, On)
Attack
Decay
Sustain
Release
Glide
Rate
Off, On
Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)
LFO
Frequency
Sync (Off, On)
Initial Amount
LFO Shapes
Triangle
Reverse Sawtooth
Sawtooth
Square
Random
LFO Destination
Oscillator 1 Frequency
Oscillator 2 Frequency
Oscillator 1 and 2 Pulse Width
Low-pass Filter Cutoff
High-pass Filter Cutoff
VCA
Modulation Source
Filter Envelope
Oscillator 2 Amount
Modulation Destination
Oscillator 1 Frequency
Oscillator 1 Shape
Oscillator 1 Pulse Width
Low-pass Filter Cutoff
High-pass Filter Cutoff
Effects
FX 1 Types
Bucket-brigade Delay
Distortion
Ring Modulation
FX 2 Types
Chorus
Low Resonance Phaser
High Resonance Phaser
Maestro Phaser
ParametersEach effect has 2 adjustable parameters
Sequencer
Step LengthUp to 64 steps
Parameters
Key, Velocity, Slew (Off, On) for each step
BPM (shared with arpeggiator)
Time Divide (shared with arpeggiator)
Arpeggiator
Mode
Up
Down
Up + Down
Random
Assign
Range1 ~ 3 octaves
Parameters
BPM (shared with sequencer)
Time Divide (shared with sequencer)
Performance Controls
Keyboard
13-key touch keyboard
22 preset scales
9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters)
Slider Parameters (multi assignable)
Oscillator 1 Frequency
Oscillator 2 Frequency
Low-pass Filter Amount
High-pass Filter Amount
LFO Amount
FX 1 Mix
FX 2 Mix
OLED DisplayAble to access all parameters
MIDI Controllable Parameters
AftertouchAmount
Aftertouch Destination
Oscillator 1 Frequency
Oscillator 2 Frequency
Low-pass Filter Cutoff
High-pass Filter Cutoff
VCA
LFO Amount
Pitch Bend RangeUp to -/+ 12 semitones
Miscellaneous
Key Mode
Low
High
Last
Low Retrigger
High Retrigger
Last Retrigger
Alternative Tuning17 preset tunings

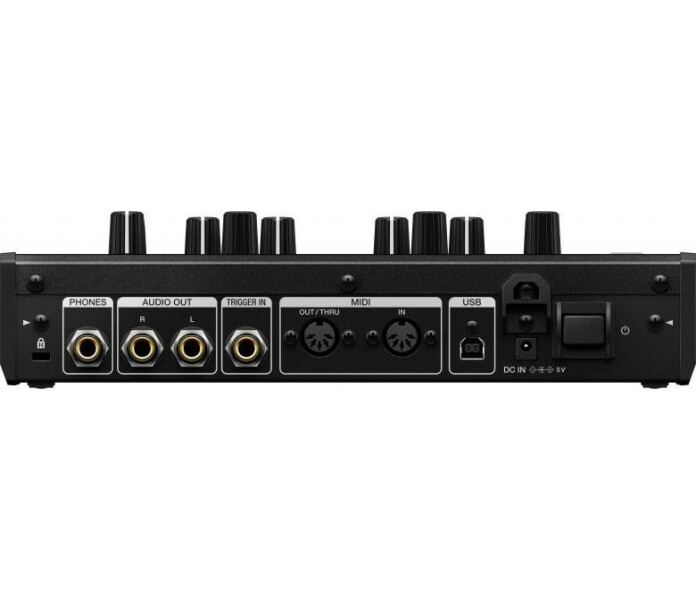

Terminals
Outputs
1 AUDIO OUT L/R (1/4 inch TS Jacks)
1 PHONES (1/4 inch stereo phone Jack)
MIDI
1 MIDI IN (5P DIN)
1 MIDI OUT/THRU (5P DIN)
USB1 USB B port
Others1 TRIGGER IN (1/4 inch TS jack)
Trigger Input
Able to connect a general foot switch or input audio signals
Able to set the operation from 4 types:
Pedal
Trigger
Gate
Trigger-Gate.
