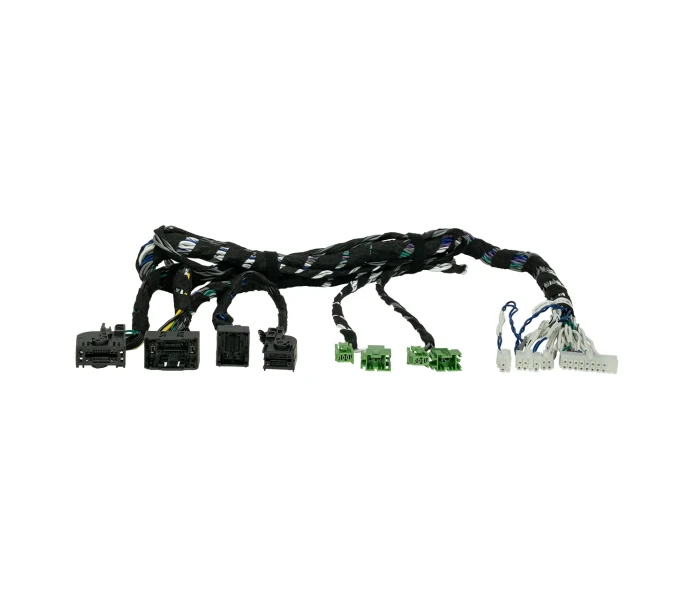

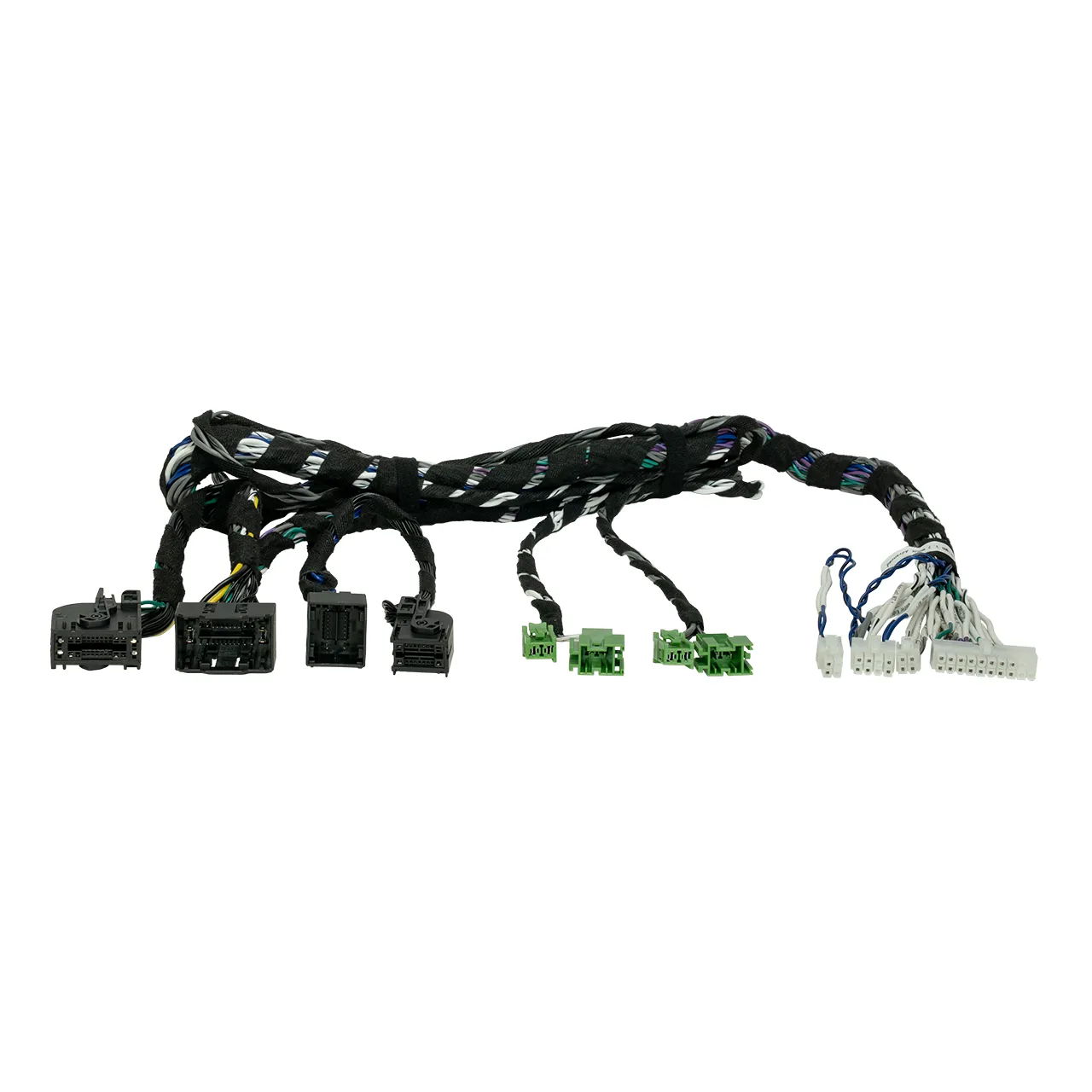

MATCH PP-MB 1.7MBUX Advanced

Technical data

Cable length

1.00 meter

Connections

1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 8DSP

1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - F of the UP 8DSP

1 x 8-pole MOLEX plug for the connection of speaker outputs E - H of the UP 8DSP

1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module

1 x 38-pole Mercedes system jack

1 x 38-pole Mercedes system plug

Compatibility
For connection of the MATCH UP 8DSP with ANALOG IN Extension Card
Suitable for Mercedes vehicles with factory installed Advanced sound systems and Mercedes-Benz User Experience (MBUX)
Further information about the vehicle compatibility can be found in our Connection Finder

Scope of delivery
1 x Plug & Play cable harness PP-MB 1.7MBUX Advanced
