BASSKIT AI 10SQ
Description

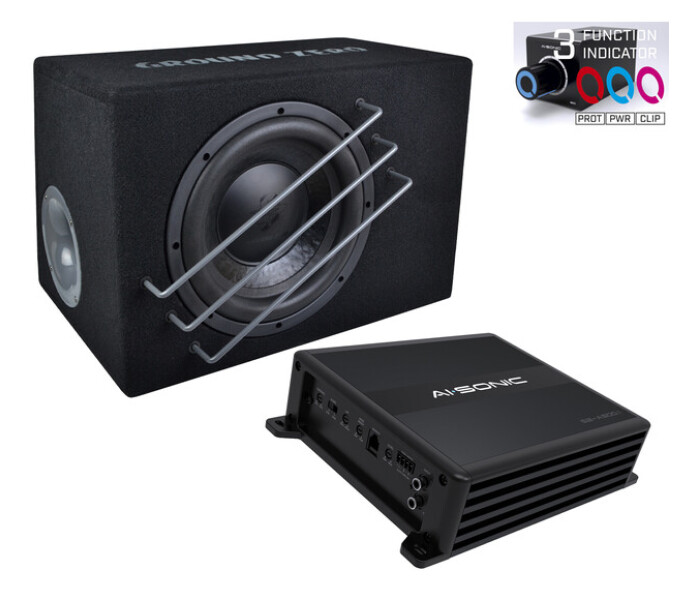

This kit includes Passive vented enclosure including 10″ GZUW 10SQ-D2 subwoofer. AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.)
Specifications
RMS POWER (1ohm) 12v THD 0.5% 500W
RMS POWER (2ohm) 12v THD 0.5% 350W
RMS POWER (4ohm) 12v THD 0.5% 220W
T.H.D 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB/24dB /oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: 30A•2
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 57A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
L: 274mm / (10.8 IN)

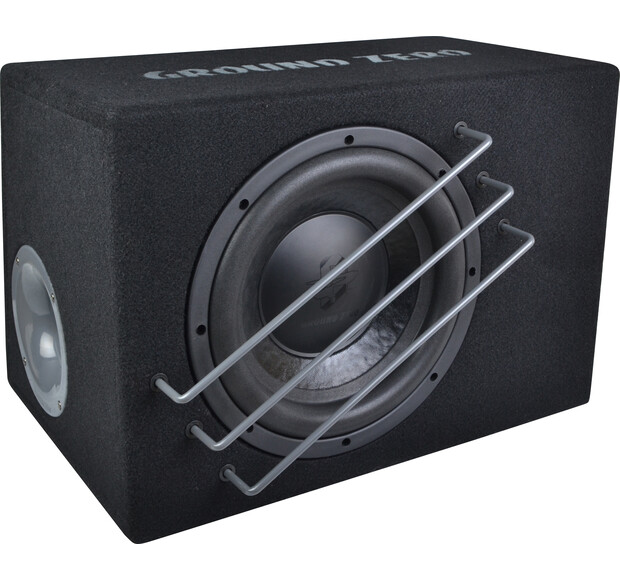

10″ vented SQ loaded enclosure
Subwoofer GZUW 10SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 450 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
Net volume 30 Liter
Tuning frequenzy 32 Hz
Roll-off frequenzy 32 Hz
Ventilation port 1x7cm
Port lenght 34cm
Dimensions (w x h x d) 460 x 320 x 327mm
Backwall angle 77°.
