Brax Matrix ML8 MID

EAN: 4057204131401
ML 8 MID

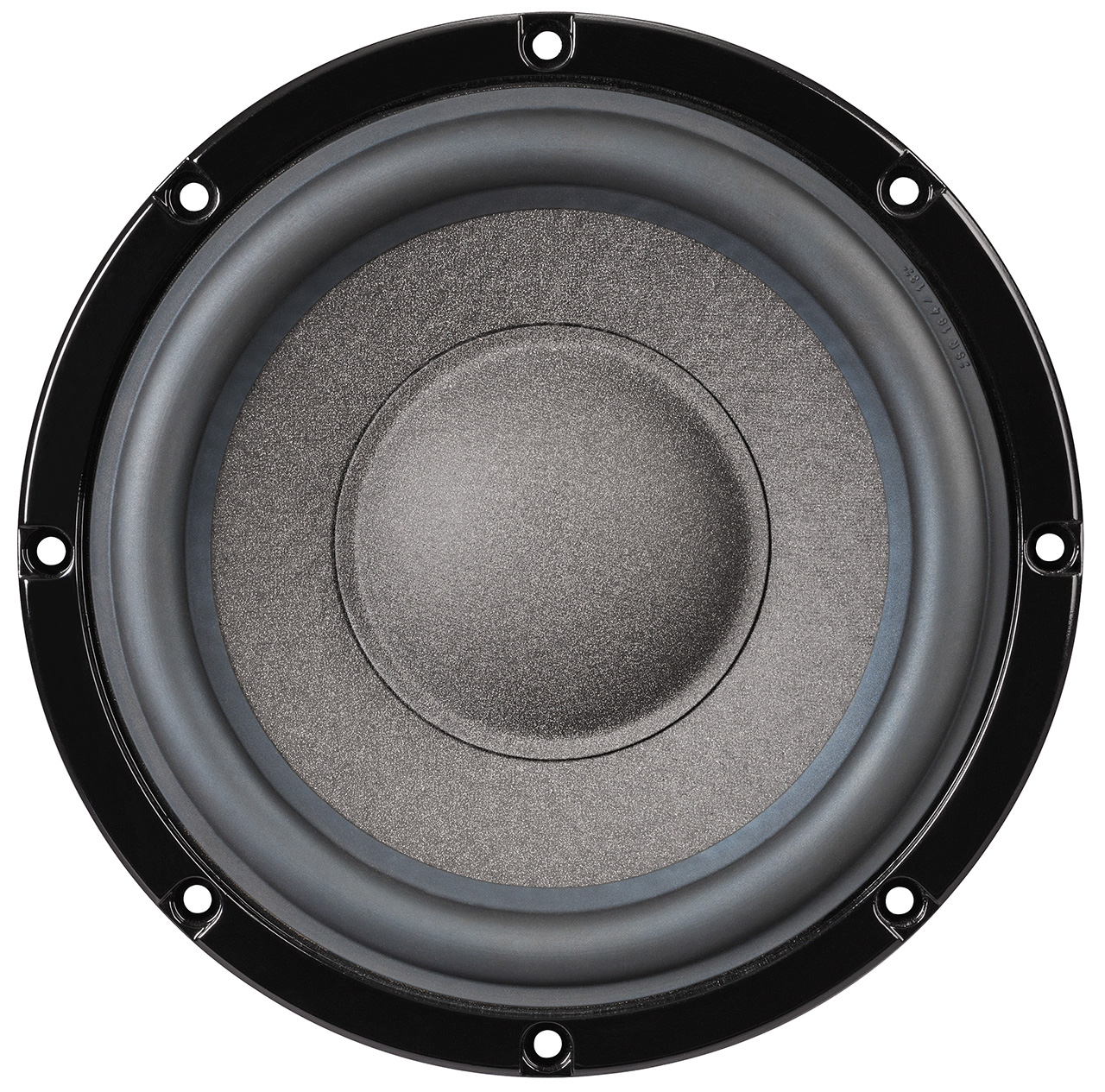

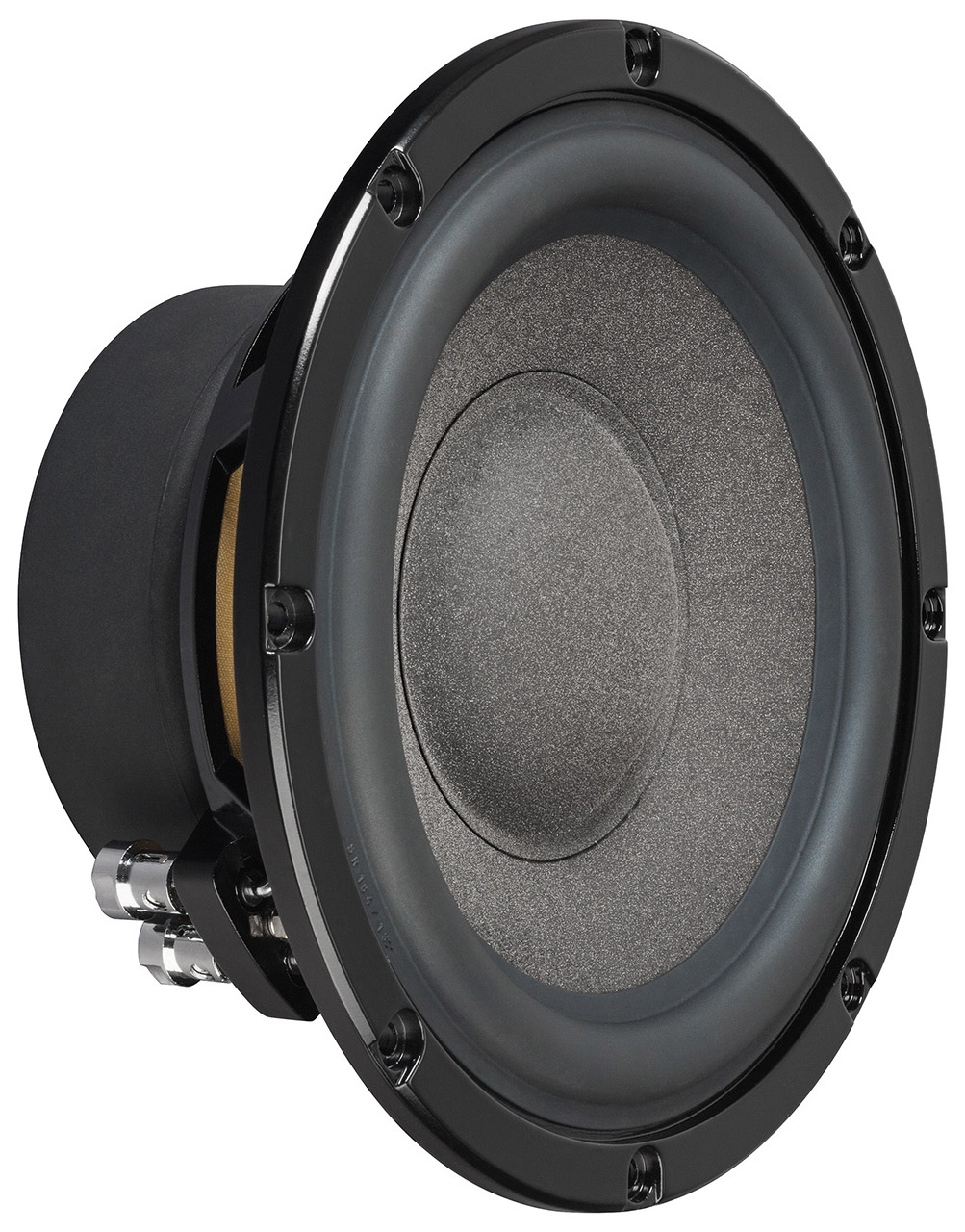

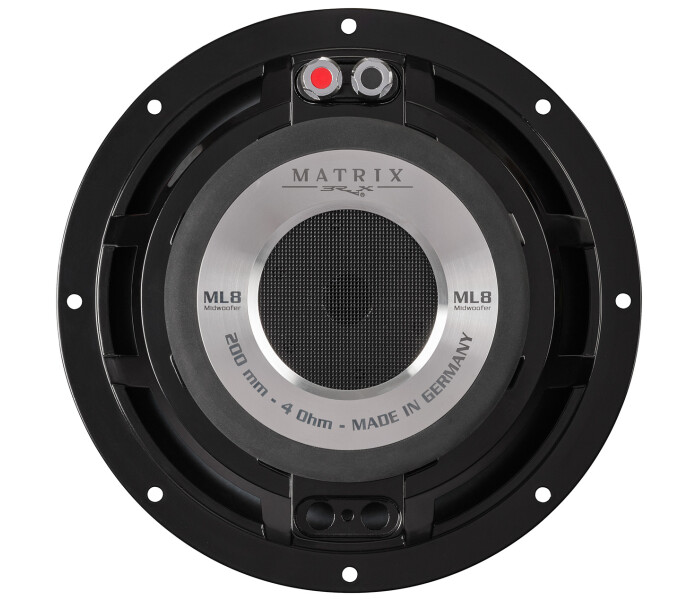

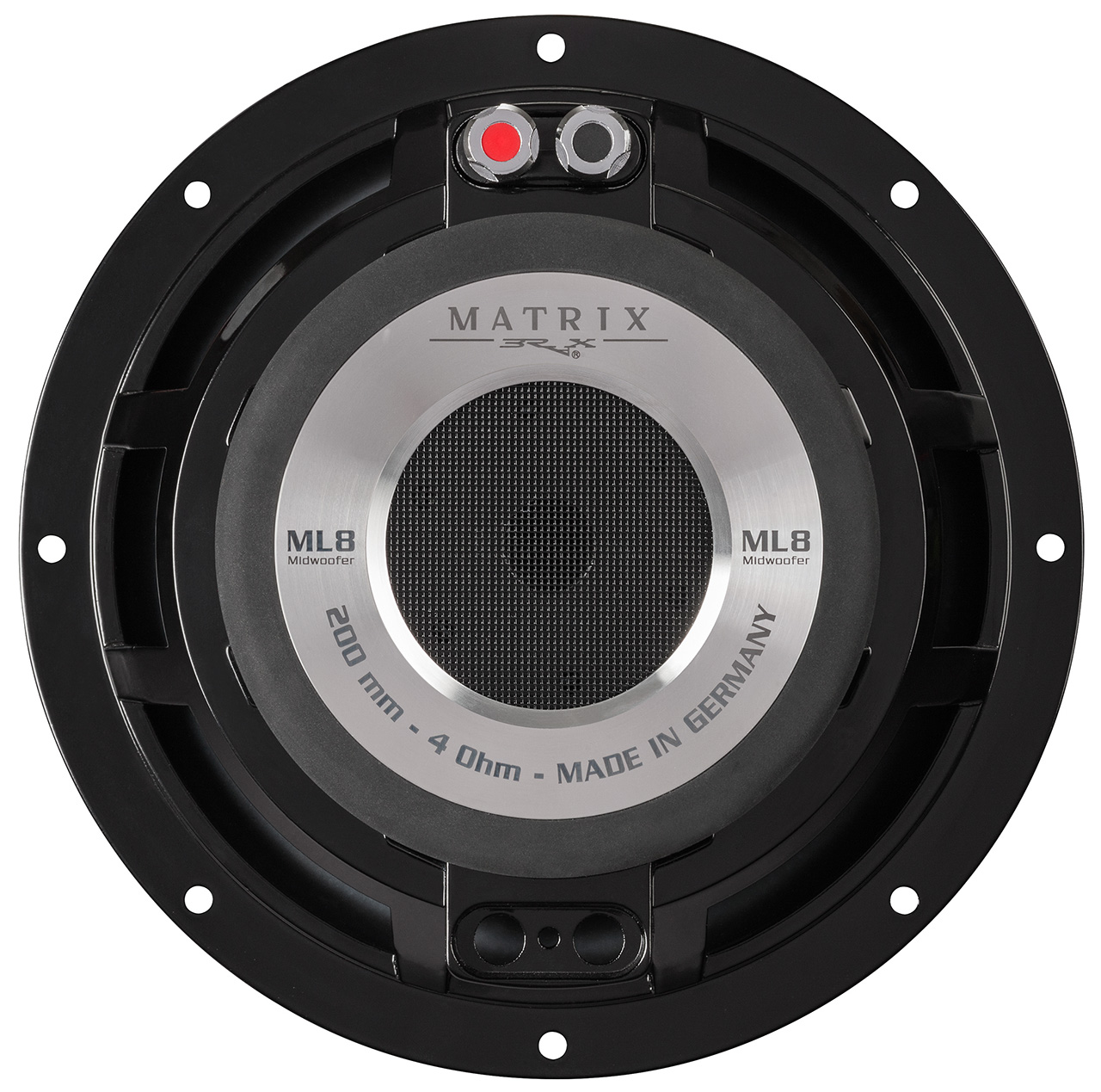

Brax Matrix 200 mm / 8″ High-End midwoofer.
Read more
pair
Description
Specifications

Description

Since years our BRAX subwoofer sets the benchmark for precise and controlled bass response. This fact made it even more ambitious to further optimize such a perfect product. But BRAX wouldn’t be BRAX if we aren’t able to identify every single detail that improves the sound quality. In case of the ML10 the secret lies in the unique cone or - to be more precise - in its totally new ″MicroSphere″ coating. This patented technology embeds ceramic hollow spheres with a diameter of solely 75 µm in a polyamide layer that is applied to the cone. That special coating not only improves the stiffness of the hand-scooped cone but its inner damping as well. These stabilizing measures do not necessarily lead to an increased moving mass. Quite the contrary – in comparison with its predecessor the cone mass has been reduced which results in a lower total Q factor and therefore even better impulse response. The pure design and the other technical features of this exceptional subwoofer are almost legendary. The perfectly linear magnet structure for lowest possible distortion, the large and multiple ventilated voice-coil for outstanding electrical power handling as well as the rigid and aerodynamically efficient diecast basket add up to an unprecedented overall concept for the most accurate and uncompromising bass response. Therefore the new BRAX MATRIX ML10 is more than ever a must-have for every sound enthusiast who only settles for the best.

Specifications

RMS power handling: 200 Watts
Max. power handling: 400 Watts
Impedance: 4 Ohms
Resonance frequency: 45 Hz
Sensitivity: SPL 89 dB
Voice coil diameter: 37 mm
VAS: 24 Liter
Mechanical Q factor: 12,14
Electrical Q factor: 0.61
Total Q factor: 0.58
Installation diameter / depth: 191 mm / 92 mm
Made in Germany.
