CFMK165 REN.1 -Renault

EAN: 4057204354626
CFMK165 REN.1
FlexMount165 adapters for COMPOSE series 6,5″ midbass.
Read more
pair
Description
Specifications

Description

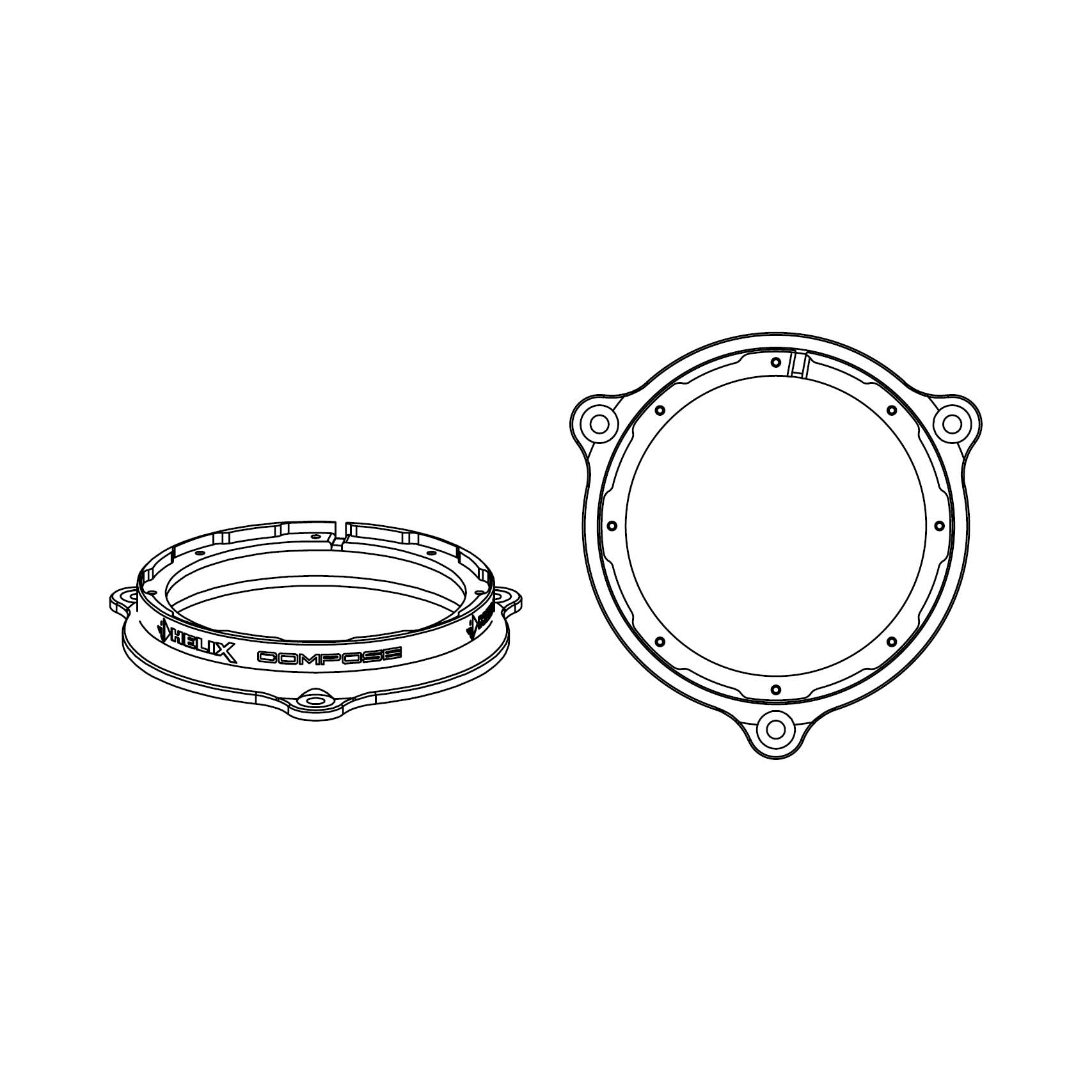

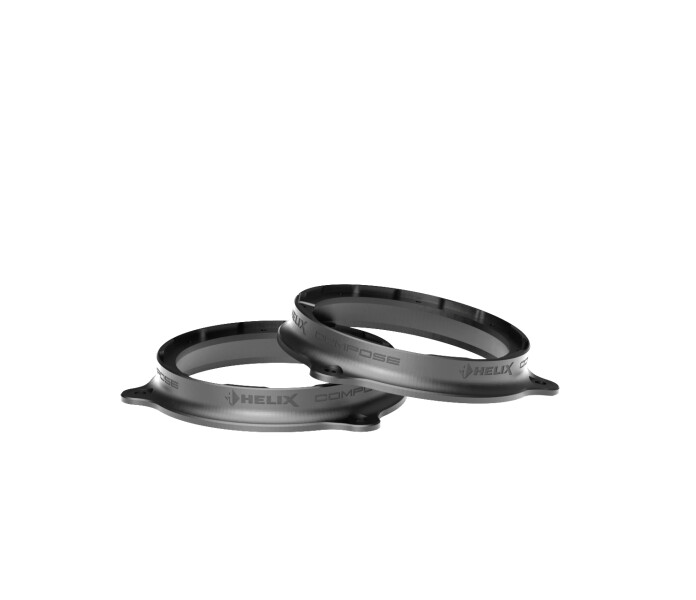

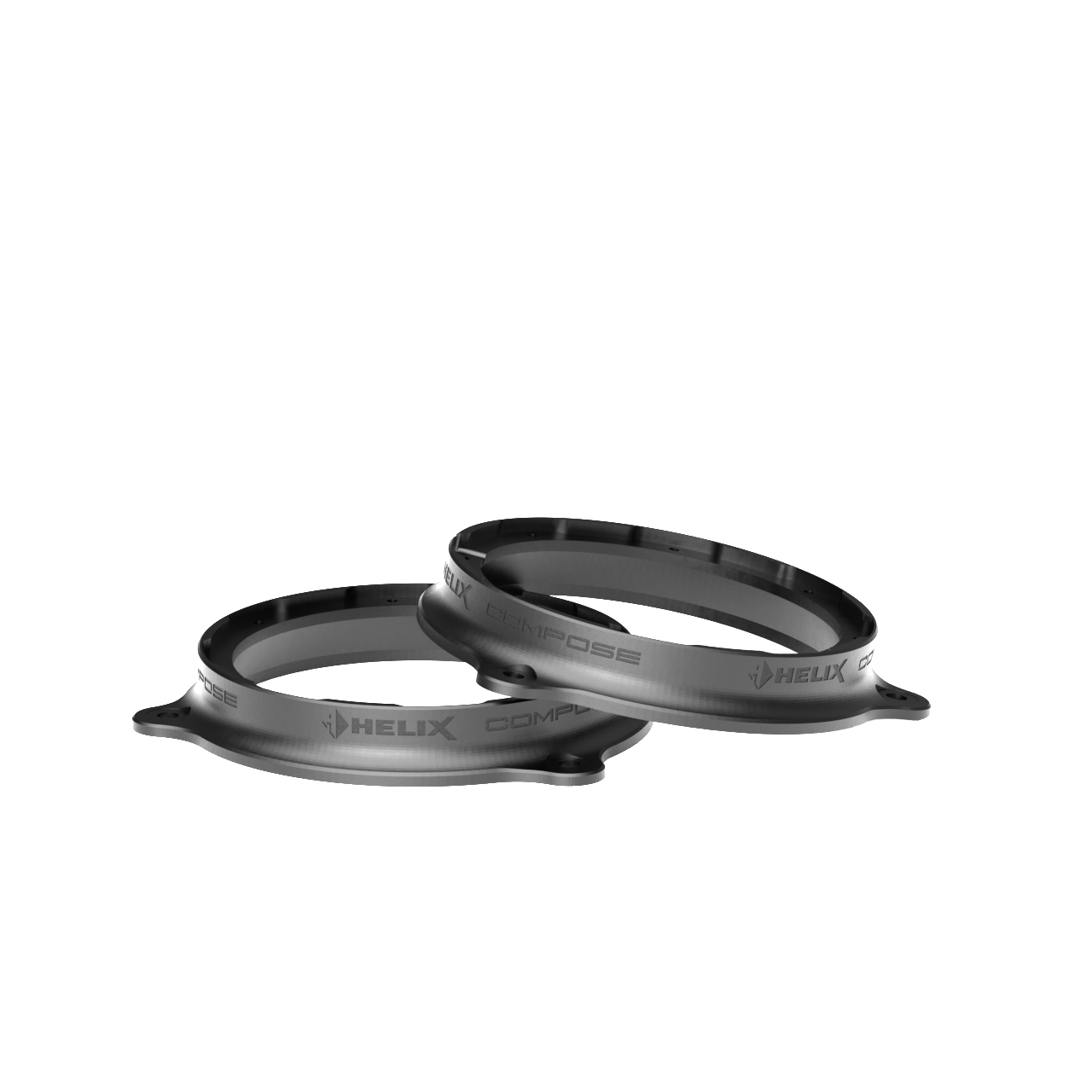

HELIX CFMK165 REN.1 (FDM)
FlexMount is our proprietary mounting system, based on specially developed adaptor rings.
These turn your universal 6.5″ / 165 mm HELIX COMPOSE midbass with FlexMount165 technology into a car-specific speaker, allowing an easy and acoustically optimized installation in the original mounting position of the vehicle.

The adaptors are manufactured in-house using state-of-the-art FDM 3D printing process. The special material used is perfectly adapted to automotive applications and is characterized in particular by its extremely high strength and rigidity. Due to the special material properties, our FlexMount adaptors are extremely resistant to weathering, UV radiation, oils and greases. In addition, it covers the extremely wide automotive temperature range from -40° C to over + 90° C, which guarantees durability and dimensional stability even under the most difficult conditions.

Features
Vehicle-specific adapter ring for a professional and acoustically optimized integration of the 6.5” / 165 mm HELIX COMPOSE midbass with FlexMount165 technology in the original mounting location of the vehicle
Easy installation and secure fixation due to torsion-resistant adaptor ring
Complex construction for high stability, durability and optimized acoustic characteristics
Including gaskets to prevent acoustic short circuits and the ingress of moisture
In-house production using state-of-the-art FDM 3D printing process
Made in Germany
Compatibility
Speaker:

Ci7 W165FM-S3
Ci3 W165FM-S3
Ci3 W165FM-S2
Ci3 K165.2FM-S3
Ci3 K165.2FM-S2
Ci3 C165.2FM-S3

Car models:

Suitable for Renault vehicles with factory installed woofer
Further information about the vehicle compatibility can be found in our FlexMount Finder

Specifications

Compatibility

Speaker:

Ci7 W165FM-S3
Ci3 W165FM-S3
Ci3 W165FM-S2
Ci3 K165.2FM-S3
Ci3 K165.2FM-S2
Ci3 C165.2FM-S3

Car models:

Renault Captur 04/2013 -- m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Renault Kadjar 06/2015 -- m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Renault Laguna III (Typ T) 10/2007 - 09/2015 m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Renault Master III 01/2010 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Renault Megane Scenic IV 11/2016 -- m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Renault Trafic III 09/2014 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Dokker (mk1 SD) 12/2012 - 03/2017 w/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Dokker (mk2 SD) 03/2017 - 12/2021 w/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Duster (SR) 01/2018 - 07/2021 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Sandero (mk1 SD) 01/2013 - 11/2016 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Sandero (mk2 SD) 11/2016 - 09/2020 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Logan MCV (mk1 SD) 07/2013 - 11/2016 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Dacia Logan MCV (mk2 SD) 11/2016 - 09/2020 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Juke 10/2010 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Micra K12 02/2003 - 12/2010 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Micra K13 12/2010 - 03/2013 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Note E11 01/2005 - 01/2013 m/Standard Soundsystem or Premium Sound System
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan NV200 09/2009 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan NV300 06/2014 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan NV400 01/2010 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Pulsar C13 02/2014 - 02/2018 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Qashqai J10 12/2006 - 11/2013 m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan Qashqai J11 11/2013 -- m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan X-Trail T30 06/2001 - 06/2007 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan X-Trail T31 06/2007 - 07/2014 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Nissan X-Trail T32 07/2014 - 2020 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Opel Vivaro B 07/2014 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Smart Forfour (W453) 02/2014 - 02/2021 m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3

Smart Fortwo (453) 02/2014 -- m/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3


Scope of delivery
2 x FlexMount165 adaptor ring
2 x Speaker gasket
1 x Mounting material
