DD Audio 9515K D1 ESP

DD9515K-D1 ESP

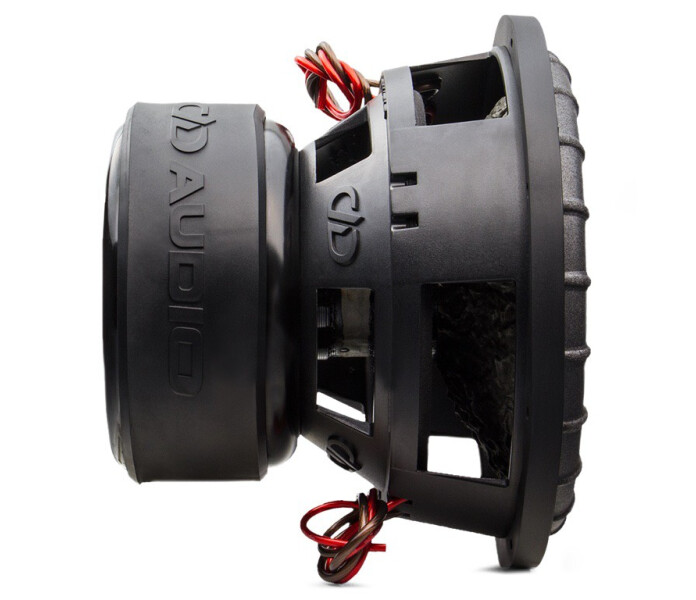

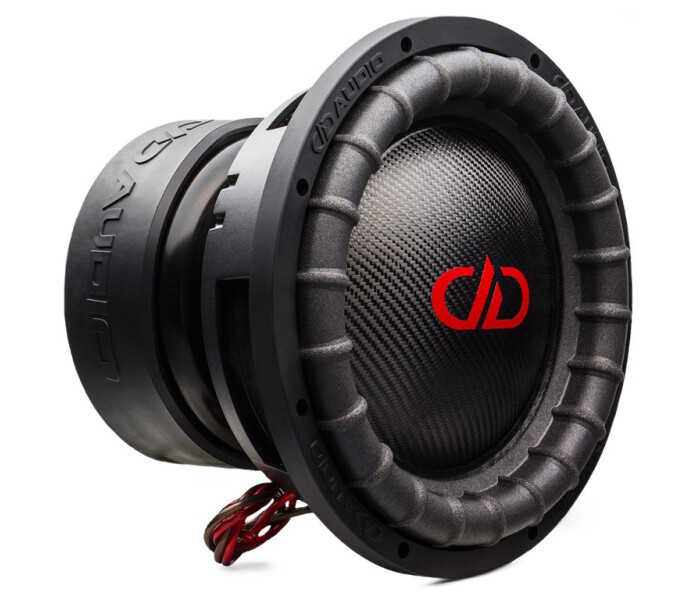

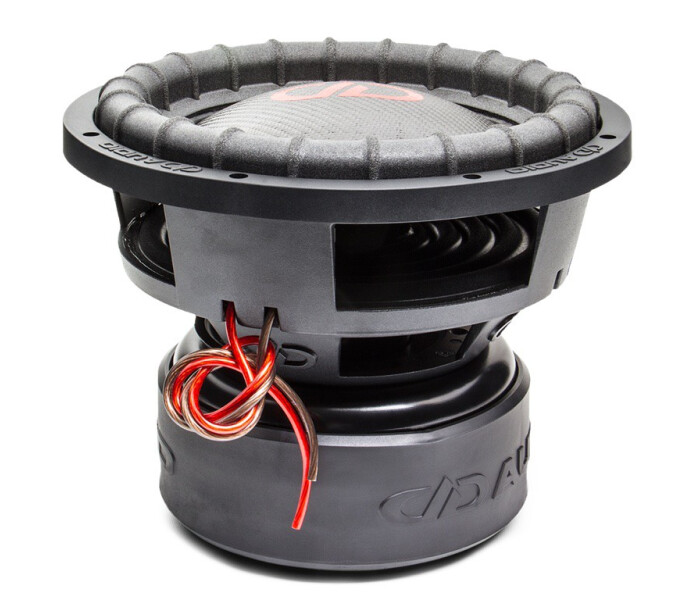

DD Audio 15″ ESP-subwoofer with 3.35″ voice coil
Read more
Description
Specifications

Description

12 inch ESP Subwoofer
Often imitated but never duplicated, the 9500 has long been a staple of our subwoofer line and has been featured in many of the world’s loudest systems. These subs are capable of easily handling 1000-2000 watts of continuous power and bursts as high as 8000 watts. Just as you would expect these bad boys are equipped with all sorts of awesome stuff such as EROM and V-ROM surrounds, Free Flow motor cooling, double slit formers, eight layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, rigid non-pressed cones, and our multi-layer spider system.

The 9500 Series features our Evolution Subwoofer Package (ESP). ESP equipped drivers sport larger diameter suspensions and deeper frames than standard subs and exclusive surround and cone designs. ESP subs are truly built to maximize performance in their designated size class.

The 9500 Series comes standard with an oversized dry finish black composite dust cap, red logo, and treated pulp cone, but it can be optioned out with alternative composite dust caps, composite cones, powder coated frames, supercharging, and a multitude of logo options to give your sub a personalized look and/or added performance for a specific application.

Specifications

-15″ subwoofer
- cast frame
- 2 x 1 ohm voicecoil
- magnet weight 31,7 kg
- 4″ voice coil diameter
- driver displacement: 9.3 liter
- recommended ported enclosure 85-170 liters ( NET )
- power handling 2000 W RMS
- peak power handling 8000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0,666
- Fs: 39,03 Hz
- Vas: 52,97 liters
- mounting depth 264 mm
- cutout diameter 386 mm.
