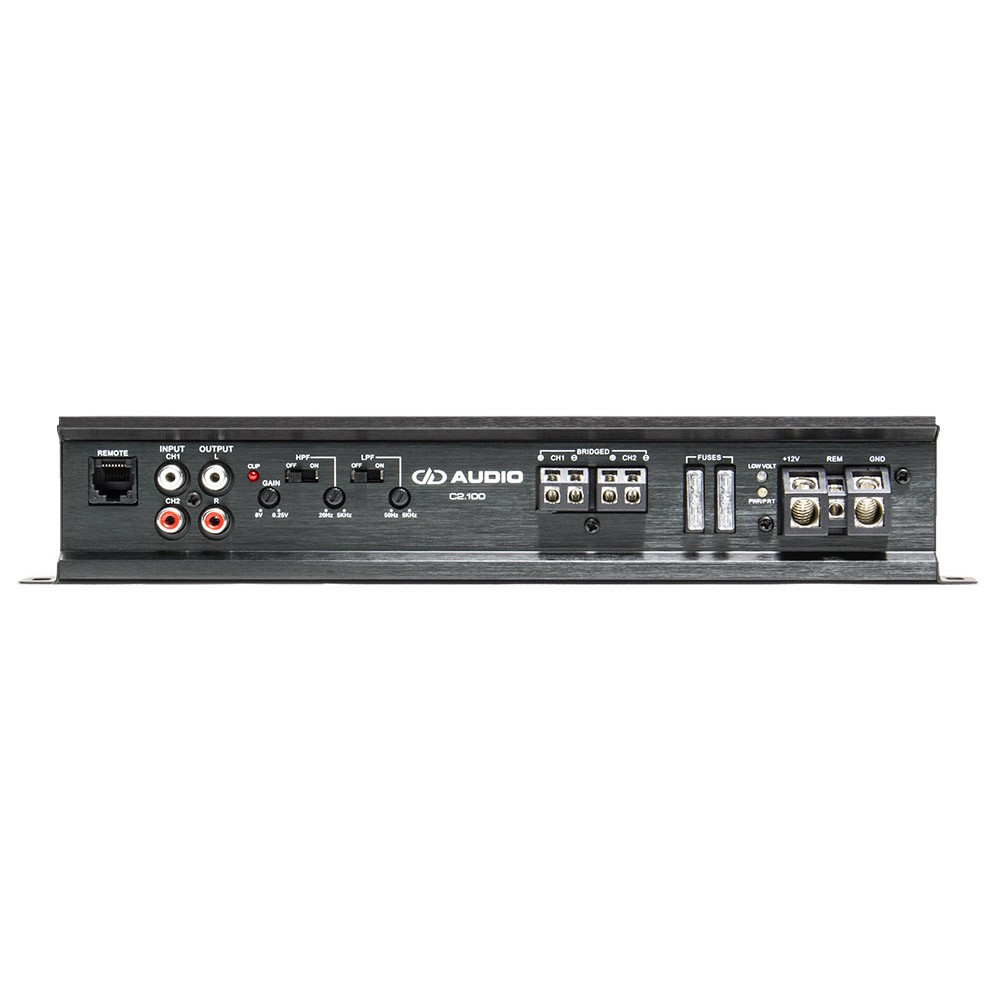

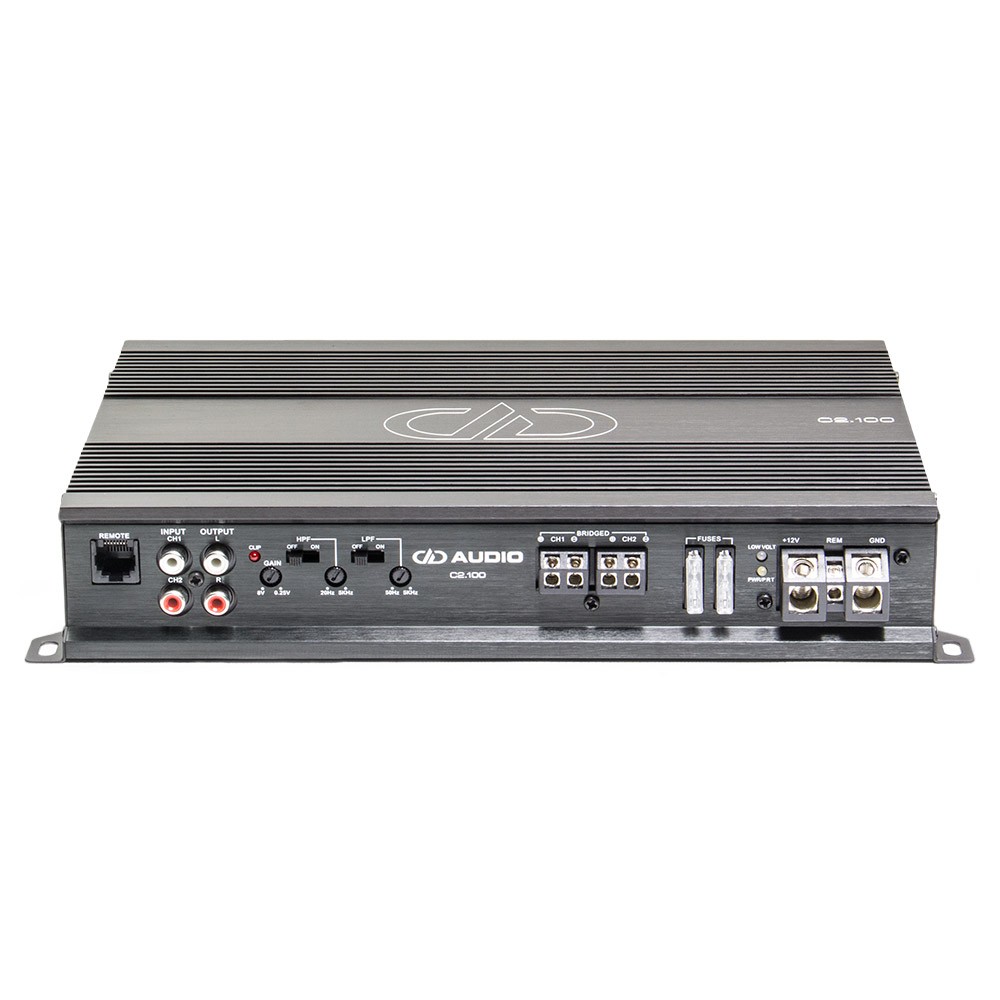

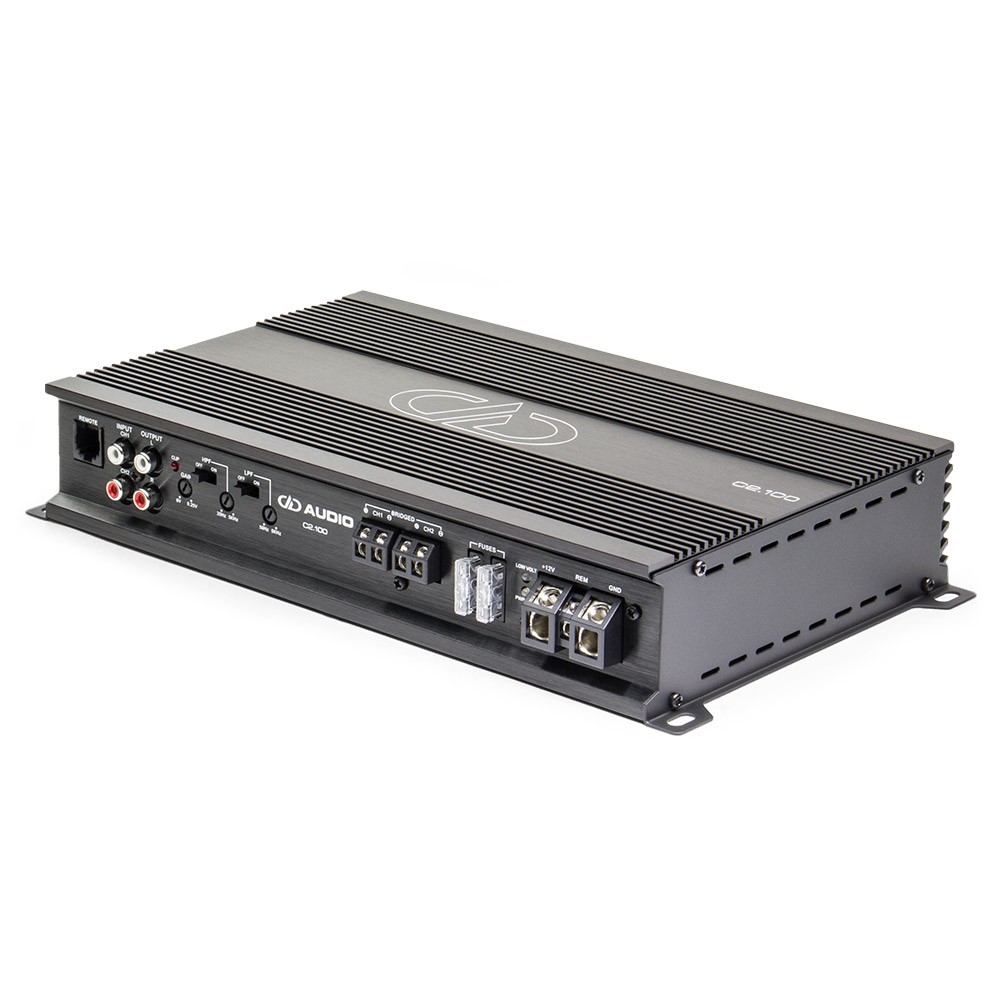

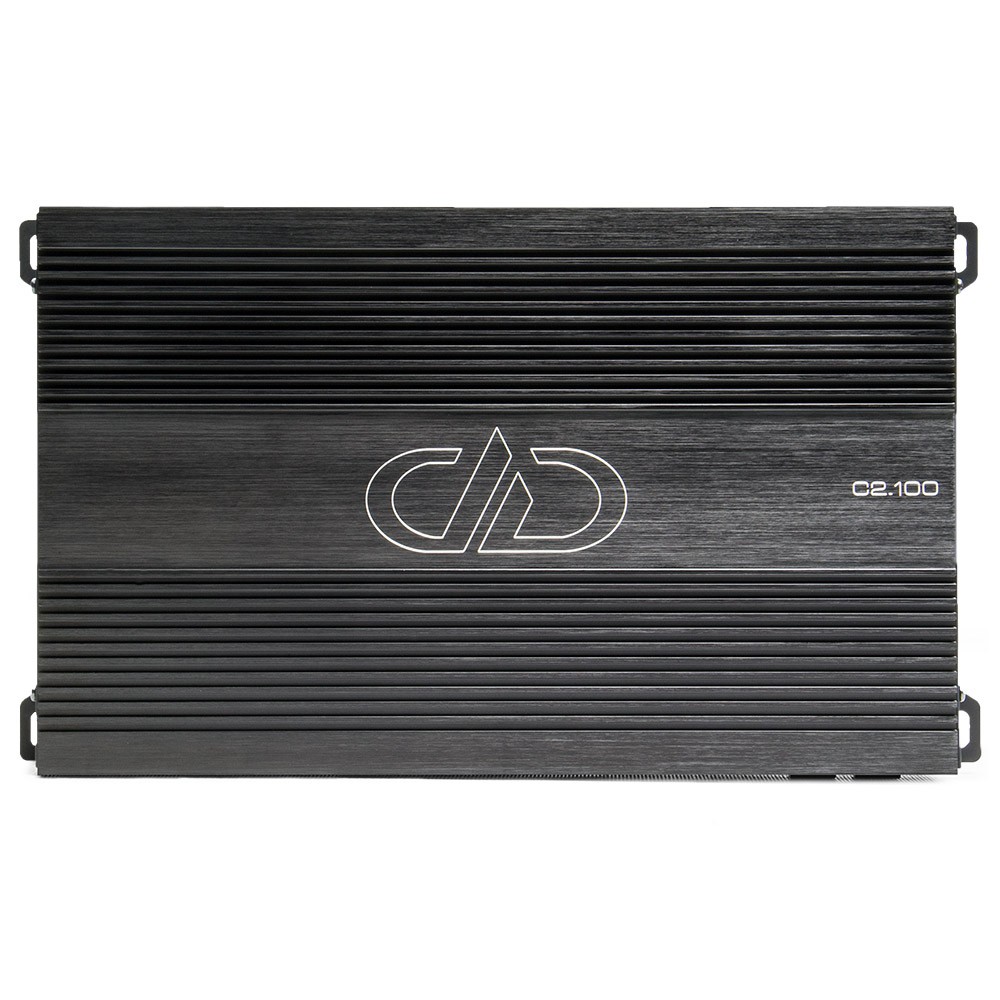

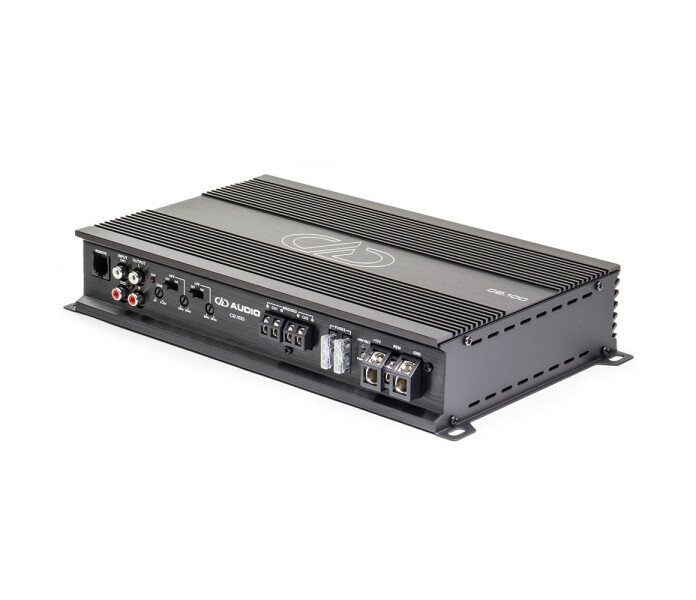

DD Audio C2.100
Description
The C Series Amplifiers offer the warm sound that Class AB amplifiers are known for, along with features such as band-passable crossover networks, high-end output devices, and set screw power and speaker terminals. The chassis design features a single side control panel giving the C Series an elegant aesthetic and makes cable management and audio adjustments easy for quick clean installations. Remote subwoofer control is optional.
Specifications
Output power RMS @ 4ohm100x2 / 350x1
Output power RMS @ 2ohm175x2
Max Current Draw - Amperage40A
S/N Ratio86dB
THD0.18%8V-0.25V
Input Voltage Sensitivity 8V-0.25V
Pass-Through OutputYes
Remote Subwoofer ControlYes, optional
Power terminals wire size 25mmq
Speaker terminals wire size 2,5 mmq
Dimensions: in12x7x2
Dimensions: mm308x175x54.
