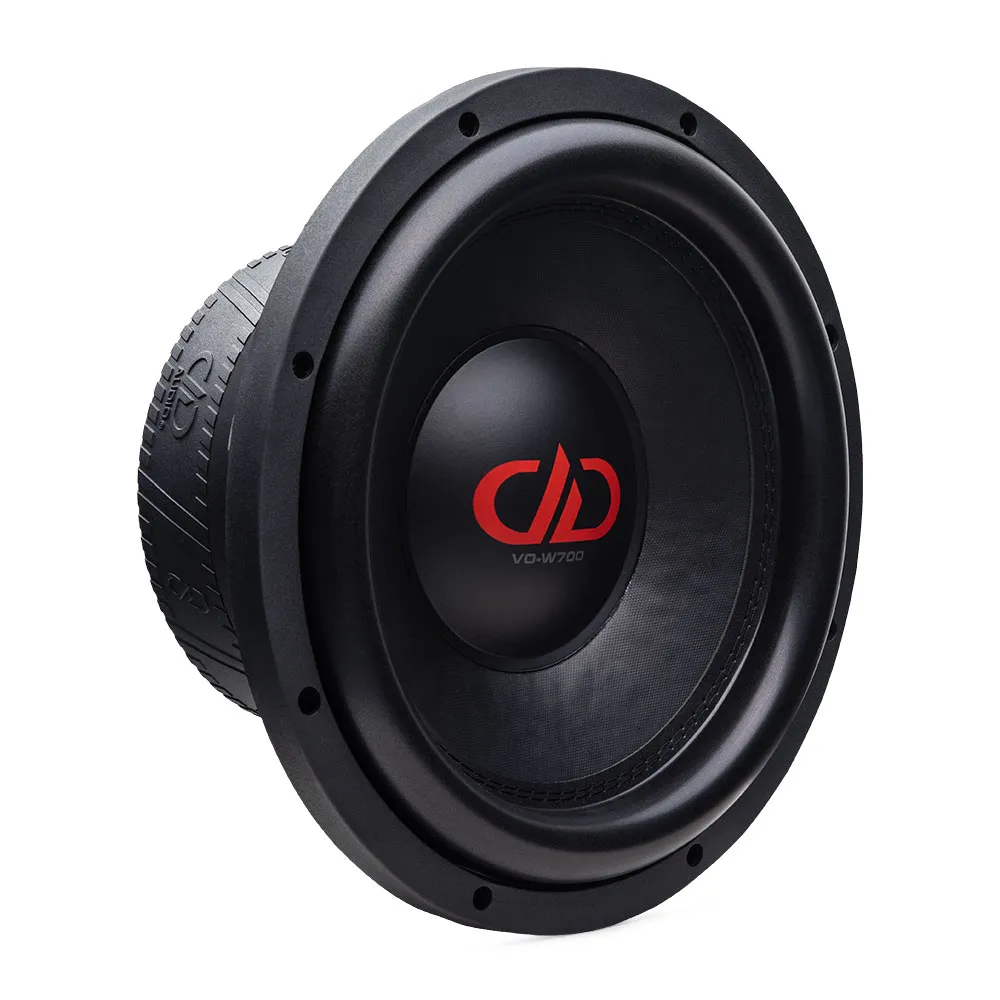

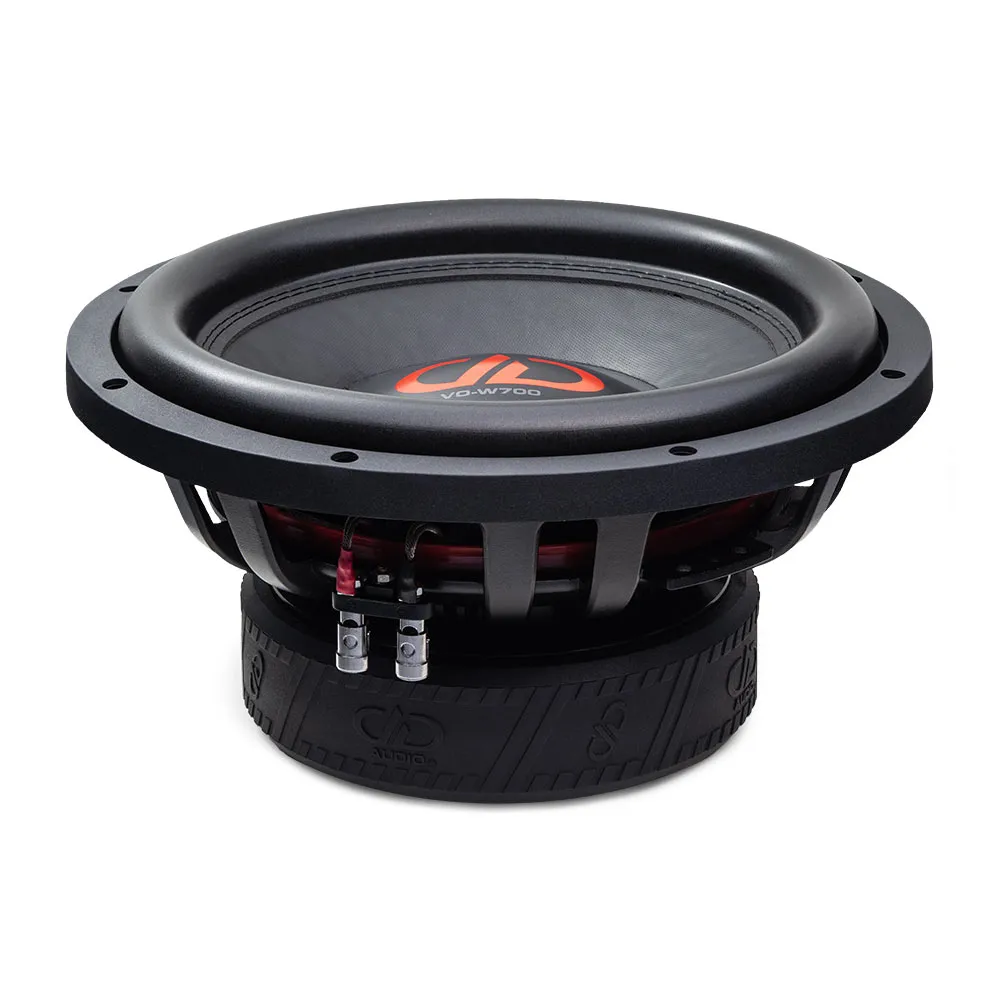

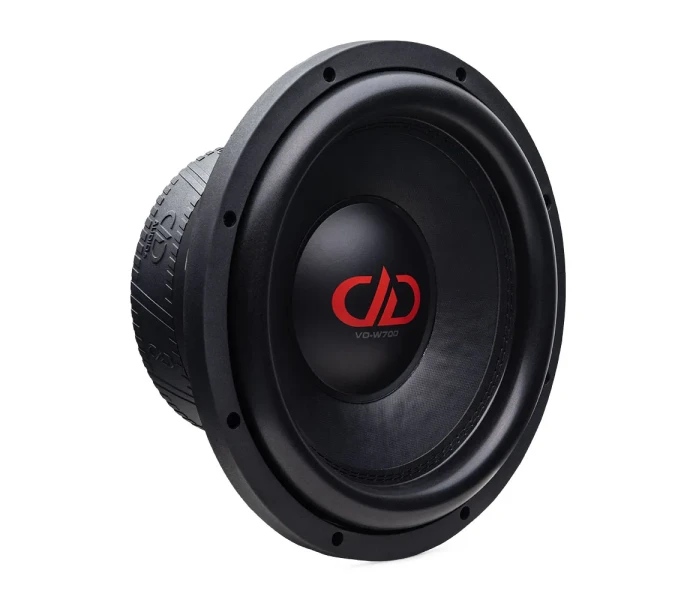

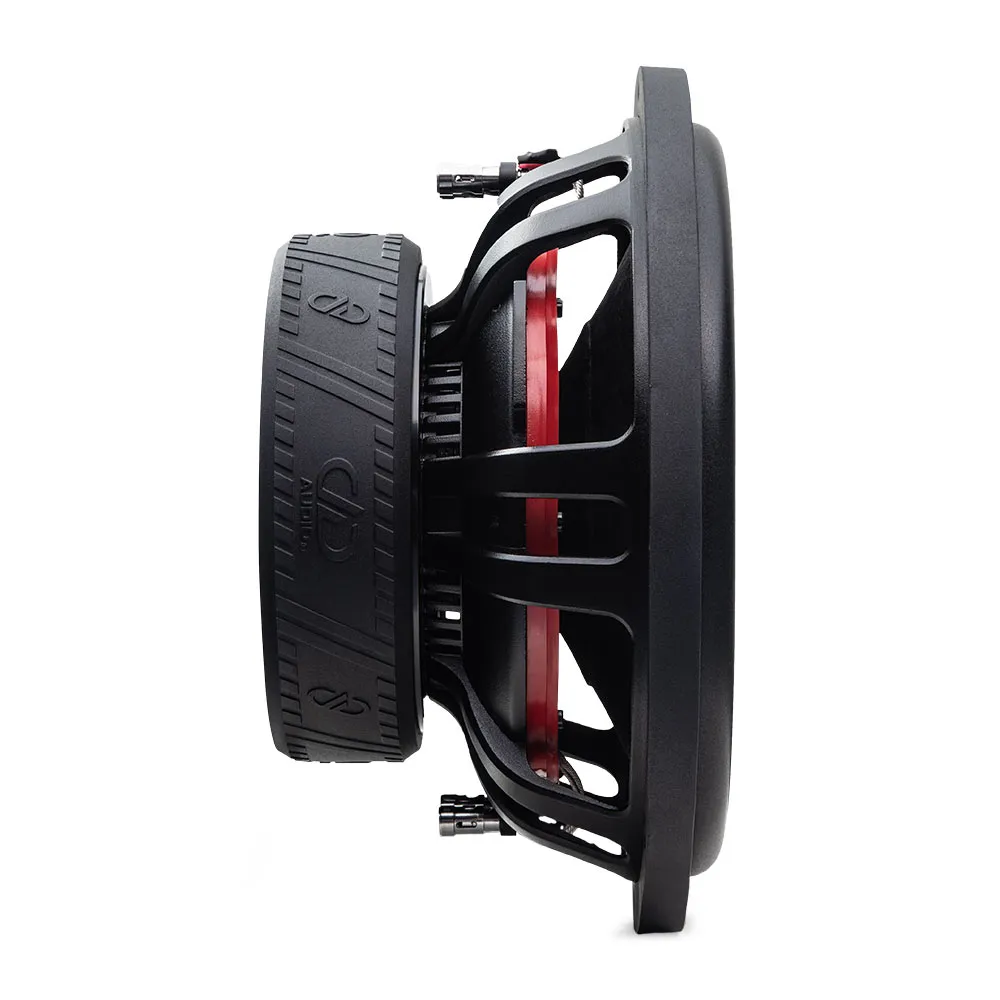

DD Audio VO-W712-D4
1200W
2 x 4 Ohm
3” High-Temp Voice Coil
7.4” Diameter, Double Magnet Motor
Description
The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.
The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.
Specifications
Speaker Size (In): 12
Watts RMS: 1200
Impedance: D4
VCD (In): 3
Piston Diameter (MM): 247.7
Frequency Response (Hz): 35 - 2k
Fs (Hz): 40.85
Qms: 5.807
Qes: 0.517
Qts: 0.475
Vas (Liters): 17.57
BL (TM): 30
Xmech (MM): 30
Xmax (MM): 12
Frame OD w/Gasket (In): 12.625
Mounting Diameter (In): 11 3/8
Mounting Diameter (MM): 286
Mounting Depth (In): 5.125
Mounting Depth (MM): 130
