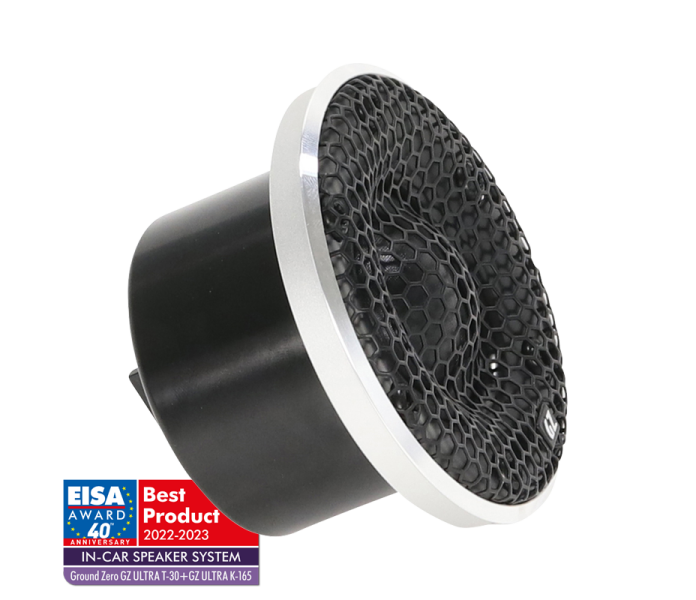

Ground Zero GZ ULTRA T-30
Description
30 mm / 1.18″ ultra-high-end soft dome tweeter with precision-coated textile diaphragm and CNC manchined aluminum chamber
30 mm / 1.18″ ultra-high-end tweeter
Tightly-tolerated technical parameters
Vented voice coil former reducing distortion
Lightweight CCA voice coil improving efficiency
Particular dome for pressure balancing
Machined aluminum chamber with wave diffuser
GZ-design wave-guide face plate
High-efficient neodymium motor
Documented final technical inspection
Wooden box packaging / in matching pairs
Specifications
Model
Ultra-high-end tweeter
Diameter
30 mm / 1.18″
Power Handling (RMS/max.)
100 / 150 Watts
Impedance
4 Ohms
Efficiency
82 dB
Frequency Response
1000 Hz – 26 kHz
Voice Coil
CCA
Membran Layout
coated textile
Mounting Ø
60 mm / 2.36″
Mounting Depth
41 mm / 1.61″
Resonance Frequency (Fs)
500 Hz
