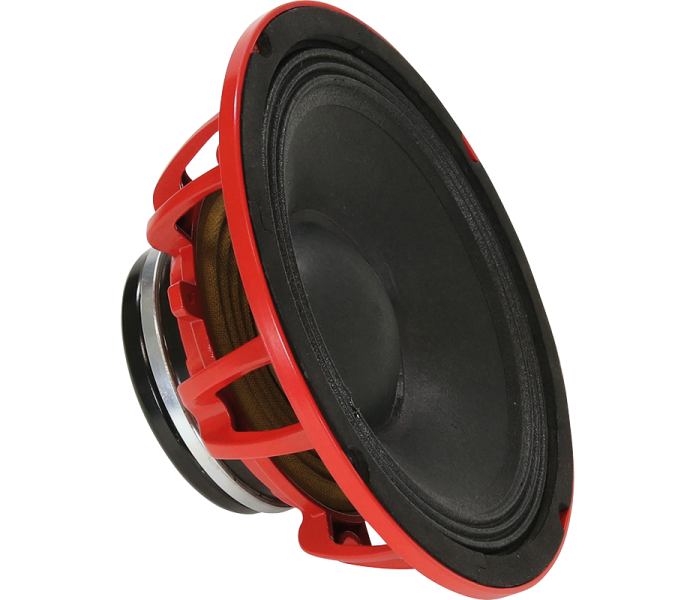

GROUND ZERO GZCM 8.0N-PROX

EAN: 4037072024999
GZCM 8.0N-PROX
8″ high power midrange speaker with neodymium motor
Read more
Description
Specifications
Manuals

Description

8″ high end SPL midrange speaker with neodymium motor and aluminum cast basket

8″ high power midrange speaker with neodymium motor
63 mm / 2.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast basket
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package

Specifications

Speaker diameter: 200 mm / 8”
Impedance 4 Ohm
Frequency response: 120 Hz – 7 kHz
Power handling (RMS) 300 Watt / Watts
Power handling (max) 500 Watt / Watts
Sensitivity: 98 dB
Resonance frequency: 90 Hz
Vas: 10.1 L / 0.36 cu.ft.
Qms: 10.21
Qes: 0.22
Qts: 0.21
BL: 13.1 N/A
Re: 3.4 Ohm / ohms
Le: 0.32 mH
Mms: 19.8 g
Cms: 0.16 mm/N
Xmax (p2p) 12 mm / 0.47“
Voice coil: 63 mm / 2.5”
Magnet: 105 mm / 4.1”
Neodym / neodymium

Outer diameter: 210 mm / 8.27”
Mounting cutout: 181 mm / 7.12”
Mounting depth: 82 mm / 3.23”
