Ground Zero GZCT 500IV-B
EAN: 4037072019957
GZCT 500IV-B
25 mm / 1″ aluminum dome compression tweeter
Read more
Description
Specifications
Description

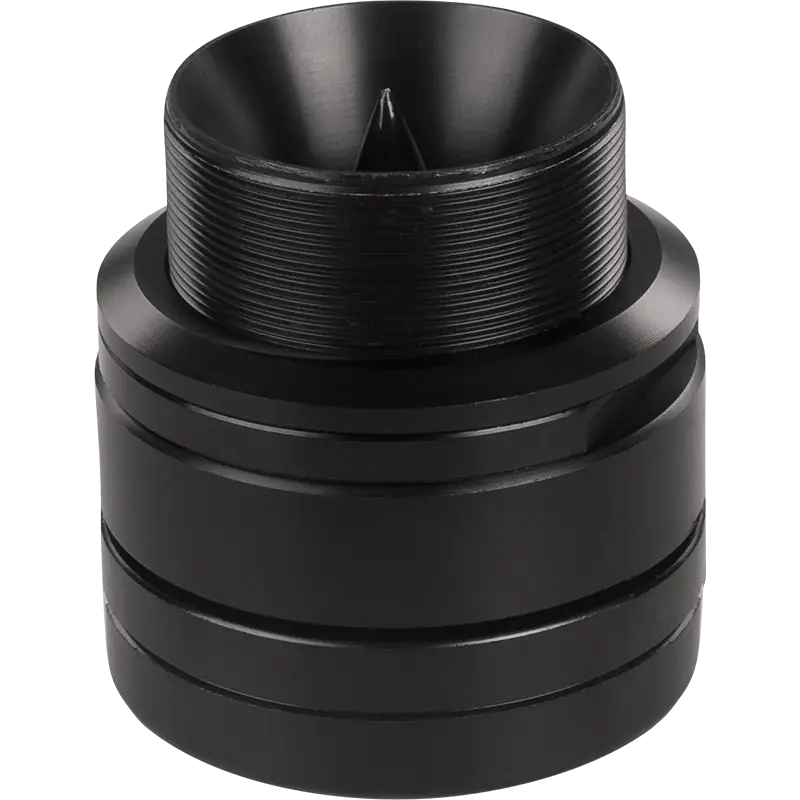

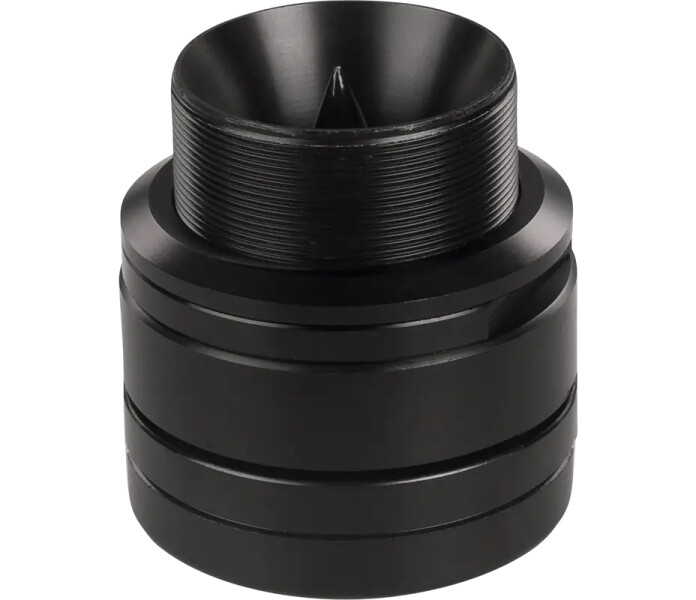

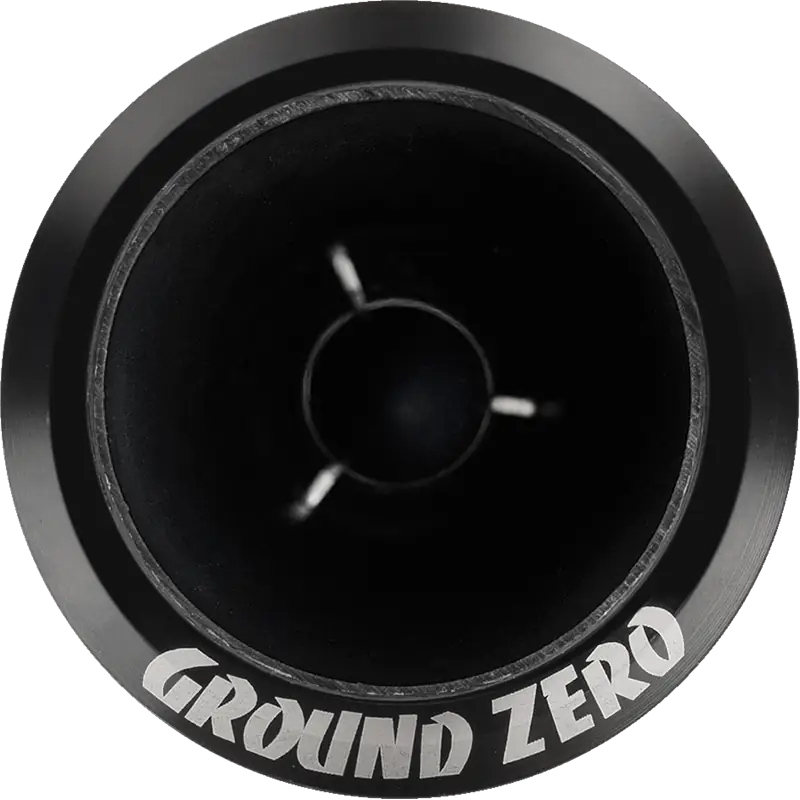

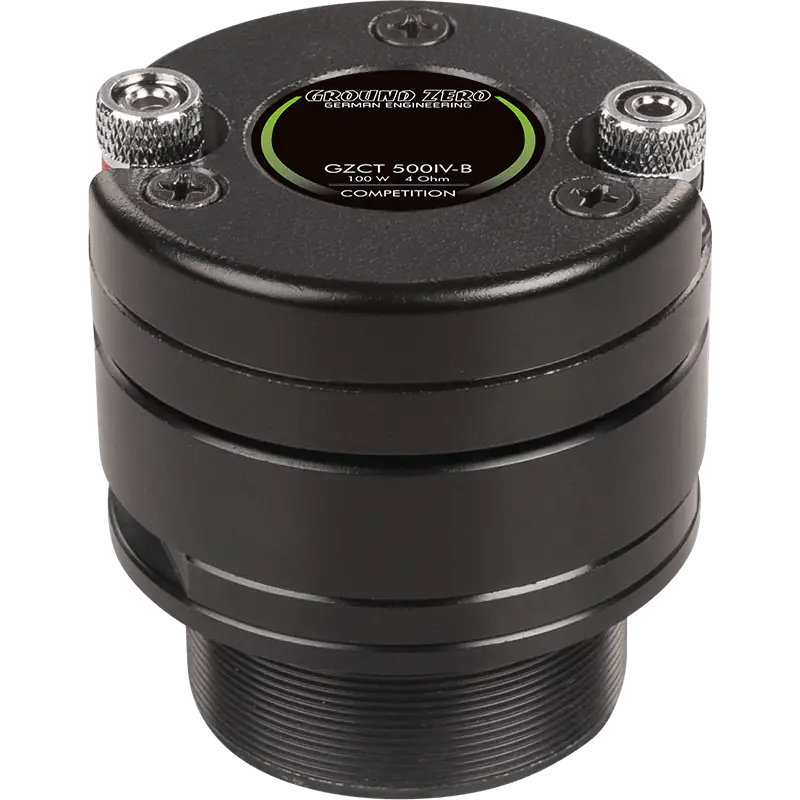

1″ high power compression tweeter with aluminum dome and 30° dispersion
- Black anodyzed aluminum housing
- Variable installation depth
- Suitable for motorcycle use
Specifications
diameter 58 mm / 2.28“
dispersion 30°
impedance 4 Ω
frequency response 4 – 25 kHz
power handling 30 Watt RMS / Watts RMS
max. power input 100 Watt / Watts
SPL / sensivity (1 Watt / 1 m) 102 dB
voice coil 25 mm / 1” CCA flat wire
magnet 58mm / 2.28” Neodym
total height 64.6 mm / 2.55”
mounting diameter 43 mm / 1.69”
mounting depth 37 mm inkl. Terminal / 1.46” incl. terminals
