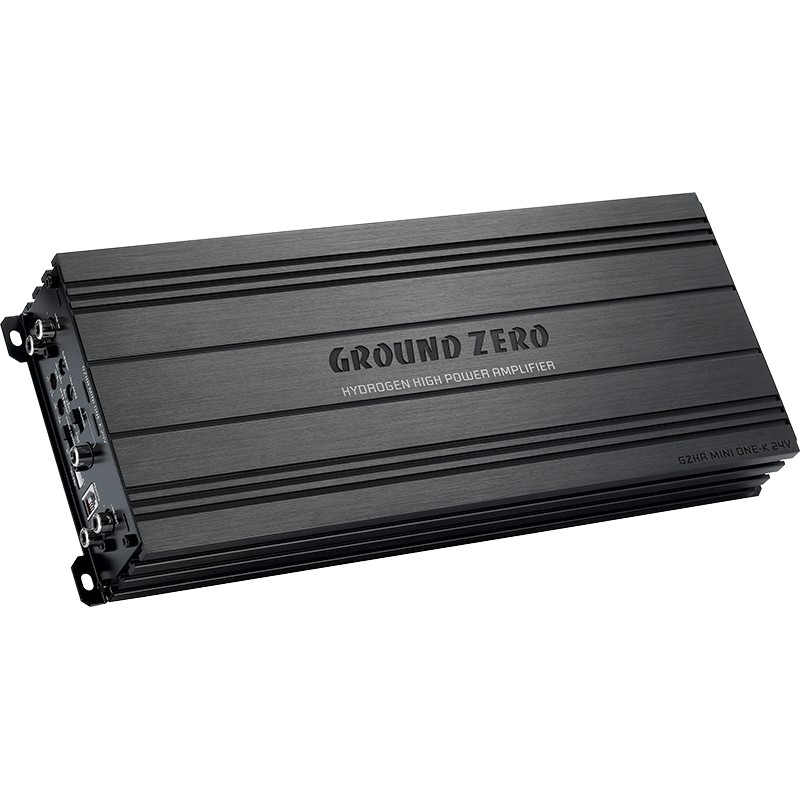

Ground Zero GZHA mini ONE-K 24V
Description
GZHA mini-amplifiers are representign latest D-class technology that is also used in OEM-amplifiers. Main difference to traditional D-class is much better sound quality throughout whole bandwith. It is impossible to say in a blind test that are you listening to good AB-class amp or GZHA mini-amplifier.
24V amplifier is the best solution to trucks. Thanks to double voltage, only half of the current is needed. You can use smaller power and ground cables. And you do not need voltage regulators that drain your power.
Specifications
- High-efficient class D amplifier to 24V systems
- For 24V use
- Installer friendly dimensions
- 1 ohms stable / 2 ohms (in linked configuration)
- High-level input with auto-on function
- 12 dB adjustable bass boost (@45 Hz)
- Adjustable low pass filter
- Adjustable input sensitivity
- Adjustable subsonic filter
- 0° / 180° Phase shift switch
- Bass remote control
- Thermal / short circuit / overload protection
Output Power @ 4 Ohm 340 Watts RMS
Output Power @ 2 Ohm 600 Watts RMS
Output Power @ 1 Ohm 1000 Watts RMS
max. Output 1200 Watts
Frequency Response 10 – 200 Hz
Lowpass30 Hz – 250 Hz
Highpass10 Hz – 50 Hz
Bandpass10 Hz – 250 Hz
Dimensions135 x 322 x 52 mm.
