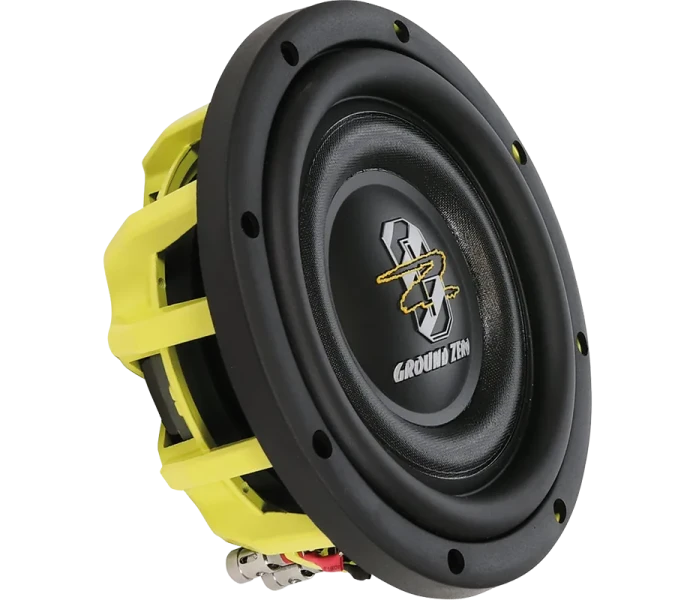

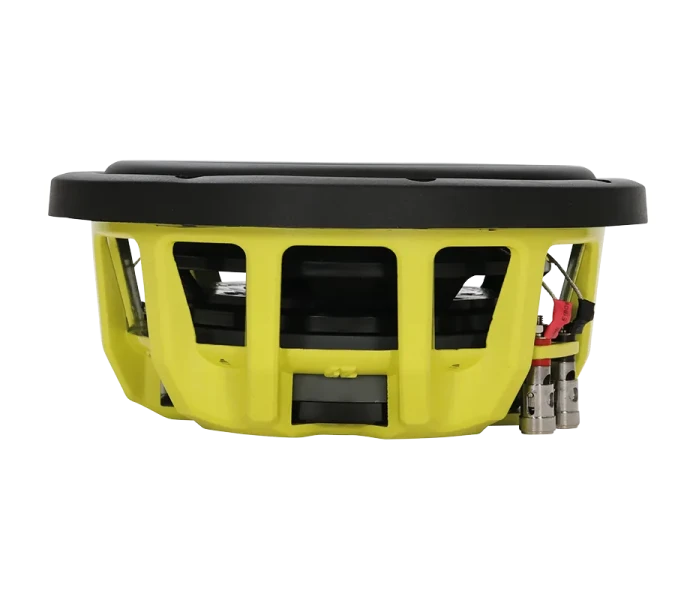

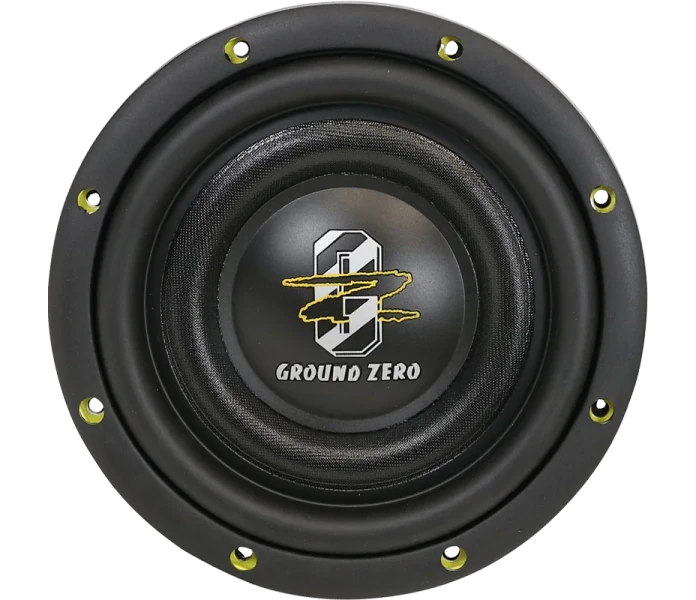

Ground Zero GZHW 8SPL-D2 FLAT

EAN: 4037072025316
GZHW 8SPL-D2 FLAT
8″
Flat SPL subwoofer
800W
2,5″ voice coil
Read more
Description
Specifications
Manuals

Description

The brand-new HYDROGEN series GZHW 8SPL-D2 FLAT subwoofer solves the problem of cramped installation space requiring a shallow enclosure for the
subwoofer.

Equipped with a powerful motor and a huge voice coil known from the existing subwoofers of the Hydrogen SPL series, this moden handles power input of up to 800 Watts SPL


8″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
50 mm / 2″ copper voice coil
4-layer copper voice coil
Push terminal

Enclosure recommendation:

Vented: 16 Liter netto
Port 1 x 70 mm / 1 x 2.76”
port length* 300 mm / 11.81”
frequency 37 Hz


Vented (small enclosure)
12 Liter netto / 0.424 cu.ft. net
Port 1 x 70 mm / 1 x 2.76” 300 mm / 11.81”
frequency 42 Hz

Specifications

Model: High-Quality Flat SPL Subwoofer

Diameter: 20 cm / 8″

Power handling (RMS/SPL): 500 / 800 Watts

Impedance: 2x 2 Ohms

Efficiency: 83 dB

Power recommendation: 350 – 800 Watts

Voice coil: 63 mm / 2.5″ Copper

Cone: Sandwich paper

Max. Excursion (Xmax): 24 mm / 0.94″

Mounting Ø: 187 mm / 7.36″

Mounting depth: 80 mm / 3.15″

Resonance frequency (Fs): 31.5 Hz

Overall quality (Qts): 0.41

Equiv. air volume (Vas): 14.2 L / 0.50 ft³
