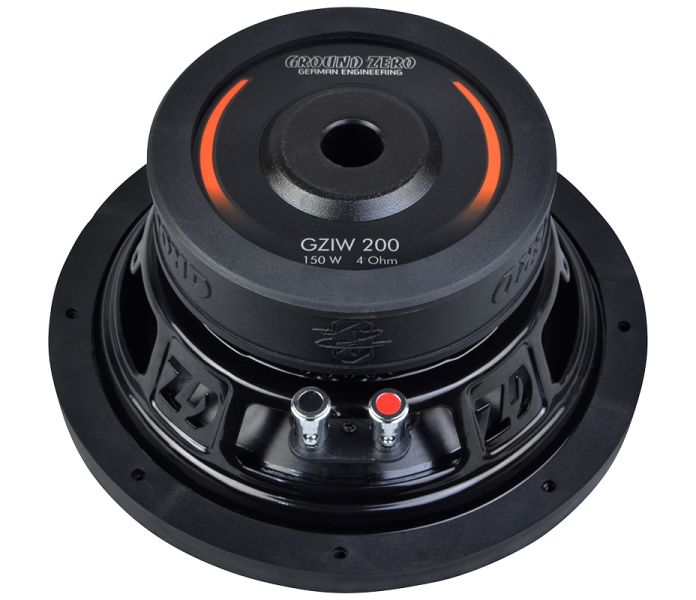

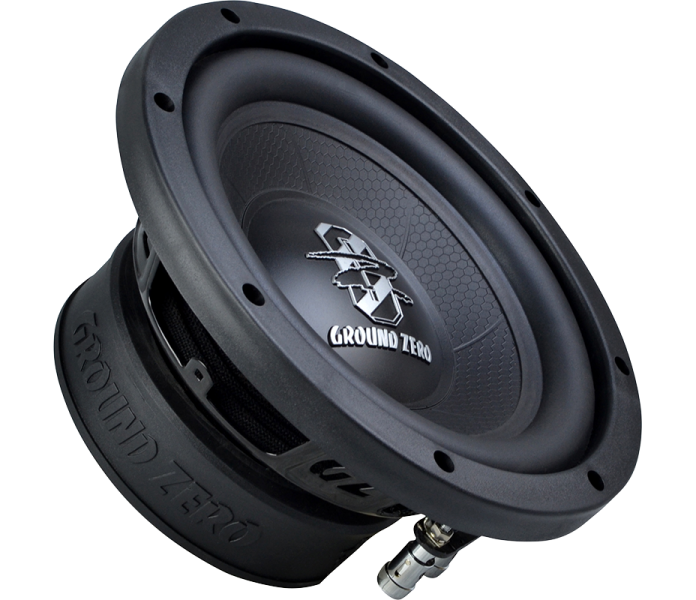

Ground Zero GZIW 200
Description
All GZIW subwoofers have a new updated voice coil, and spirally stiffened IMPP dust cap with 3D structure logo. This significantly affects the resonance of the cone, so the redesigned GZIW guarantees an even tighter kick! Don′t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Specifications
Diameter
20 cm / 8″
Power Handling (RMS)
150 Watts
Impedance
4 Ohms
Efficiency
87 dB
Power Recommendation
100 – 200 Watts
Voice Coil
38 mm / 1.5″ copper
Membran
HQPP cone with 3D-structure
Max. Excursion (Xmax)
20 mm / 0.79″
Mounting Ø
182 mm / 7.17″
Mounting Depth
100 mm / 3.94″
Resonance Frequency (Fs)
32 Hz
Overall Qaulity (Qts)
0.44
Equiv. Air Volume (Vas)
23.6 L / 0.83 cu.ft..
