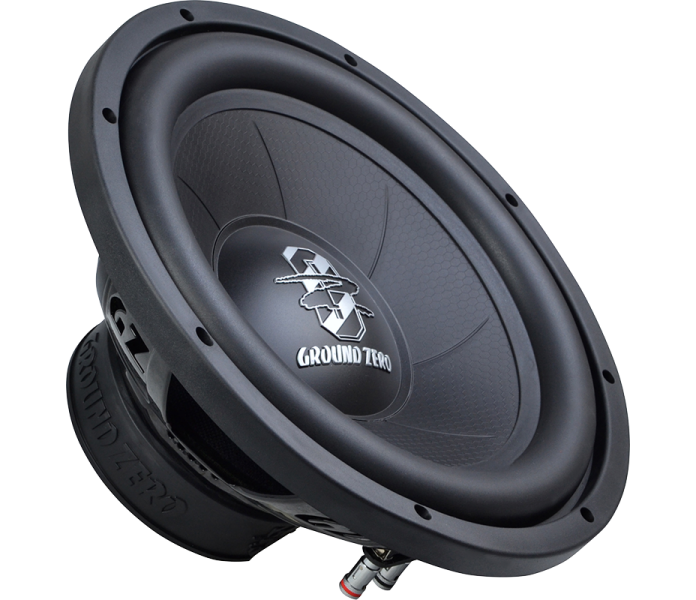

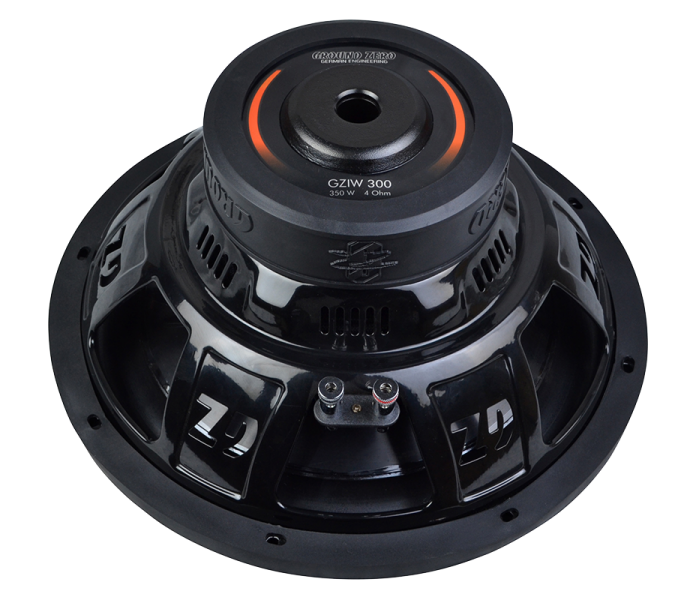

Ground Zero GZIW 300
Description
All GZIW subwoofers have a new updated voice coil, and
spirally stiffened IMPP dust cap with 3D structure logo. This significantly affects the resonance of the cone,
so the redesigned GZIW guarantees an even tighter kick!
Don′t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Specifications
Diameter
30 cm / 12″
Power Handling (RMS)
350 Watts
Impedance
4 Ohms
Efficiency
88 dB
Power Recommendation
200 – 400 Watts
Voice Coil
50 mm / 2″ copper
Membran Layout
HQPP cone with 3D structure
Max. Excursion (Xmax)
28 mm / 1.10″
Mounting Ø
287 mm / 11.30″
Mounting Depth
149 mm / 5.87″
Resonance Frequency (Fs)
30 Hz
Overall Qaulity (Qts)
0.58
Equiv. Air Volume (Vas)
69.3 L / 2.45 cu.ft.
