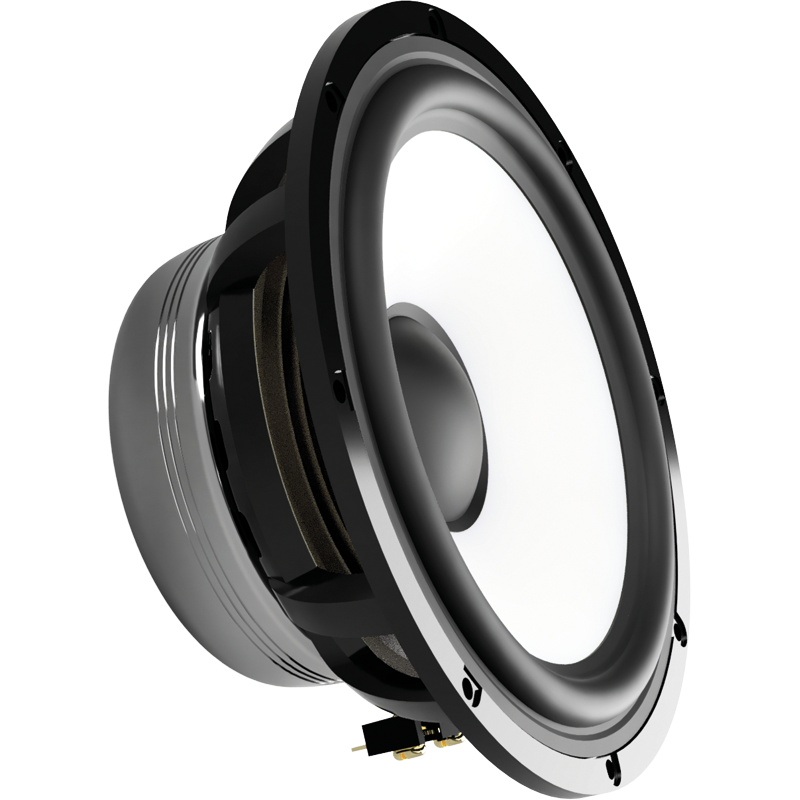

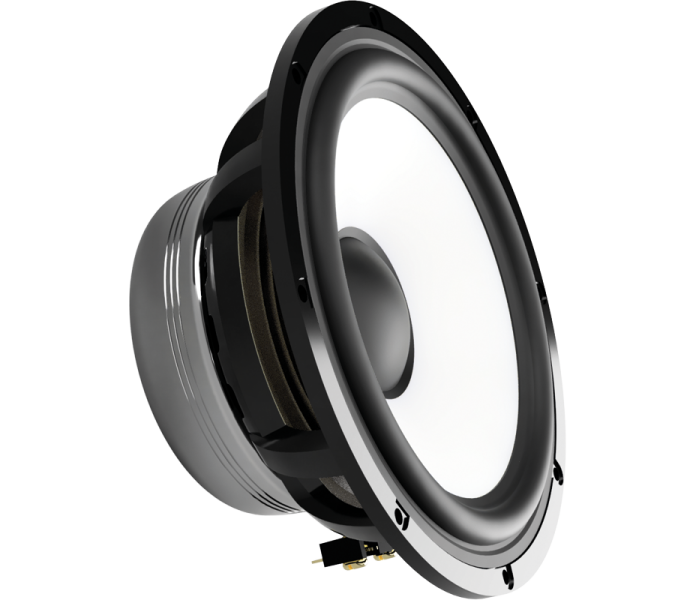

Ground Zero GZPK 16SQ-C
Description
6.5″ high end midwoofer with GZ-design aluminum cast basket offering unique ventilation
6.5″ high end midwoofer
38 mm / 1.5″ voice coil
Aluminum-ceramics cone
High-efficient hybrid motor with neodymium and ferrite magnets
Lightweight, 2-layer copper clad aluminum voice coil
GZ-design hexagon style NRG* protection grill with logo option
Gold-plated GZ-design screw terminal
Chrome plated magnet cover
Optimized using the renowned Klippel® measurement system
1 pair / package
Specifications
Model High-quality SQ midwoofer
Diameter 165 mm / 6.5″
Power handling (RMS/max.) 140 / 200 Watts
Impedance 4 Ohms
Efficiency 89 dB
Frequency Response 40 Hz – 5000 Hz
Voice coil 38 mm / 1.5″
Cone Aluminum-ceramics
Mounting Ø 144 mm / 5.67″
Mounting depth 70 mm / 2.76″
Resonance frequency (Fs) 38 Hz
