Ground Zero GZUA 2SQ
Description

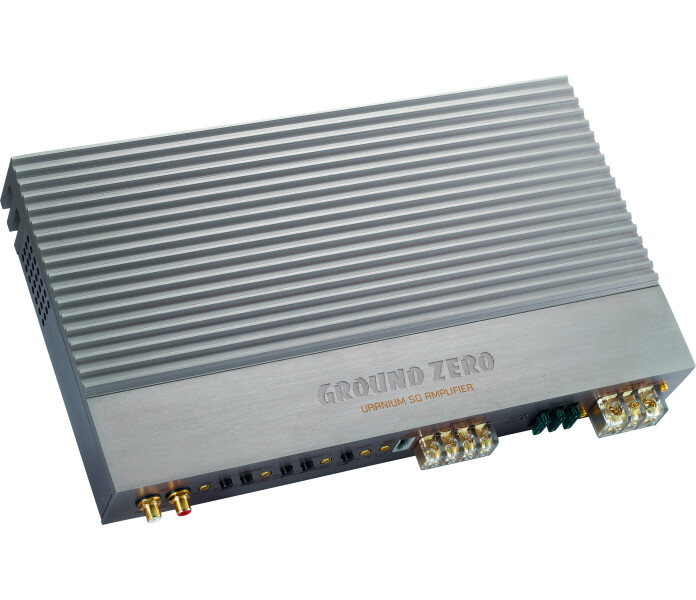

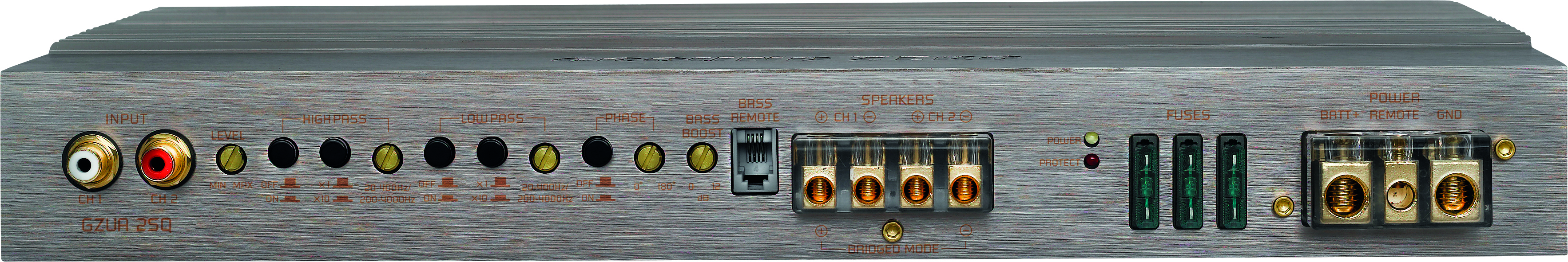

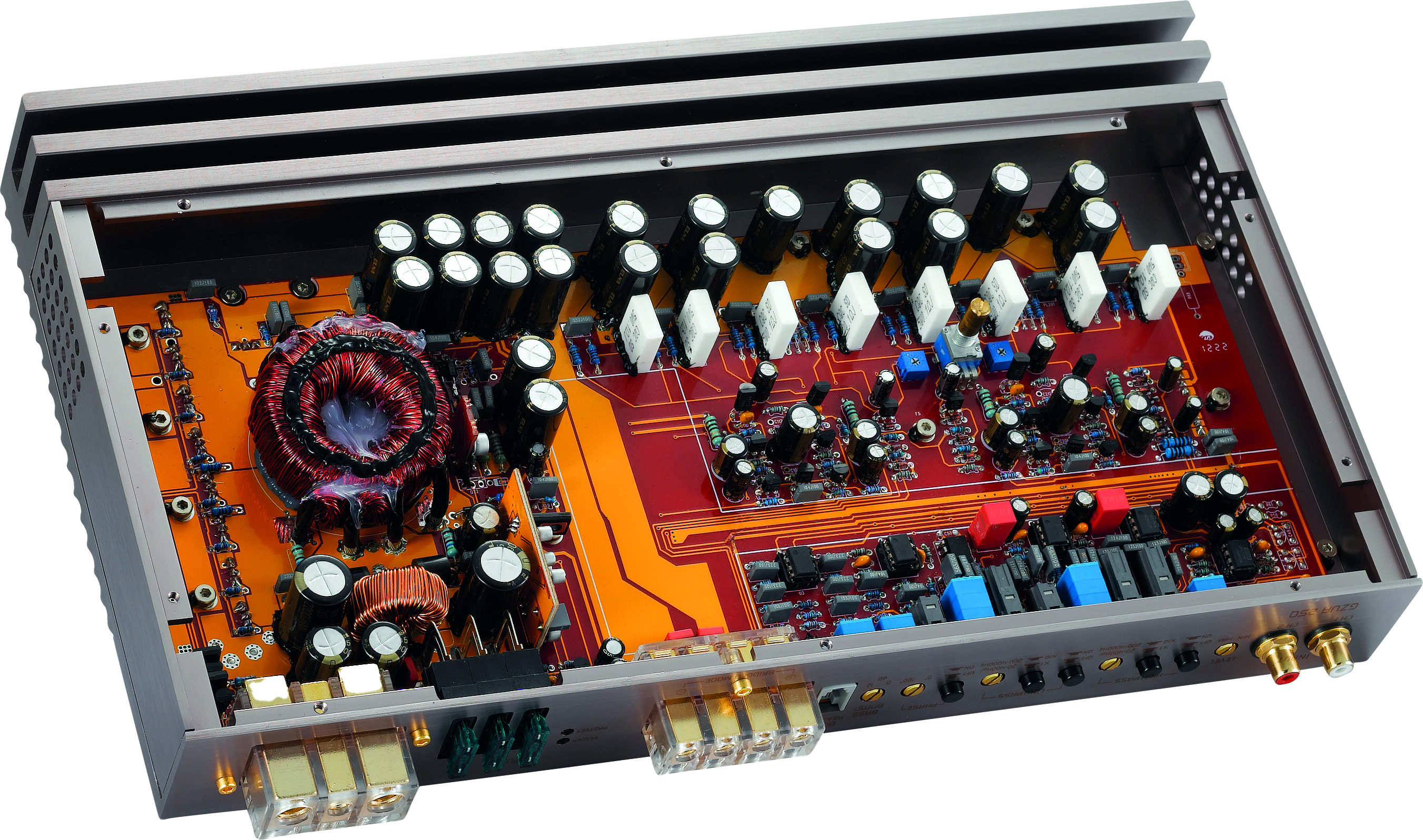

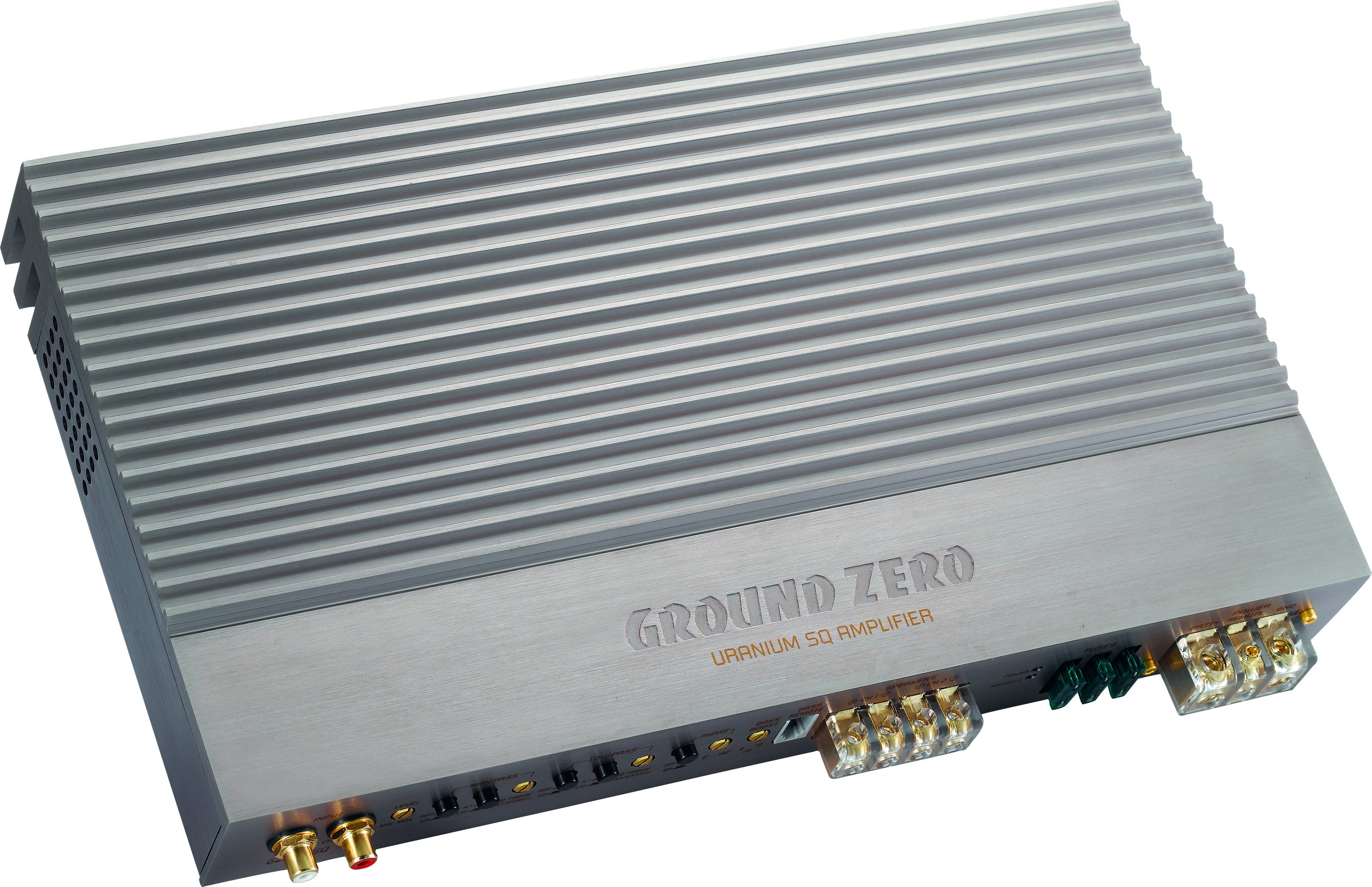

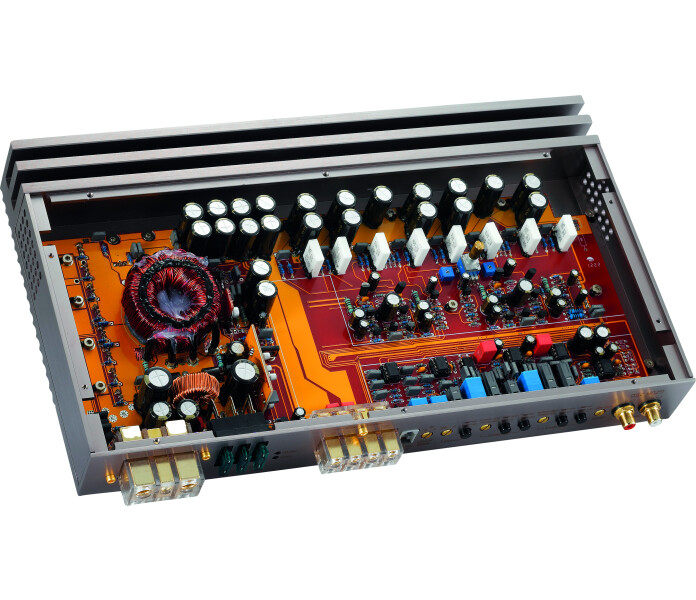

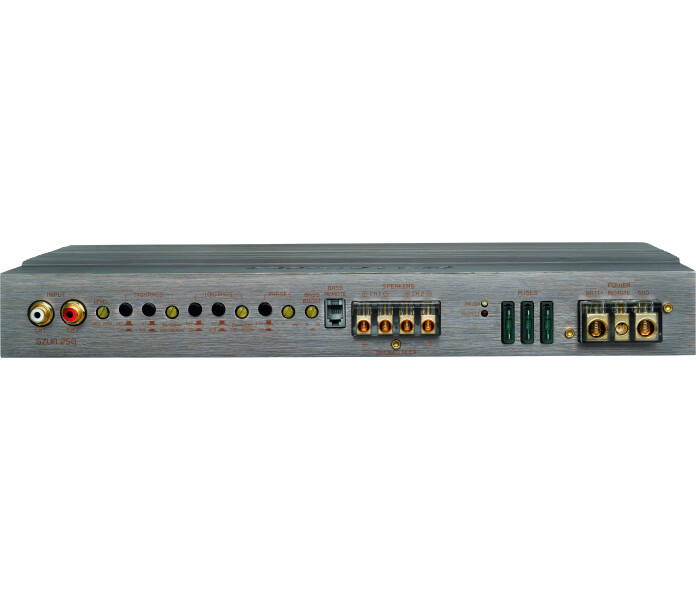

Ground Zero Uranium 2-channel high-end class A/B SQ amplifier. 1 ohm stable (stereo operation) Adjustable BIAS setting. Adjustable high and low pass filters with wide bandwidth Bandpass function with activated high and low pass filter Adjustable input sensitivity Power on delay Temperature / short circuit / overload protection
Specifications
2-channel high-end class AB amplifier
High-performance 2-channel SQ amplifier
Output power:
- 2x 175 W RMS @ 4 ohms
- 2x 300 W RMS @ 2 ohms
- 2x 485 W RMS @ 1 ohm
- 1x 1180 W max @ 2 ohms (bridged)
1 ohm stable (stereo operation)
THD+N 0.005%
Frequency Response 10 Hz - 70kHz ( -3dB )
LPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
HPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
Band Pass Filter 20 Hz - 4000Hz ( x10 )
SNR: 110dB
Damping Factor: 800
Adjustable BIAS setting
Adjustable high and low pass filters with wide bandwidth
Bandpass function with activated high and low pass filter
Adjustable input sensitivity
Power on delay
Phase position control
Boss Boost control (0 - 1 2dB @ 45 Hz)
Temperature / short circuit / overload protection
Wired Bass Level Remote
Dimensions:
209 x 48 x360 mm
