HELIX Conductor for SCP
Description

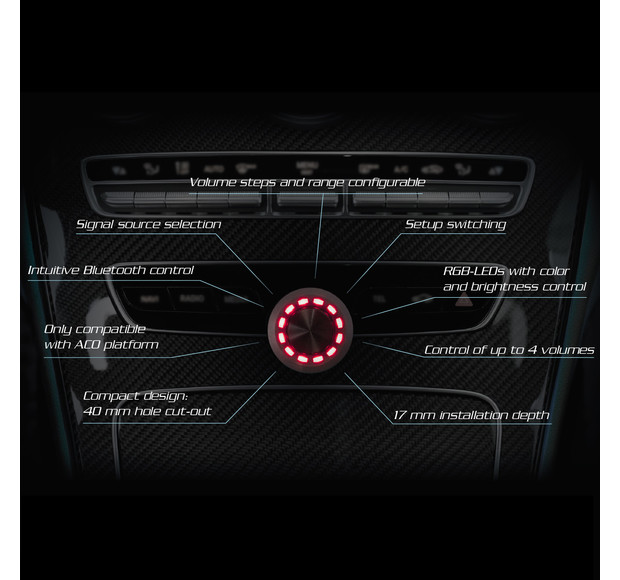

HELIX CONDUCTOR is ACO remote controller. SCP connection. FEATURES: Up to 4 individual volume menus configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Att.) • Volume range selectable (60 dB, 24 dB, 12 dB). • Volume steps selectable (1 dB steps, 0.5 dB steps). • Individual color for each volume menu configurable. Sound Setup selection between all 10 memory slots. Intuitive Bluetooth playback control and pairing activation (only for Bluetooth Extension Card). 12 x RGB-LEDs for visual feedback.

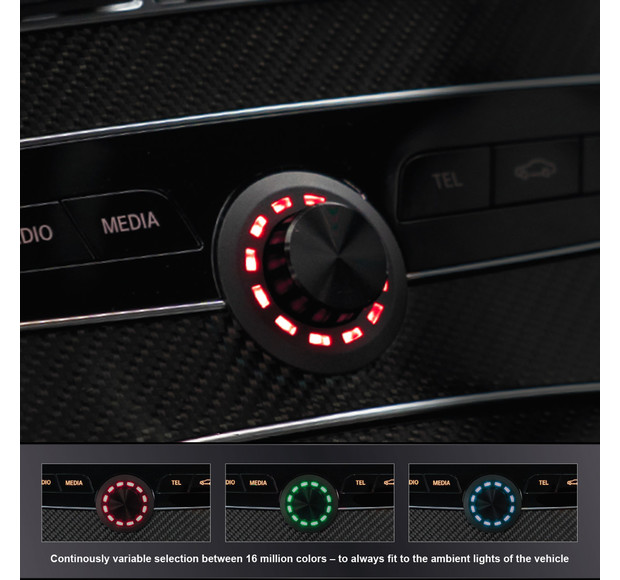

• Wide color space with over 16 million colors.
• Brightness and automatic dimming function configurable. Easy installation.
• Flush mount installation with Ø 40 mm hole cut-out. • 5 m cable harness with split connector and single connector supply.
• Optional housing for on-dash installation available soon.
Full configuration and updatability through the DSP PC-Tool software. DSP PC-Tool 4.75a or higher.
COMPATIBILITY:
BRAX:
HELIX DSP PRO MK3
DSP.3S
DSP MINI MK2
V TWELVE DSP MK2
MATCH:
UP 10DSP
UP 8DSP
M 5.4DSP
Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.
Note 2: The CONDUCTOR is not compatible with UP 7DSP / UP 7BMW
Specifications

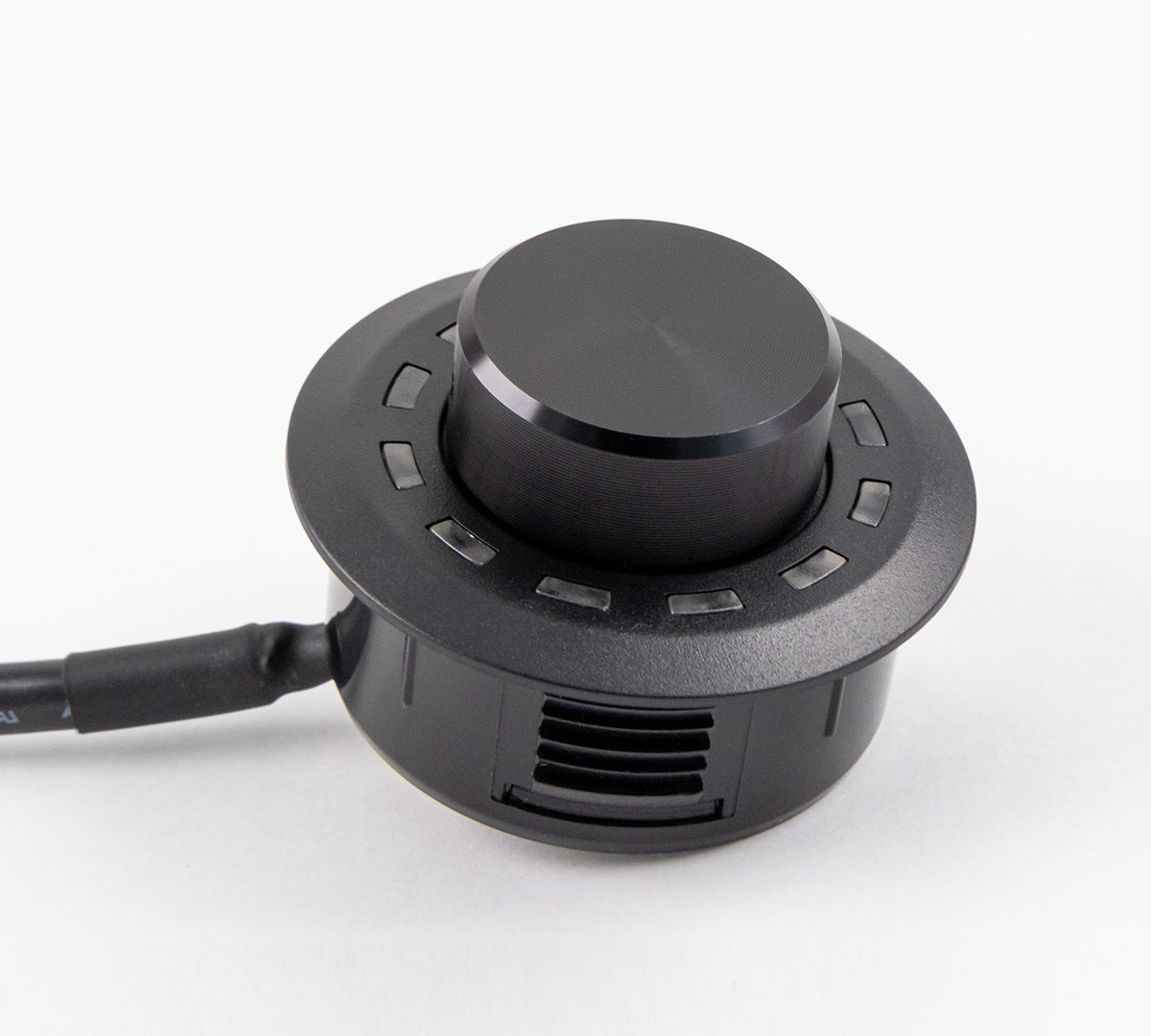

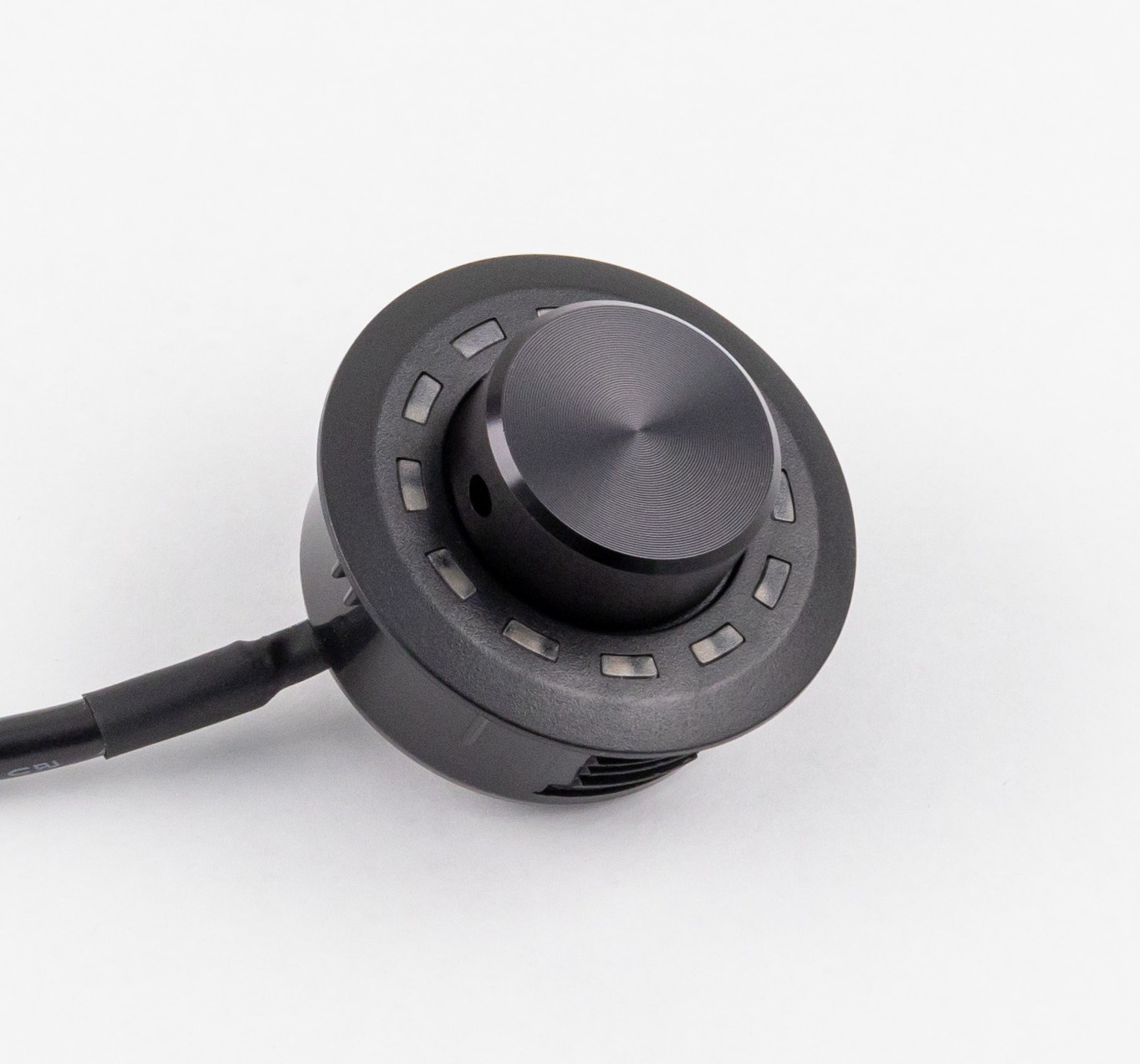

Housing: ABS housing with machined aluminum knob.
Hardware: Rotary encoder, 12 x RGB-LEDs &
48 MHz ARM processor.
Connection: Smart Control Port ( SCP )
MiniDIN or NanoFit.

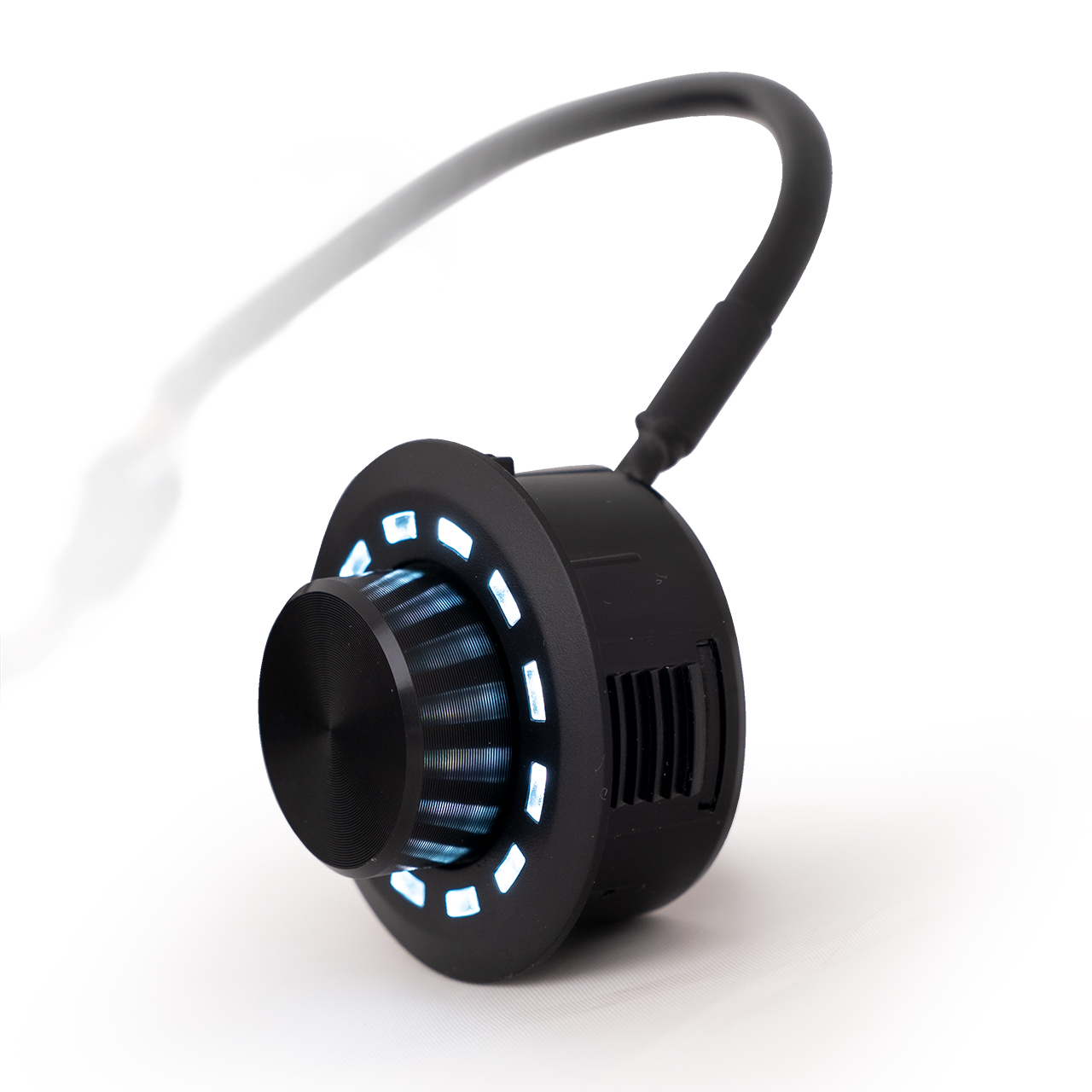

Cable length: 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable.

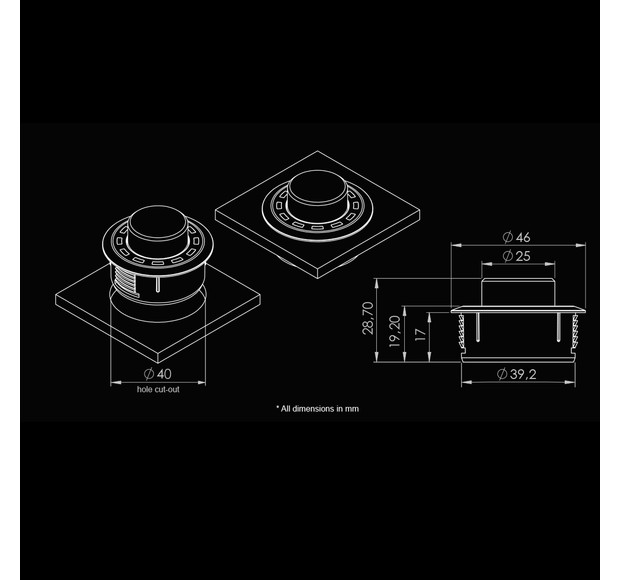

Dimensions: (Ø x H) Ø 46 x 28.7 mm /
Ø 1.81 x 1.13”.
