HELIX DIRECTOR
Description
Everything under control!

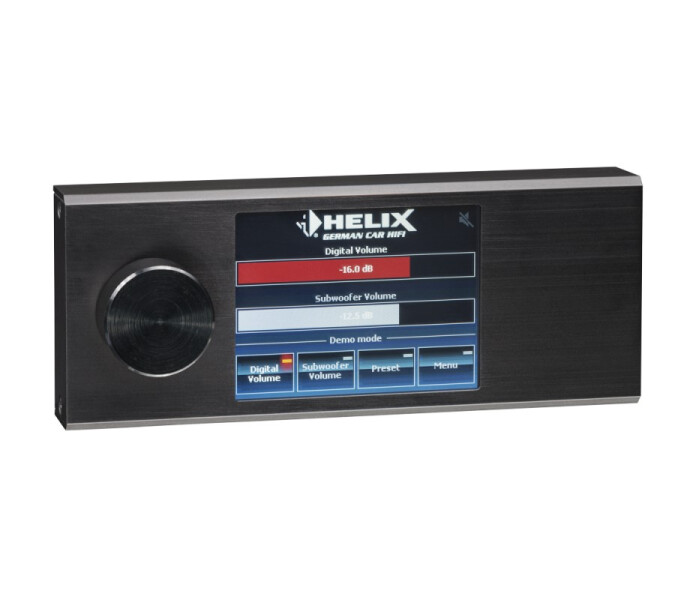

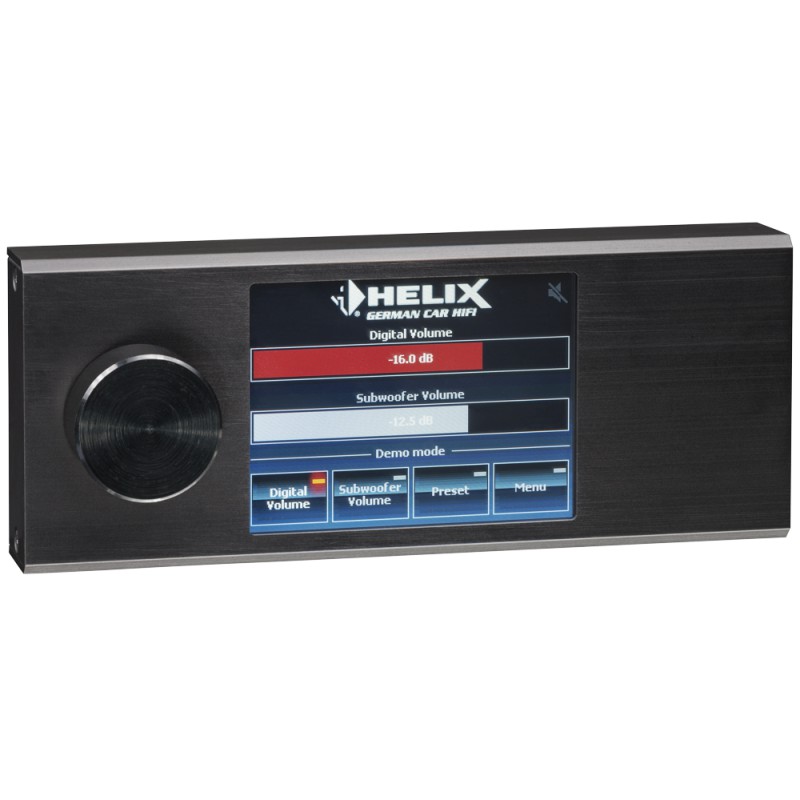

With the new remote control DIRECTOR, you lead from the front!
The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example:
Source selection
Volume control of all sources
Volume control of the subwoofer
Control and configuration of the HEC BT module
Switching between sound setups.
Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR - a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk.
The high-resolution, full colour touchscreen display is housed in what was solid block of aluminum.
The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.
Specifications
Features
2.8“ / 7 cm touchscreen display and powerful ARM processor
Easy handling of the main functions
Volume control of all sources
Volume control of the subwoofer
Source selection
Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
Switching between sound setups
Memory locations for 20 additional sound setups (only devices without ACO platform)
Automatic dimming function of the display
Display rotation adjustable to 180°
Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
Exclusive solid aluminum housing
17’ / 5.2 m connection cable included
Technical data
Dimensions (H x W x D)
53.50 x 135 x 18 mm
2.07 x 5.32 x 0.71″
Compatibility
DIRECTOR for Control Input
BRAXDSP
NOX4 DSP*
HELIXDSP ULTRA
DSP PRO MK3**
DSP PRO (MK1/MK2)
DSP.3S**
DSP.3
DSP.2
DSP MINI MK2**
DSP MINI
DSP
P SIX DSP ULTIMATE** (not in 24V applications)
P SIX DSP (MK1 / MK2)
V TWELVE DSP
V EIGHT DSP (MK1 / MK2)
MATCH
DSP
UP 10DSP**
UP 8DSP**
UP 7BMW
UP 7DSP
M 5.4DSP**
M 5DSP (MK1 / MK2)
PP 86DSP
PP 82DSP
PP 62DSP
PP 52DSP
* An additional adaptor (Art.No. H424481) is required for connecting the remote control.
** The Control Input-to-SCP adaptor supplied with the DSP product is required for connecting the remote control.
Director updates: https://www.audiotec-fischer.de/en/tools/director-update/.
