HELIX DIRECTOR for SCP
Description

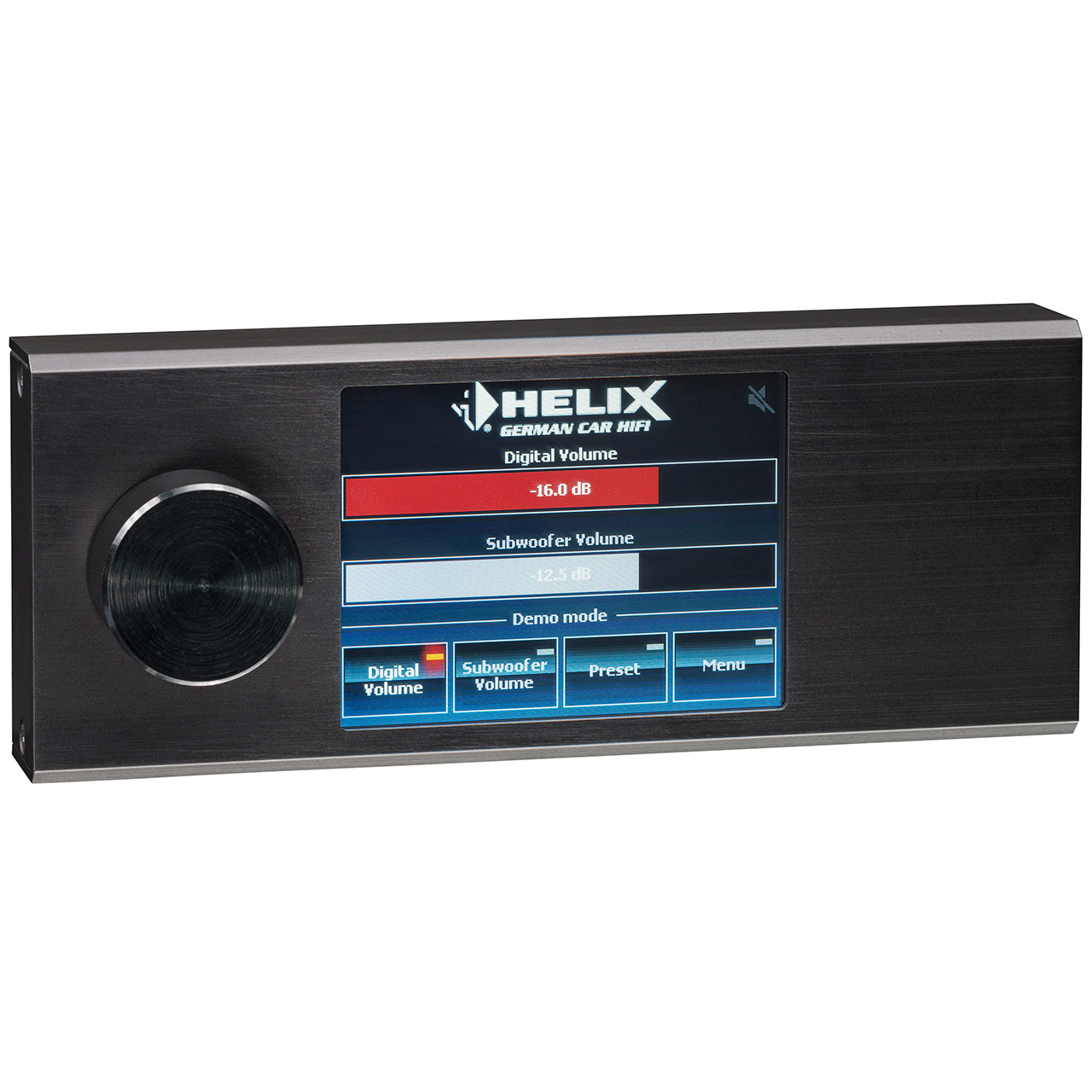

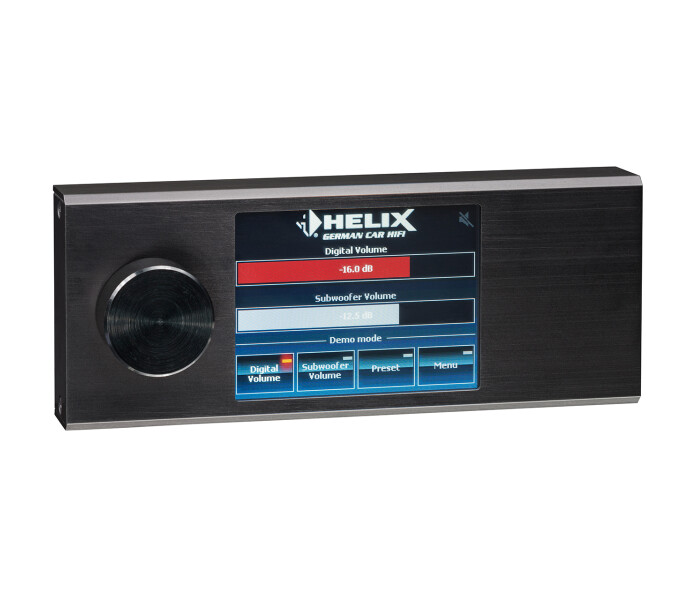

DIRECTOR - Display Remote Control Everything under control! With the new remote control DIRECTOR, you lead from the front! The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example: Source selection Volume control of all sources Volume control of the subwoofer Control and configuration of the HEC BT module Switching between sound setups. Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR - a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk. The high-resolution, full colour touchscreen display is housed in what was solid block of aluminum. The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.
Specifications
Features
2.8“ / 7 cm touchscreen display and powerful ARM processor
Easy handling of the main functions
Volume control of all sources
Volume control of the subwoofer
Source selection
Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
Switching between sound setups
Memory locations for 20 additional sound setups (only devices without ACO platform)
Automatic dimming function of the display
Display rotation adjustable to 180°
Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
Exclusive solid aluminum housing
17’ / 5.2 m connection cable included
Technical data
Dimensions (H x W x D)
53.50 x 135 x 18 mm
2.07 x 5.32 x 0.71″
Compatibility
DIRECTOR for SCP
BRAX
HELIX DSP PRO MK3
DSP.3S
DSP MINI MK2
P SIX DSP ULTIMATE (not in 24V applications)
MATCH
UP 10DSP
UP 8DSP
M 5.4DSP
Scope of delivery:
1 x Remote control DIRECTOR
1 x Connection cable for Smart Control Port, 17′ / 5.2 m length
1 x Instruction manual
