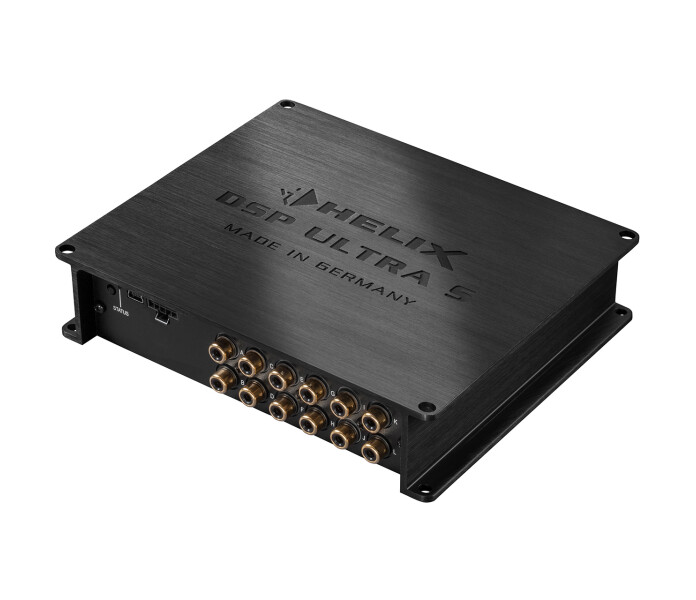

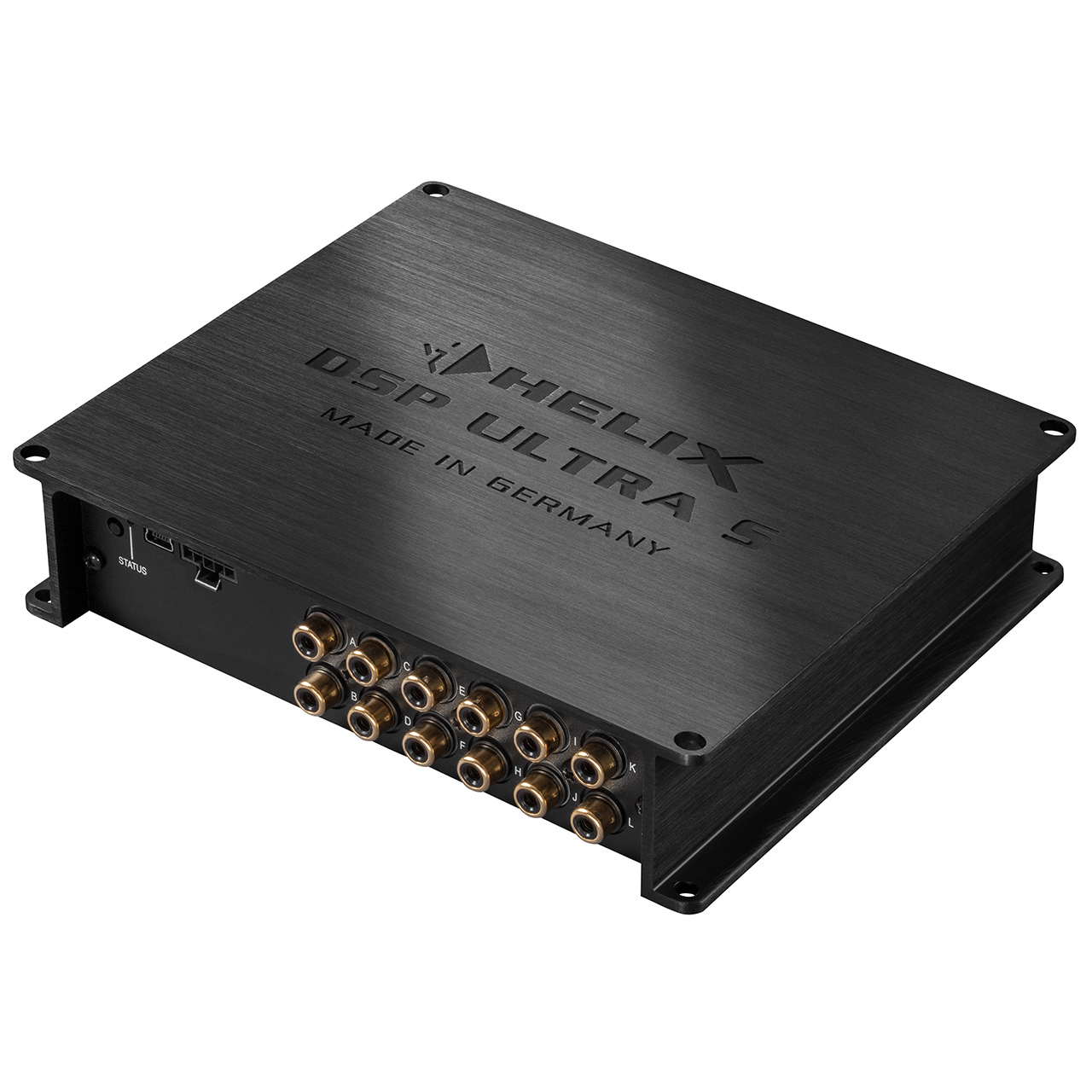

Helix DSP ULTRA S

Advanced technology, proven excellence
The HELIX DSP ULTRA S once again defines the benchmark for digital sound processors. Targeted optimizations enhance the already outstanding performance of its predecessor for a sound experience that exceeds even the highest expectations. Audiophile precision and innovative engineering, combined in one device – and of course, completely made in Germany.

Audio performance par excellence
The HELIX DSP ULTRA S stands for the highest standards in audio performance. A newly designed audio signal path reduces the distortion factor to a minimum: at its heart are the renowned AKM Velvet Sound™ 32 Bit AD and DA signal converters and new, high-quality operational amplifiers from the legendary TI / BurrBrown ″OPA series″ with SoundPlus™ technology, assuring the highest sound quality. With the completely revised analog input stage, the ULTRA S achieves optimum interference immunity, enabling unsurpassed clarity and detail without external influences, even under the most demanding conditions.

TwinDSP Power

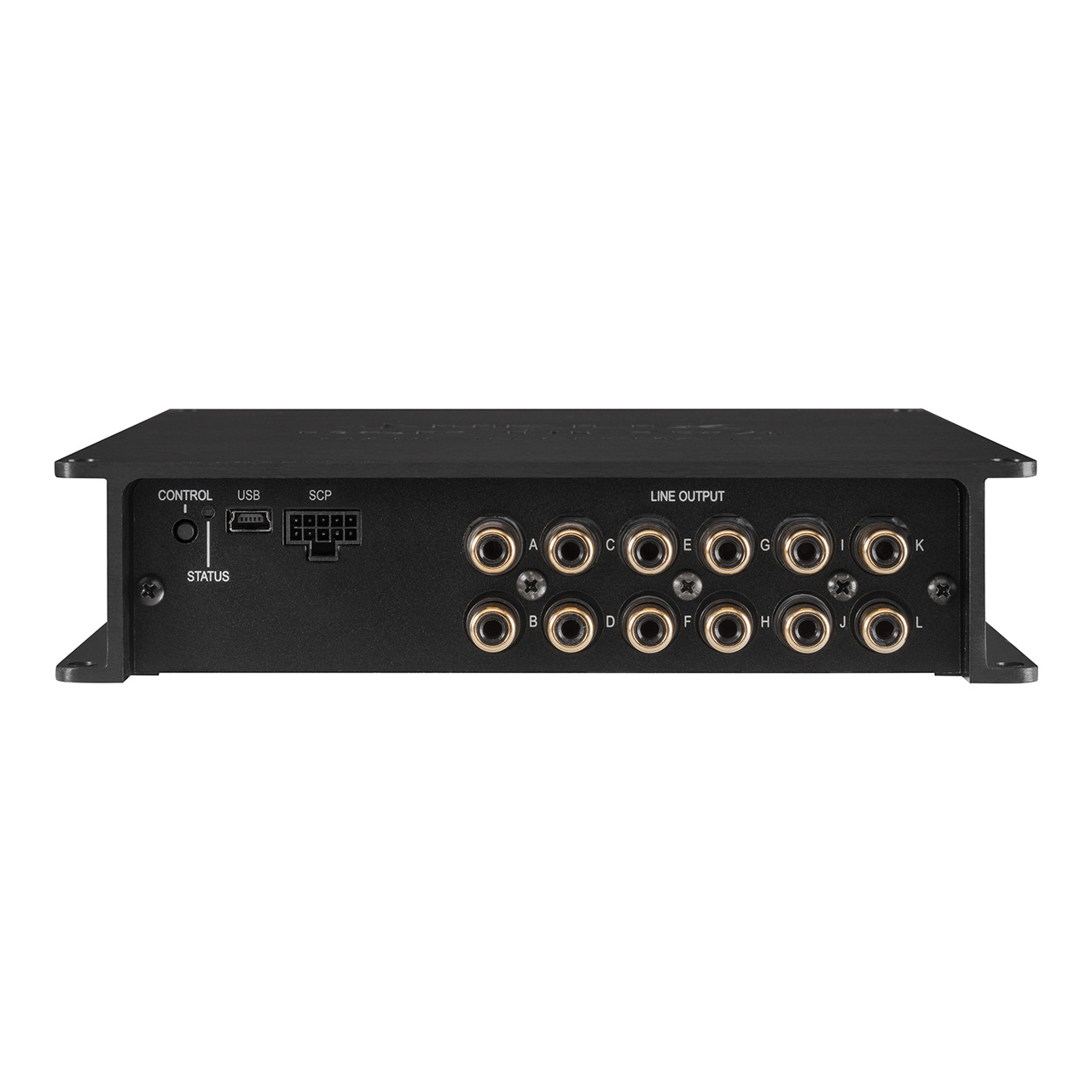

Computing power can only be replaced by even more computing power – which is precisely why the DSP ULTRA S is equipped with two of the most powerful 64 Bit audio signal processors currently available from Analog Devices. With incredible 2.4 billion MAC operations per second, the immense number of internal channels in conjunction with the highest quality sound processing is not even the slightest problem. Therefore, the ULTRA S comes with eight separately processable input channels, eight processable virtual channels and twelve processable output channels as well as numerous new sound features – all this at a sampling rate of 96 kHz, resulting in an audio bandwidth of over 40 kHz.

ACO – Advanced 32 Bit CoProcessor platform
Rapid processing power that‘s not only in the signal path – the particularly powerful 32 Bit ACO platform handles all control tasks and provides the decisive speed boost, especially in data communication with our DSP PC-Tool software, but also in the lightning-fast switching between the up to ten possible sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter, dynamic processing such as Dynamic Loudness Control (DLC) or Remote Tone Control (RTC) are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals from OE radios already containing a sound setup.

Virtual Channel Processing – Modern signal routing
The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits. Audiotec Fischer′s new multi-stage ″Virtual Channel Processing″, in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as ″RealCenter″ or ″Augmented Bass Processing″.

Connectivity at the highest level

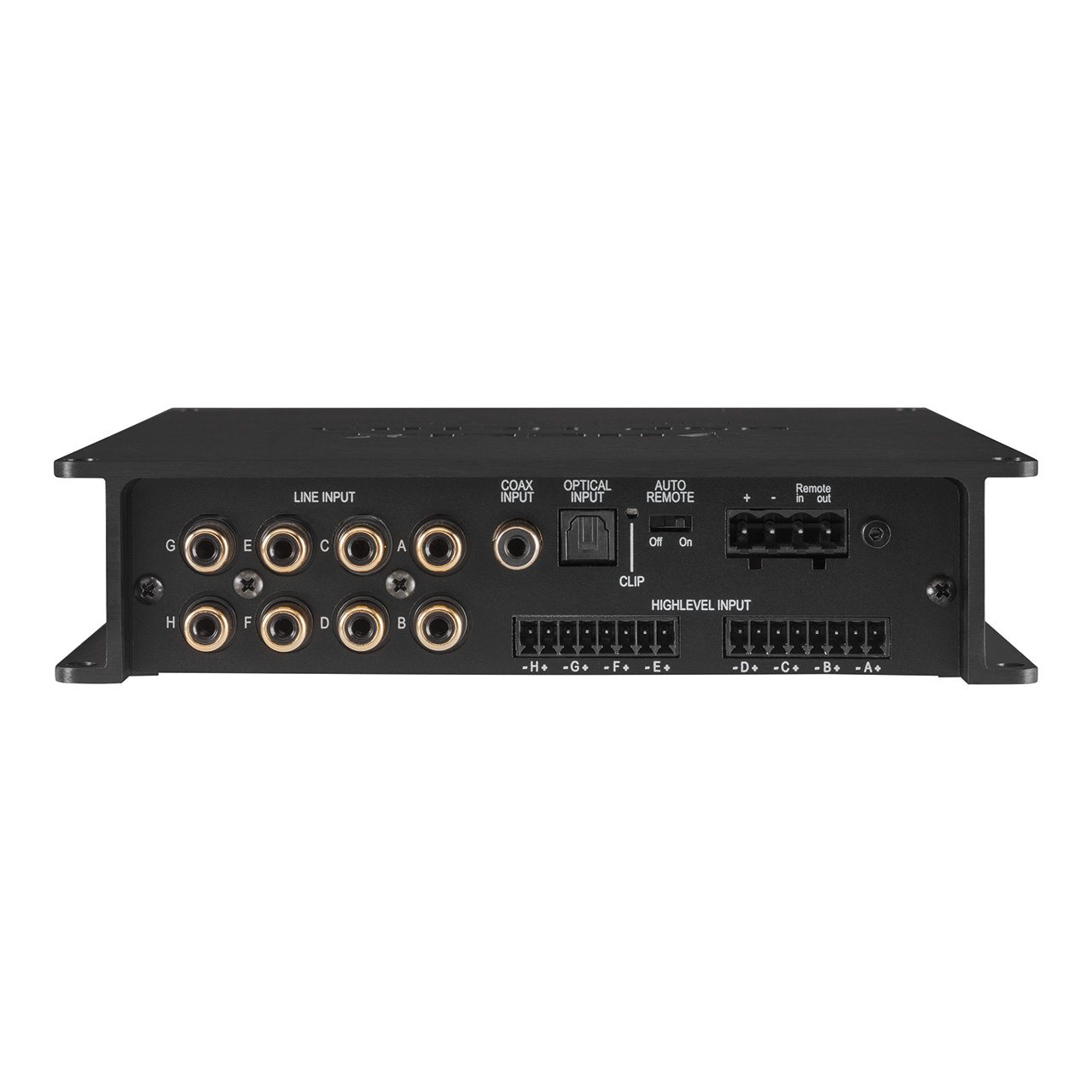

The HELIX DSP ULTRA S is, especially thanks to the HEC slot, highly configurable while our SCP (Smart Control Port) guarantees the optional connection of accessories with integrated power supply as well as special operational reliability. These upgrades allow for even more flexible customization and expansion of your sound system to meet the individual needs and desires of every audiophile user. For easy adaptation to existing factory radios or multi-channel OE sound systems, the DSP ULTRA S is not only equipped with the latest generation ADEP.3 circuit, but also has a particularly wide adjustment range for the input sensitivity. The enormous adjustment range of 1 - 8 Volts (Cinch / RCA) or 4 - 32 Volts (highlevel) enables problem-free adaptation to almost any conceivable analog signal source, even with powerful OE amplifiers.

Elegant, smart and compact
Despite its vast range of functions, the HELIX DSP ULTRA S inspires with its straightforward and timeless design that is still compact – ideal for a simple installation. The sum of its characteristics makes the HELIX DSP ULTRA S the perfect ″tool″ for every uncompromising audiophile music lover with highest demands.
