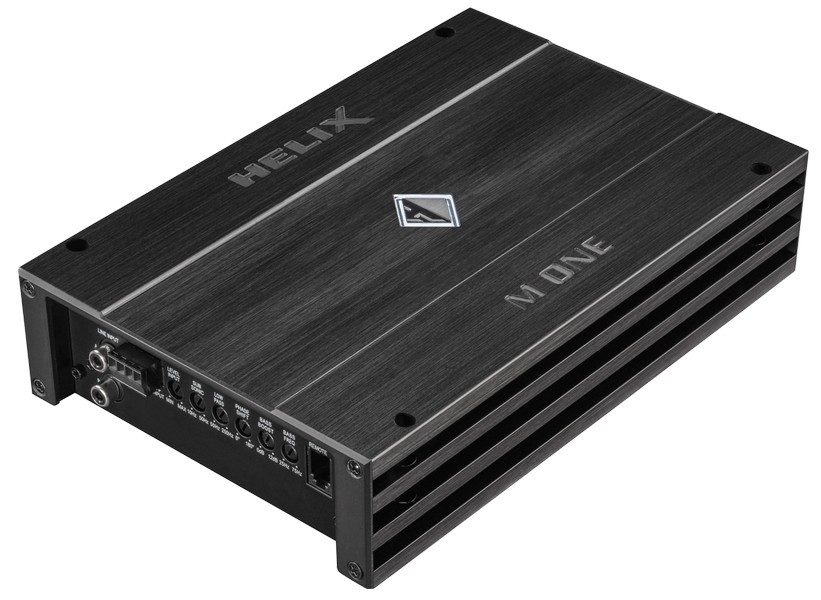

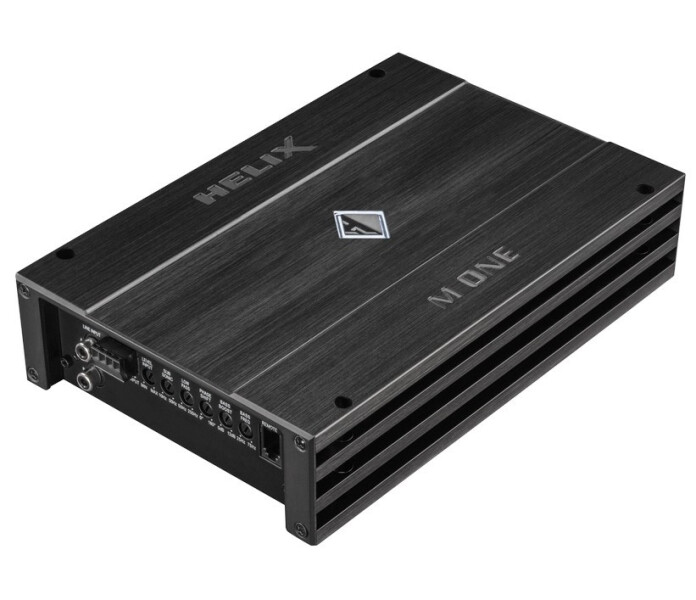

Helix M ONE
Description
Small, efficient and uncompromisingly stable - the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to its super-compact dimensions.
Specifications
@ 4 Ohms 1 x 240 W RMS, 480 W Peak
@ 2 Ohms 1 x 410 W RMS, 820 W Peak
@ 1 Ohm1 x 600 W RMS, 1200 W Peak
Amplifier technologyClass D

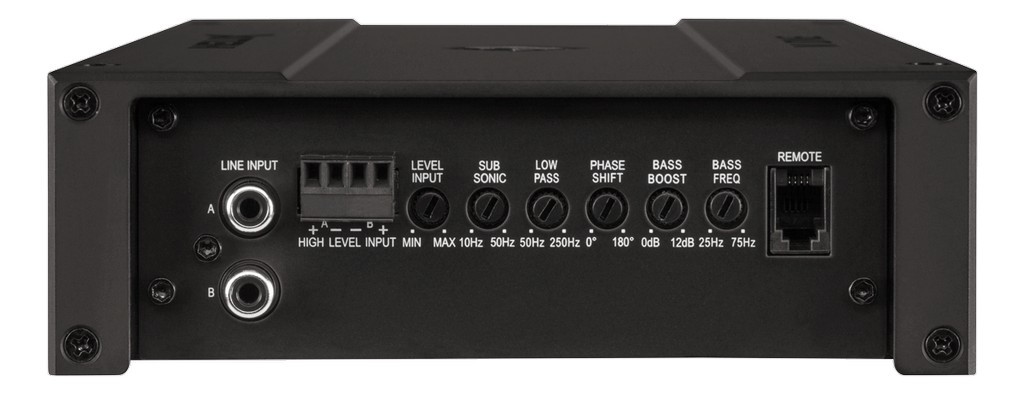

Inputs2 x RCA
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivity RCA 0.5 - 6 Volts
Highlevel input sensitivity 1.1 - 13 Volts
Input impedance RCA 20 kOhms
Input impedance highlevel 13 Ohms
Outputs1 x Speaker output
Frequency response10 Hz - 250 Hz
Bass boost0 - 12 dB @ 25 - 75 Hz
Lowpass50 Hz - 250 Hz adjustable
Bandpass10 Hz - 250 Hz adjustable
Subsonic10 Hz - 50 Hz adjustable
Phase0 - 180° adjustable
Slope subsonic & lowpass 12 / 24 dB/Oct.
Signal-to-noise ratio95 dB (A-weighted)
Distortion (THD)0.20 %
Damping factor100
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current650 mA

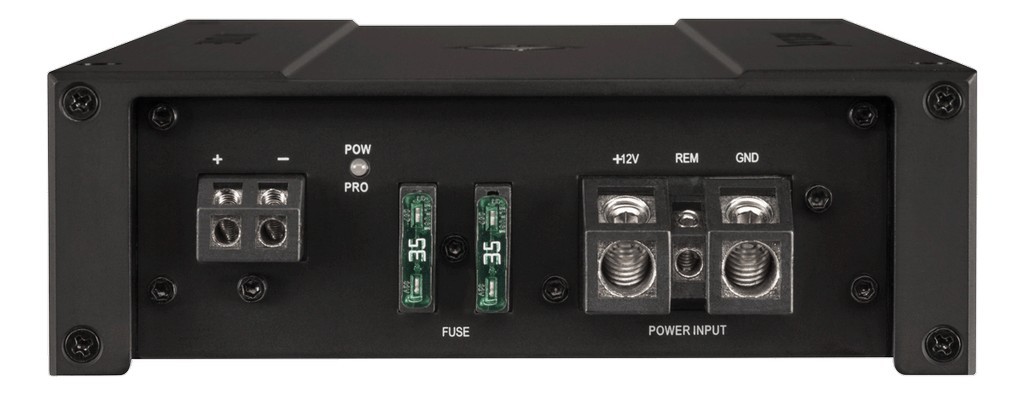

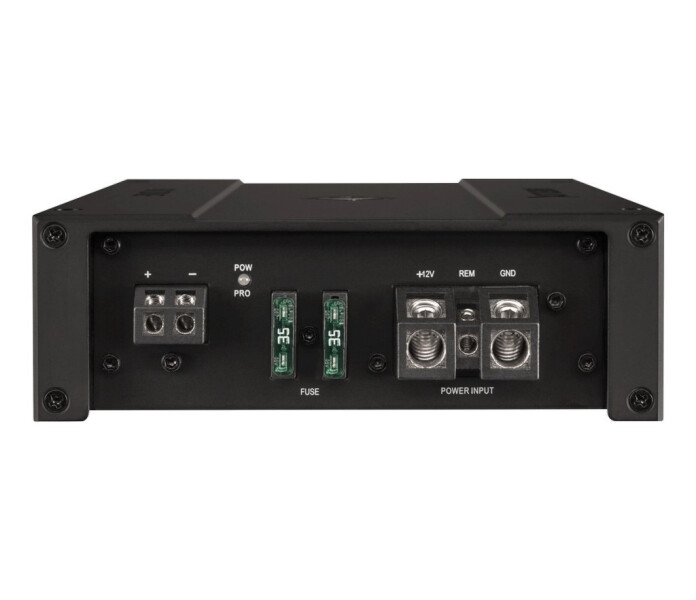

Fuse2 x 35 A Maxi-fuse (APX)
Start-Stop capability
Highlevel input with automatic turn on function
Advanced Diagnostics Error Protection (ADEP)
Bass volume cable remote control
Dimensions (H x W x D)50 x 230 x 154 mm.
