Helix M ONE X
Description
Small, efficient and uncompromisingly stable - the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to its super-compact dimensions.
Specifications
Power RMS ≤ 1% THD+NNormal operation
(One amplifier)TwinPower Link
(Two amplifiers):
- @ 4 Ohms 1 x 400 Watts, TwinPower Link 1 x 1,400 Watts
- @ 2 Ohms 1 x 700 Watts, TwinPower Link 1 x 2,060 Watts
- @ 1 Ohm1 x 1,030 Watts
- Amplifier technologyClass D

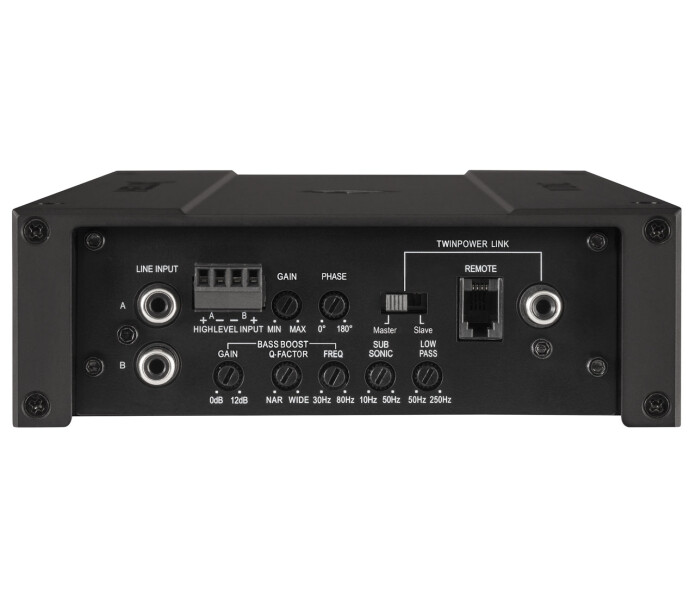

- Inputs2 x RCA / Cinch
- 2 x Highlevel speaker input
- 1 x Remote In
- 1 x Remote control input
- Input sensitivityRCA / Cinch 0.5 - 6 Volts
- Highlevel 1.1 - 13 Volts
- Input impedance RCA / Cinch20 kOhms
- Input impedance highlevel9 - 33 Ohms

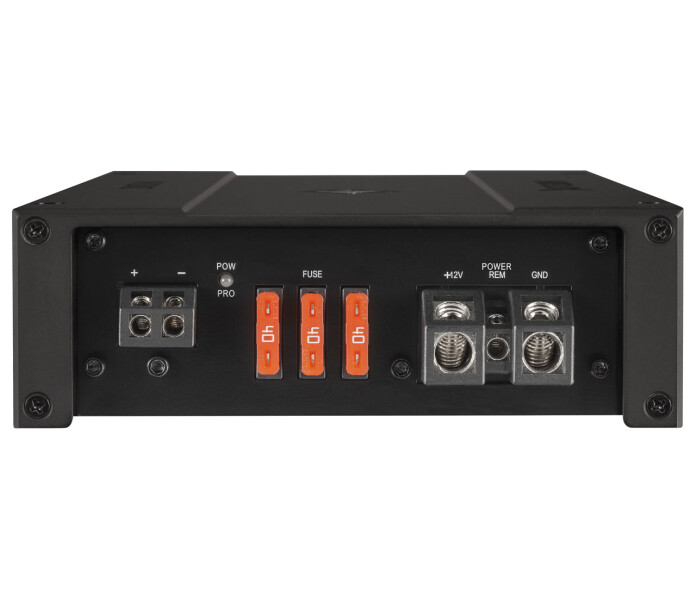

- Outputs1 x Speaker output
- Frequency response 10 Hz - 250 Hz
- Bass boost 0 - 12 dB / 30 - 80 Hz
- Lowpass 50 Hz - 250 Hz adjustable
- Bandpass 10 Hz - 250 Hz adjustable
- Subsonic 10 Hz - 50 Hz adjustable
- Phase 0 - 180° adjustable
- Slope subsonic / lowpass 12 / 24 dB/Oct.
- Signal-to-noise ratio analog input 95 dB (A-weighted)
- Distortion (THD) 0.20 %
- Damping factor 150
- Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
- Idle current 800 mA
- Fuse 3 x 40 A Maxi-fuse (APX)
- Additional features: Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
- Dimensions (H x W x D) 50 x 320 x 154 mm.
