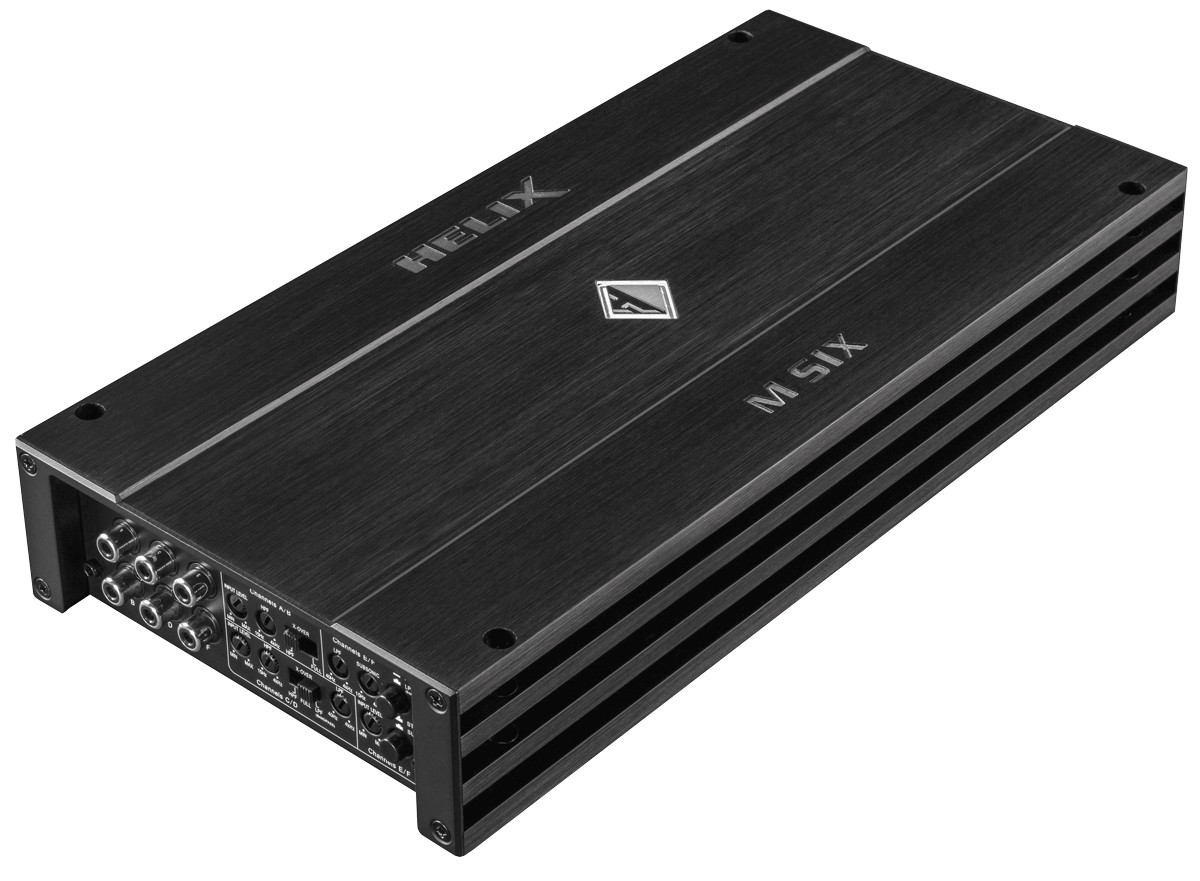

Helix M SIX
Description
One for all – no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice.
With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.
Specifications
Output power RMS / max.
- @ 4 Ohms6 x 100 / 200 Watts
- @ 2 Ohms6 x 100 / 200 Watts
- @ 1 Ohm-
- bridged @ 4 Ohms3 x 200 / 400 Watts
- bridged @ 2 Ohms-
Amplifier technology Class D

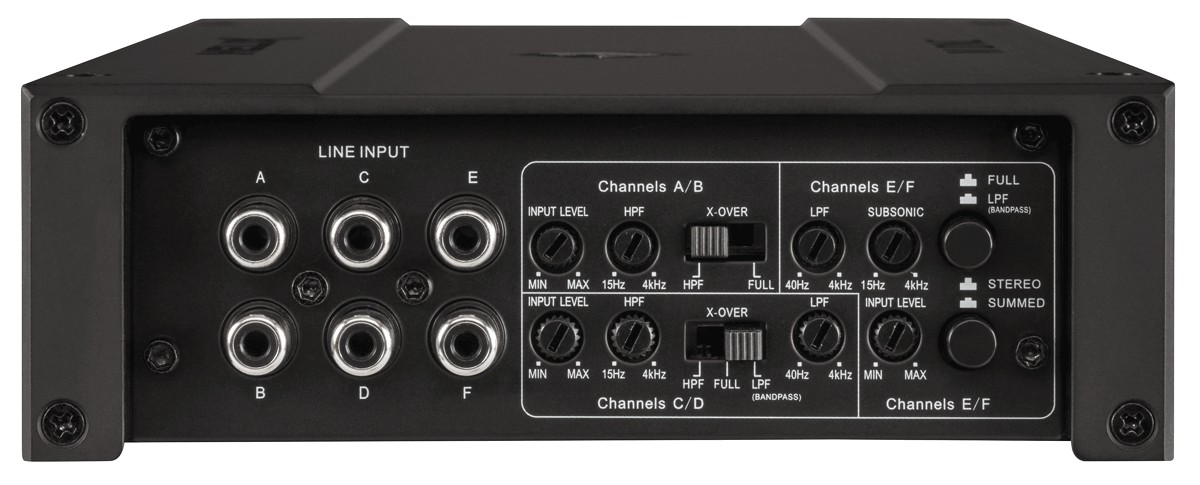

Inputs6 x RCA / Cinch
1 x Remote In
Input sensitivityRCA / Cinch 0.5 - 6 Volts
Input impedance RCA / Cinch20 kOhms
Input impedance highlevel-

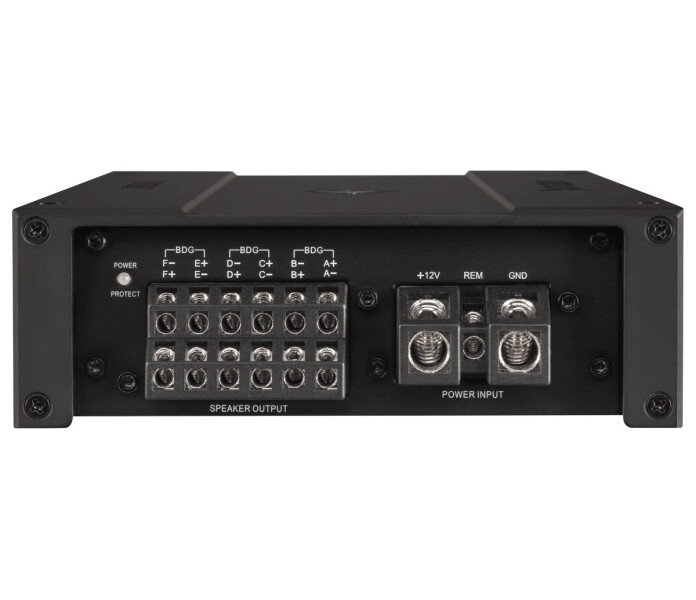

Outputs6 x Speaker output
Output voltage RCA / Cinch-
Signal converter for digital input-
Frequency response10 Hz - 30,000 Hz
Bass boost-
Highpass15 Hz - 4,000 Hz adjustable
Lowpass40 Hz - 4,000 Hz adjustable
Bandpass15 Hz - 4,000 Hz adjustable
Subsonic / HPF
15 Hz - 4,000 Hz adjustable
Phase-
Slope high- / lowpass12 dB/Oct.
Slope subsonic / lowpass-
Signal-to-noise ratio digital input-
Signal-to-noise ratio analog input98 dB (A-weighted)
Distortion (THD)0.05 %
Damping factor100
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current1,550 mA
Fuse2 x 35 A Maxi-fuse (APX)
Additional featuresActive, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability
Dimensions (H x W x D)50 x 320 x 154 mm /
2.00 x 12.60 x 6.06”.
