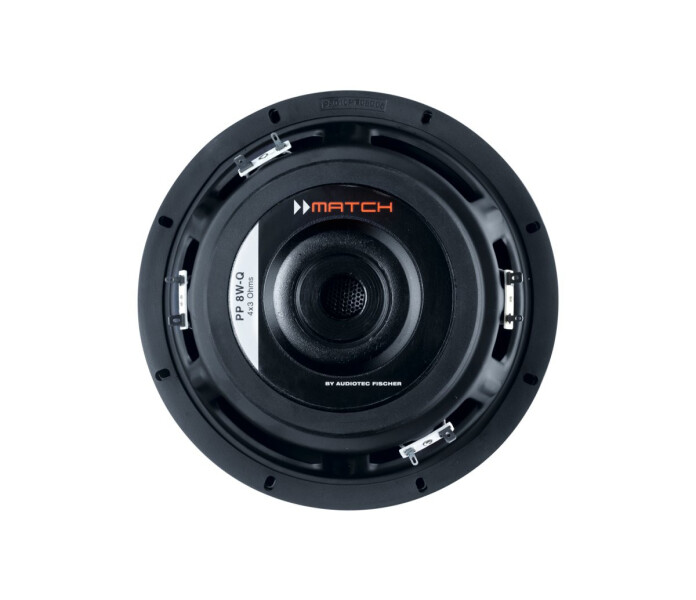

Match PP 8W-Q
Description
You didn′t find the type of enclosure sub you are looking for? - If none of the four MATCH Plug & Play enclosure subs fits in your car with respect to shape and/or size, then you have the chance to build your “personalized” version by yourself. Therefore we offer the woofers PP 72W-D and PP 8W-Q, which are 100% identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.
Specifications
Power RMS / max. P 200 / 400 Watts
Impedance Z 4 x 3 Ω
DC resistance Re 4 x 2.7 Ω
Resonance frequency Fs 37 Hz
Mechanical Q factor Qms 5.40
Electrical Q factor Qes 0.57
Total Q factor Qts 0.51
Compliance Cms 341 µm/N
Equivalent air volume Vas 23 L
Force factor B*I 7.5 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area Sd 222 cm²
Moving mass Mms 53 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 3.3 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 21 mm
Max. linear excursion Xmax +/- 6.5 mm
Outer diameter ø 212 mm / 8.35″
Installation diameter ø 183 mm / 7.2″
Installation depth 105 mm / 4.1″
Recommended enclosure volumes
Sealed box
Net volume -
Lower limiting frequency (-3dB) -
Vented box
Net volume 10 L
Port diameter ø 60 mm / 2.36″
Port area 28 cm²
Port length 25 cm / 9.84″
Port tuning frequency Fb 47 Hz
Lower limiting frequency (-3dB) 45 Hz.
