MATCH PP-HYUNDAI 1.6
Description
MATCH PP-HYUNDAI 1.6

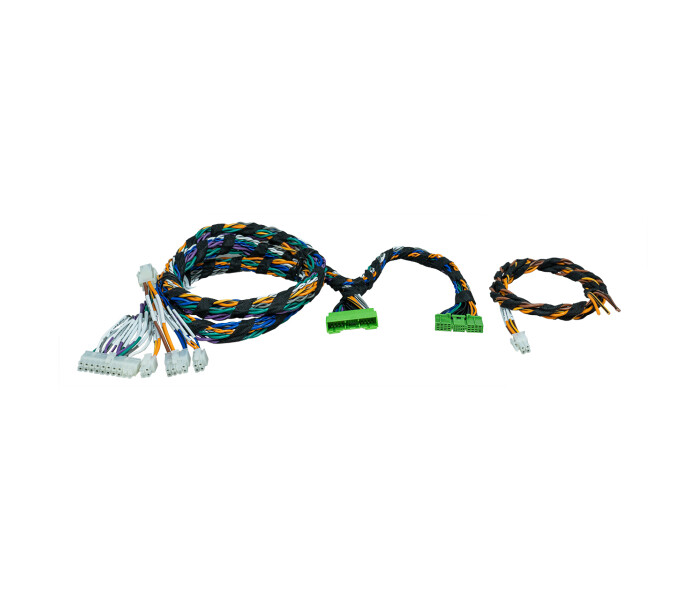

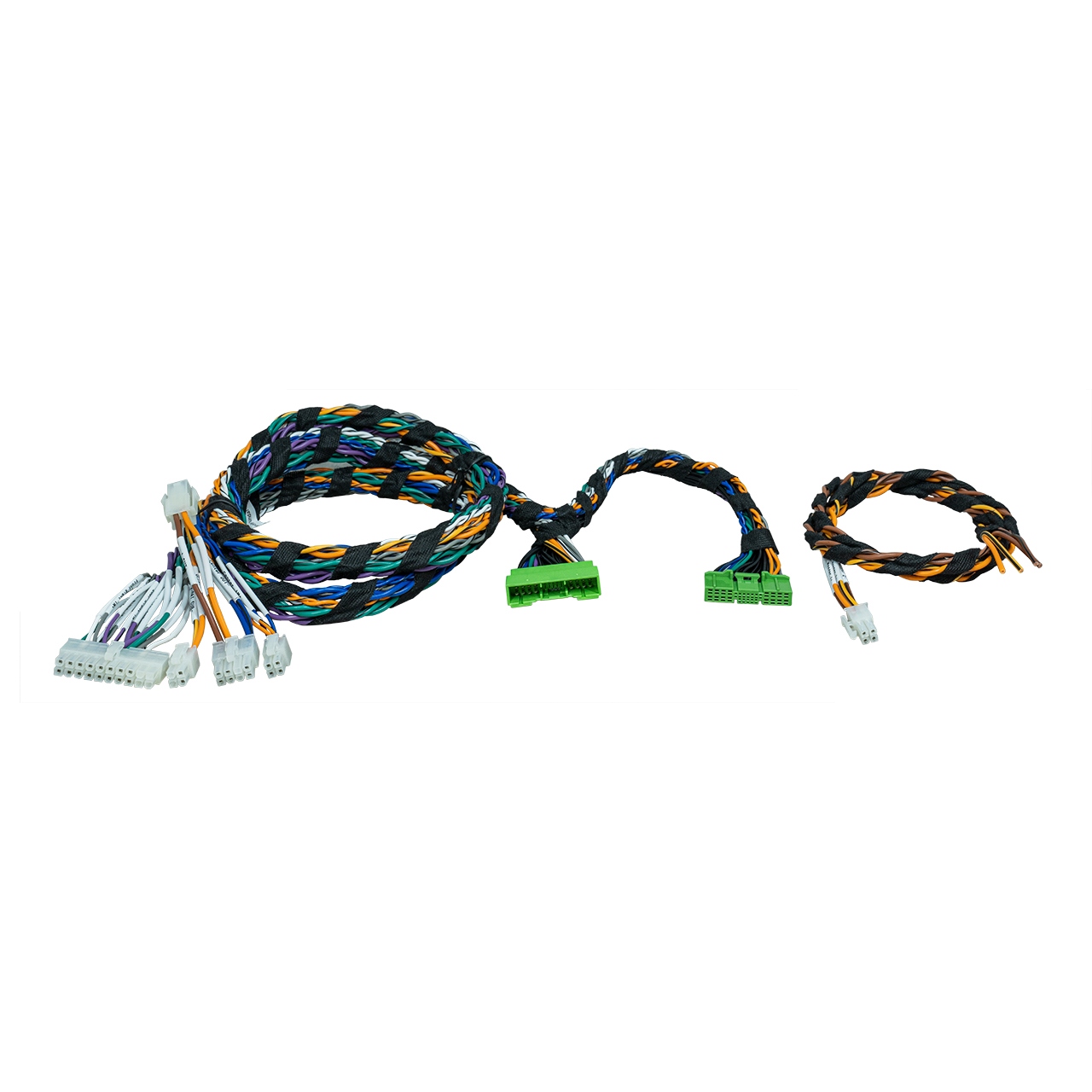

The UPGRADE cable harness PP-HYUNDAI 1.6 enables the simple connection of a MATCH UP 8DSP amplifier to Hyundai IONIQ 5 vehicles with Bose sound system. A connection cable for operating a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series, is also included.
Features
Plug & Play connectors for an easy connection of a MATCH UP 8DSP amplifier
Hyundai system plugs for connecting the vehicle cable harness
0.6 meters connection cable for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
Cable length 1.00 meter
Specifications
Features:
- Plug & Play connectors for an easy connection of a MATCH UP 8DSP amplifier
- Hyundai system plugs for connecting the vehicle cable harness
- 0.6 meters connection cable for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
- Cable length 1.00 meter
Connectors:
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 8DSP
1 x 4-pole MOLEX plug for the connection of the highlevel inputs E – F of the UP 8DSP
1 x 8-pole MOLEX plug for the connection of speaker outputs E – H of the UP 8DSP
1 x connection cable (0.6 meters) for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
1 x 28-pole Hyundai system jack
1 x 28-pole Hyundai system plug
