MATCH PP-MB 1.9BUR
Description

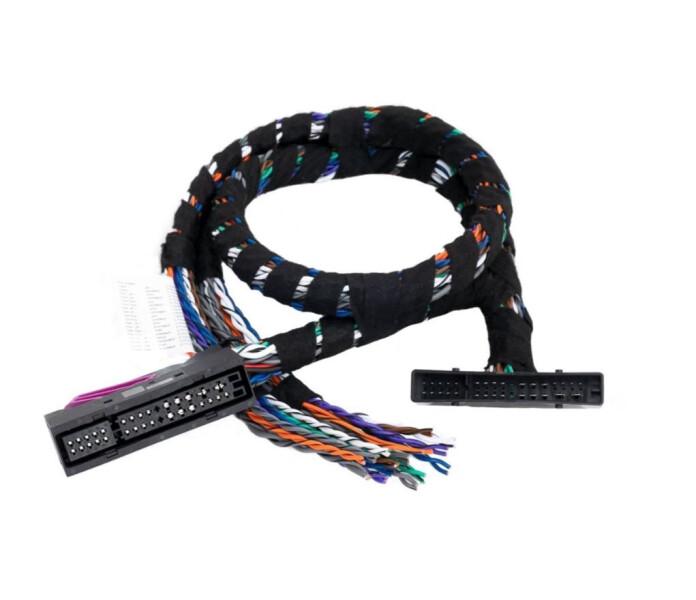

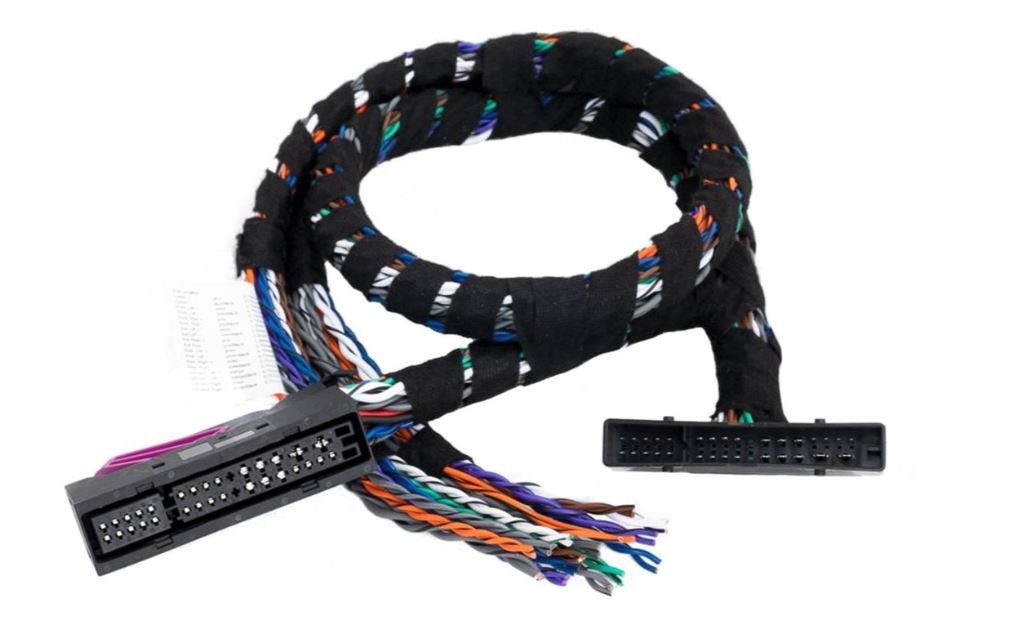

The universal 9-channel Plug & Play cable harness PP-MB 1.9BUR allows an easy connection of an DSP amplifier like the HELIX V EIGHT DSP MK2 or V TWELVE DSP to selected Mercedes car models with factory-equipped Burmester sound systems - compatible with most car models with a manufacturing date above 2014 and 9-channel Burmester sound system / 13 speakers.
The cable is equpped with MOLEX connectors for future plug & play applications but for universal applications all wires are definated by a name label.
Specifications
Connections:
1 x 32-pole system connector with pig-tail cable harness and wire labeling
1 x 32-pole system jack with pig-tail cable harness and wire labeling
Cable color codes for W205 / X253 / W213:
White = Front Left
Gray = Front Right
White 1.5mm2 = Midbass Left
Gray 1.5mm2 Midbass Right
Blue = Center
Green = Rear Left
Purple = Rear Right
Orange = Rear Fill Left
Brown = Rear Fill Right.
