MATCH PP-MB 1.9MBUX-BUR
MBUX-connection for connecting Mercedes radios with Mercedes-Benz User Experience (MBUX)
Cable length 1.00 meter
Description

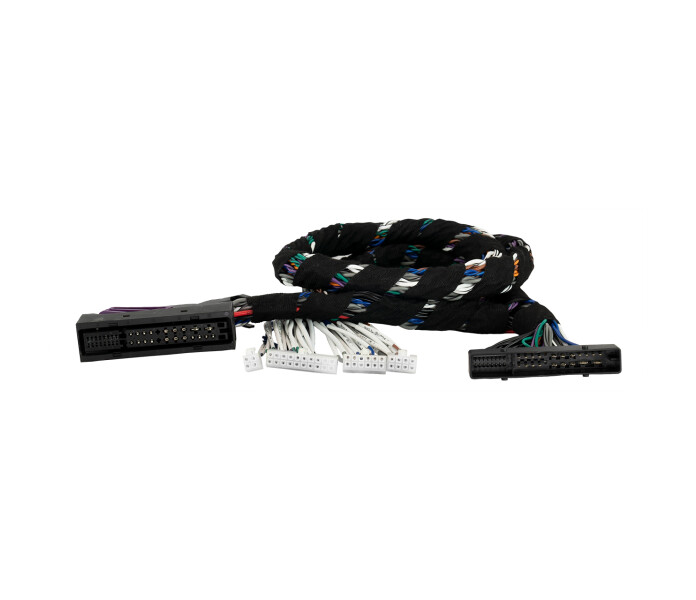

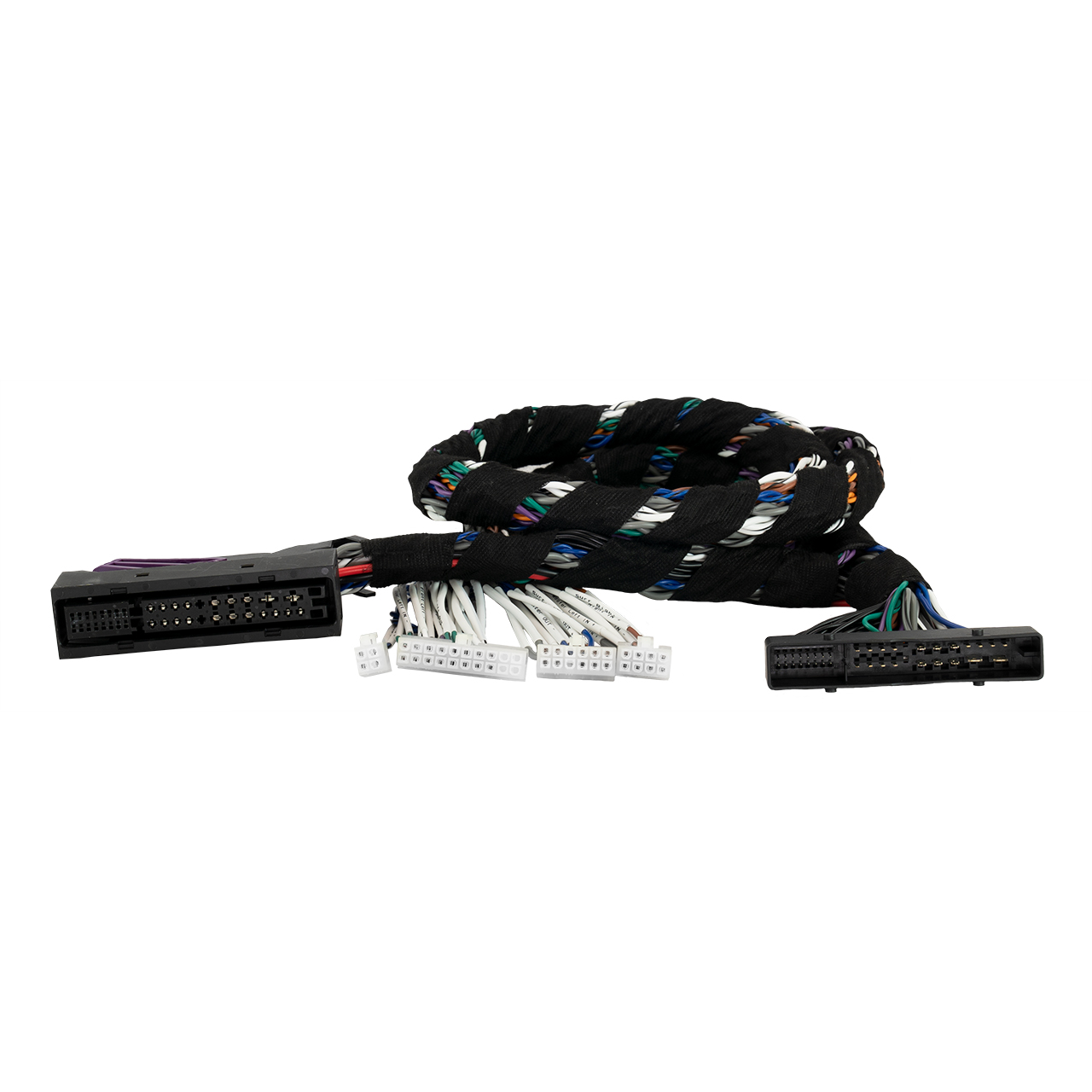

The 9-channel UPGRADE cable harness PP-MB 1.9MBUX-BUR enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with Burmester sound system and MBUX Radio (Mercedes-Benz User Experience).
Specifications
Cable length
1.00 Meter.
Connections:
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP
1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module
1 x 38-pole Mercedes system jacket
1 x 38-pole Mercedes system plug
Compatibility
For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
Suitable for Mercedes vehicles with Mercedes-Benz User Experience (MBUX)
Compatible with factory installed Burmester sound systems with MBUX radio.
