Match PP-MQS 2.4
Description
The modular Plug & Play cable harness PP-MQS 2.4 is made for a space-saving connection of a MATCH amplifier with 20-pole System Connector to an OEM head unit with 52-pole Quadlock connection such as Mercedes, Volkswagen etc. For connecting the power supply of older 40-pole Quadlock systems (e.g. Power Quadlock) an additional adaptor is included in delivery.
Features
Plug & Play plug connector for an easy connection of a MATCH amplifier with 20-pole System Connector
MQS-connectors for signal pick-up / speaker feed
Quadlock-connector for power supply
Integrated fuse
Cable harness length 2.00 meters
Specifications
Cable harness length
2.00 meters
Connections
1 x 1 x 20-pole MOLEX male connector for connecting a MATCH amplifier with System Connector input
1 x 8-pole MQS male connector for feeding the speakers
1 x 8-pole MQS female connector for signal pick up
1 x 2-pole mal connector for connection to the power supply
2 x male connector for connection of the power supply
Scope of delivery

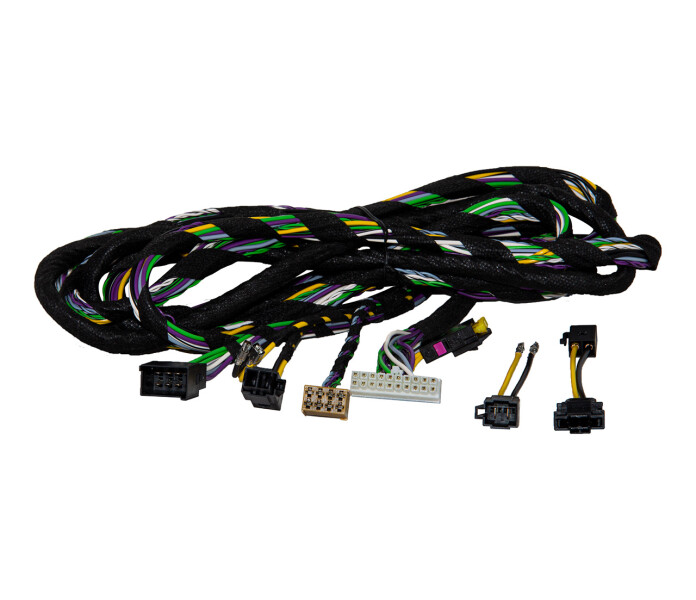

1 x Modular Plug & Play cable harness MATCH PP-MQS 2.4 (2.00 m)
1 x Adaptor for the power supply of older Quadlock systems
