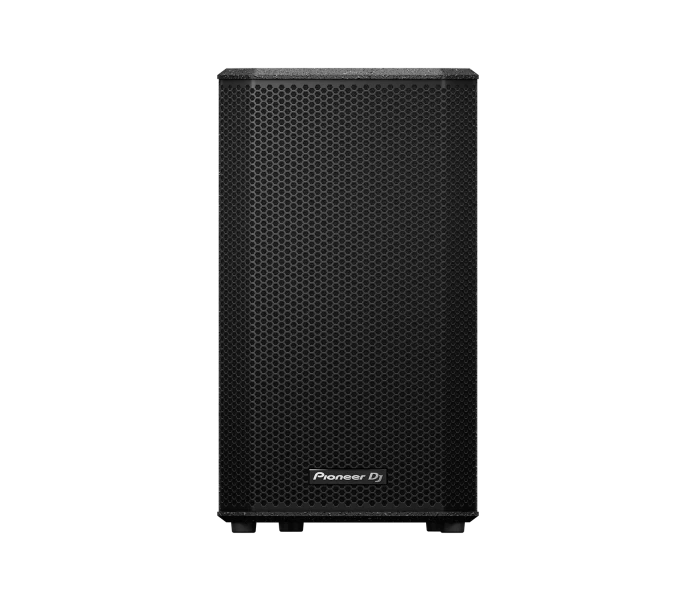

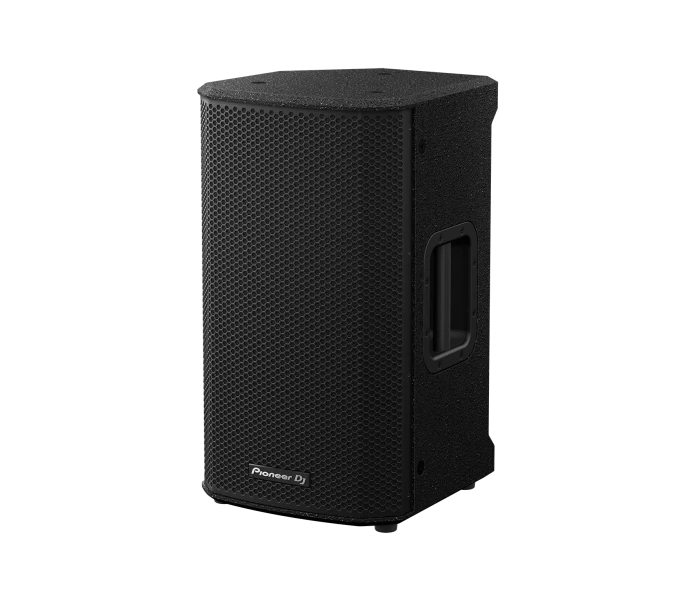

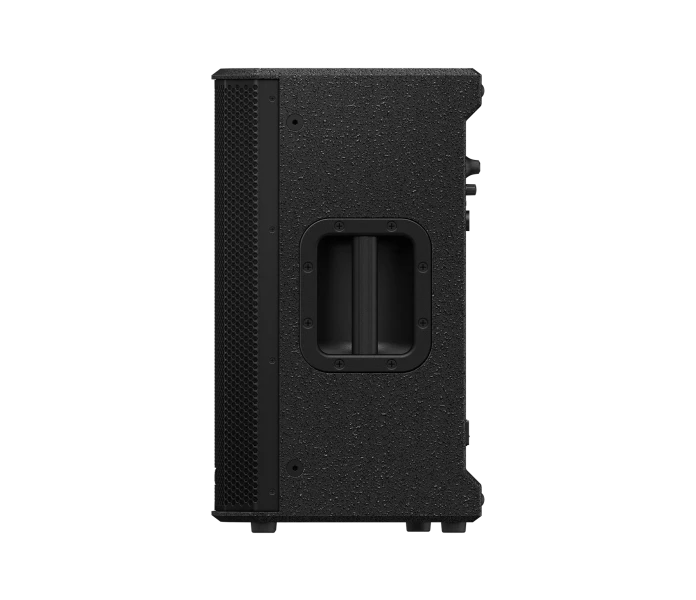

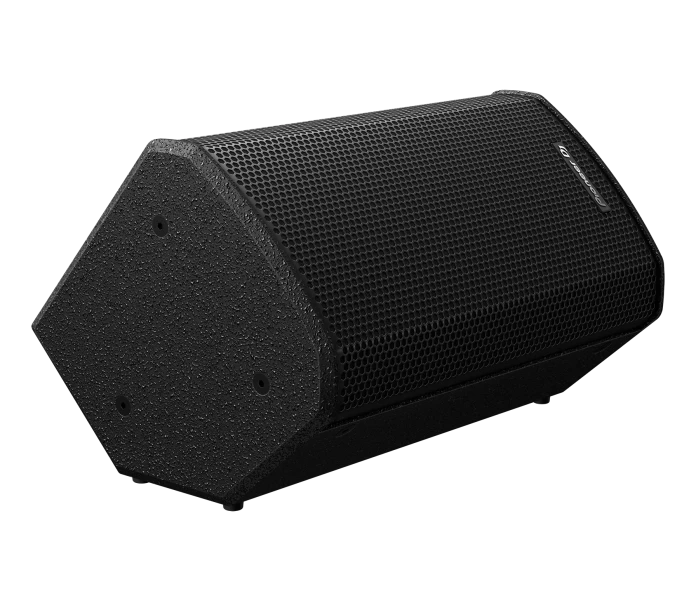

Pioneer DJ - XPRS102

EAN: 4573201242570
XPRS102
10″ Active loudspeaker
1″ compression driver
2000 W Class D amplifier
DSP controls
50 Hz–20 kHz
Read more
1 pcs
Description
Specifications

Description

The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.

The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.

Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments.

Each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.

The XPRS102 pairs a 10” woofer and 2.5” voice coil with a 1” exit compression driver and 1.75” voice coil to deliver pristine audio performance. Complete with a maximum sound pressure level (SPL) of 129 dB and frequency response of 50 Hz–20 kHz, the XPRS102 full range speakers help ensure music and spoken word reproduction is accurate and performs as intended.

Specifications

Main Features
Type
10 inch 2-way active loudspeaker
Amplifier Output
Class D
2000W peak
Accessories
XPRS102 x 1 (not sold as a pair)
Powerd cord
Quick start guide
Important Safety Precautions
Specifications
Power supply
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
299 mm
Depth
310 mm
Height
520 mm
Weight
15.5 kg
Frequency Range
50 - 20000 Hz
System characteristic
DSP modes
Factory Presets (4 types)
Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4-band equalizer)
User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
129 dB
Cross Over Frequency
2 kHz

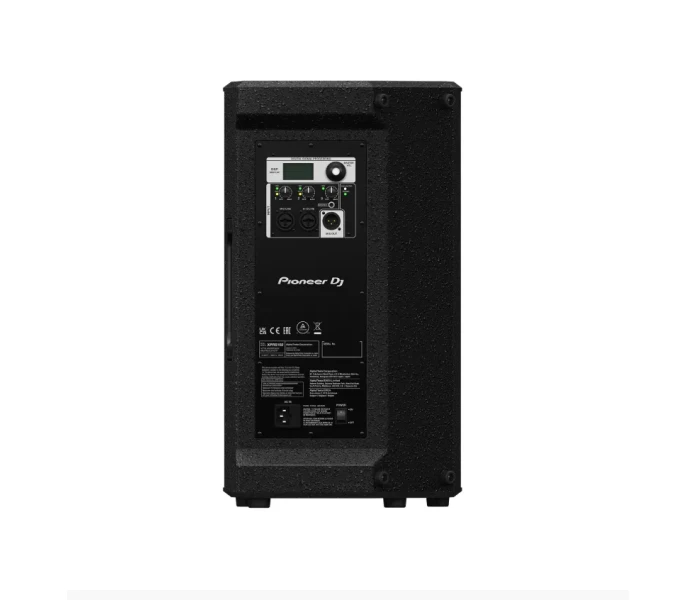

Terminals
Inputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)
Speaker
Driver
10 inch ferrite LF cone driver
1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
1 metal handle (on left side)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)
Protection
Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
