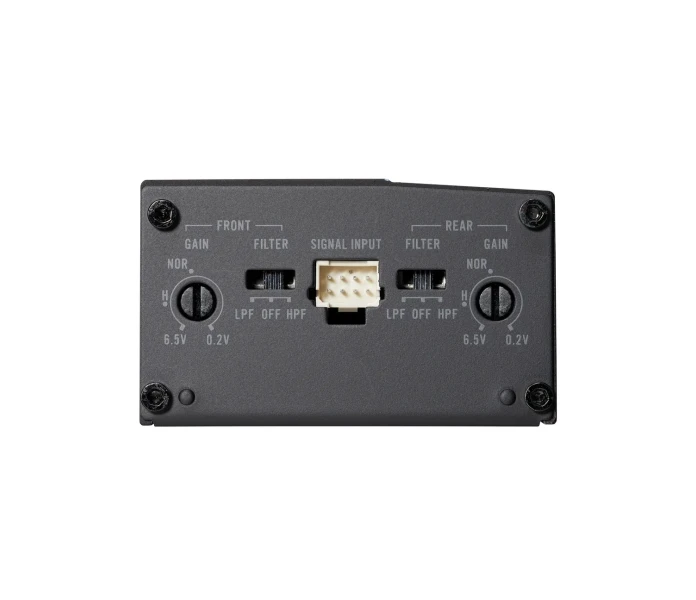

Pioneer GM-DX104

GM-DX104
Small Size – Big Power
4 x 45W / 2 x 90W
Speaker Line input
Read more
Description
Specifications
Manuals

Description

Experience unparalleled sound quality with compatibility for high-resolution audio sources, delivering rich detail, an expansive soundstage, and stunning realism.

Engineered with high-performance operational amplifiers, the GM-DX104 minimizes noise in small-signal circuits to produce crystal-clear tones across a wide bandwidth.

This compact amplifier also offers the flexibility to amplify 4, 3, or 2 speakers by bridging or not bridging the outputs, resulting in available power of 4x 45 watts RMS at 4 ohms or 90 watts RMS when bridged.

Its compact, energy-efficient design and high-voltage compatibility ensure effortless installation in virtually any vehicle, making it the ultimate choice for audiophiles seeking exceptional performance and versatility.

Engineered for compatibility with high voltage systems up to 16V, the GM-DX104 is an ideal solution for electric vehicles (EVs) and other advanced applications. Its low current consumption, averaging only 1.6 amps, ensures efficient operation without excessive power draw. The circuit design incorporates carefully selected components optimized to deliver reliable, stable audio performance and exceptional energy efficiency from 10.5V to 16V, making it an excellent choice for any vehicle equipped with an Auto Start/Stop feature.

Specifications

Bridgable:
Yes

Class:
D

Grounding System:
Negative

Power Source:
14.4 V DC (10.5 V to 16.0 V)

Protection Control system:
Yes

Terminal Type:
Removable

Unit Weight:
1.2 lbs

Allowable Load Impedance:
2 ohm to 8 ohm allowable

Avg Current Consumption (amps x #ch):
1.6 A (4 Ohms x 4ch),1.6 A (2 Ohms x 4ch),1.6 A (4 Ohms x 2ch Bridged)

Continuous-Power-Output:
45 W x 4-Channel - 4 Ohm, 90 W x 2-Channel - 4 Ohm Bridged

Frequency Response Channel:
10Hz to 40kHz (+0dB,-3dB) A/B Ch

Fuse Rating:
15 A

High-Pass Crossover frequency:
80 Hz (LPF/OFF/HPF)

High-Pass Slope (dB/octave):
-12 dB/oct

Low-Pass Crossover frequency:
80 Hz (LPF/OFF/HPF)

Low-Pass Slope (dB/octave):
-12dB/oct

Maximum Power Output:
100 W x 4-Channel (4 Ohm),200 W x 2-Channel (4 Ohm Bridged)

RCA Inputs:
4-Channel

Signal to Noise:
93 dB

Speaker Line input Sensor:
Yes
