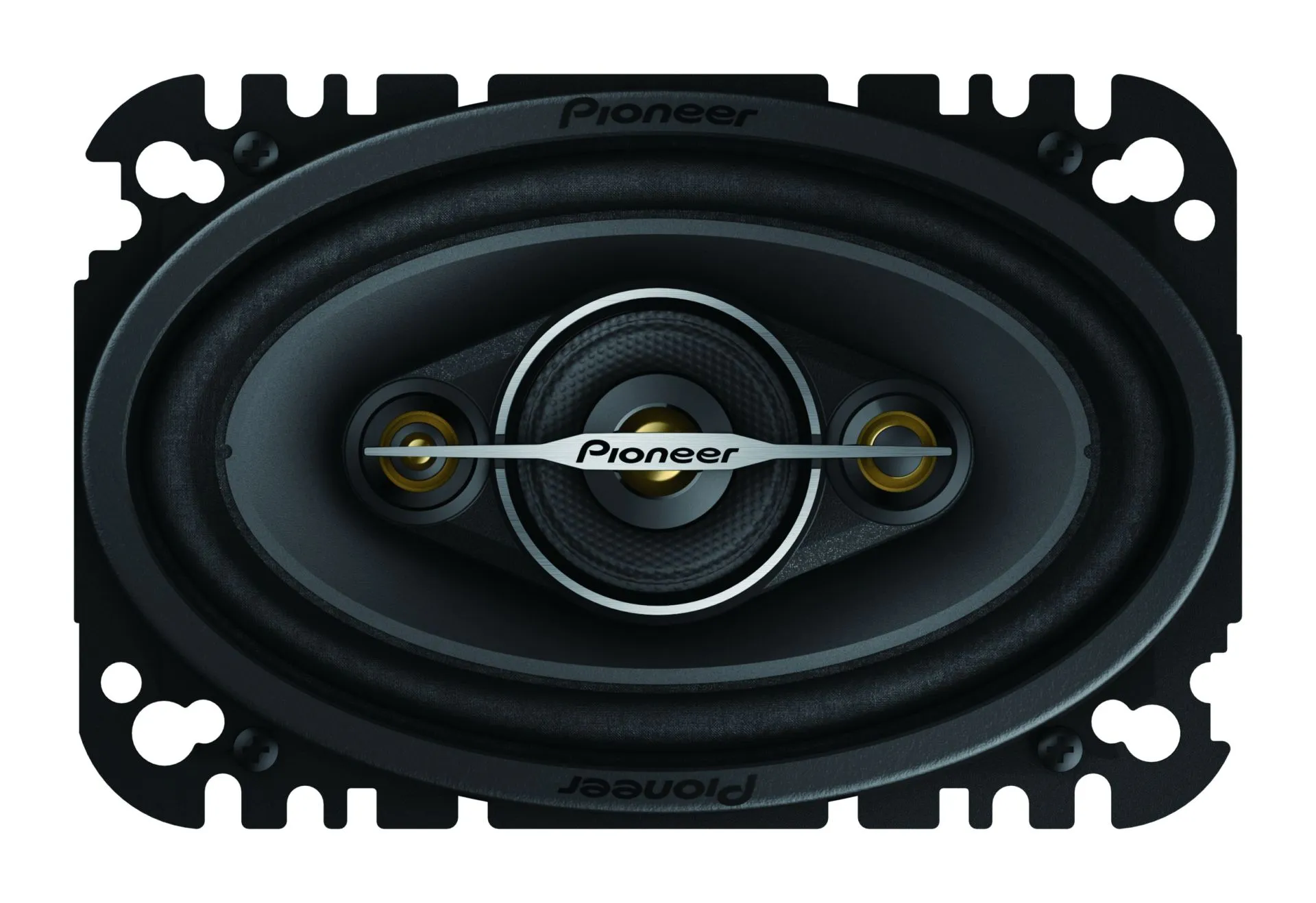

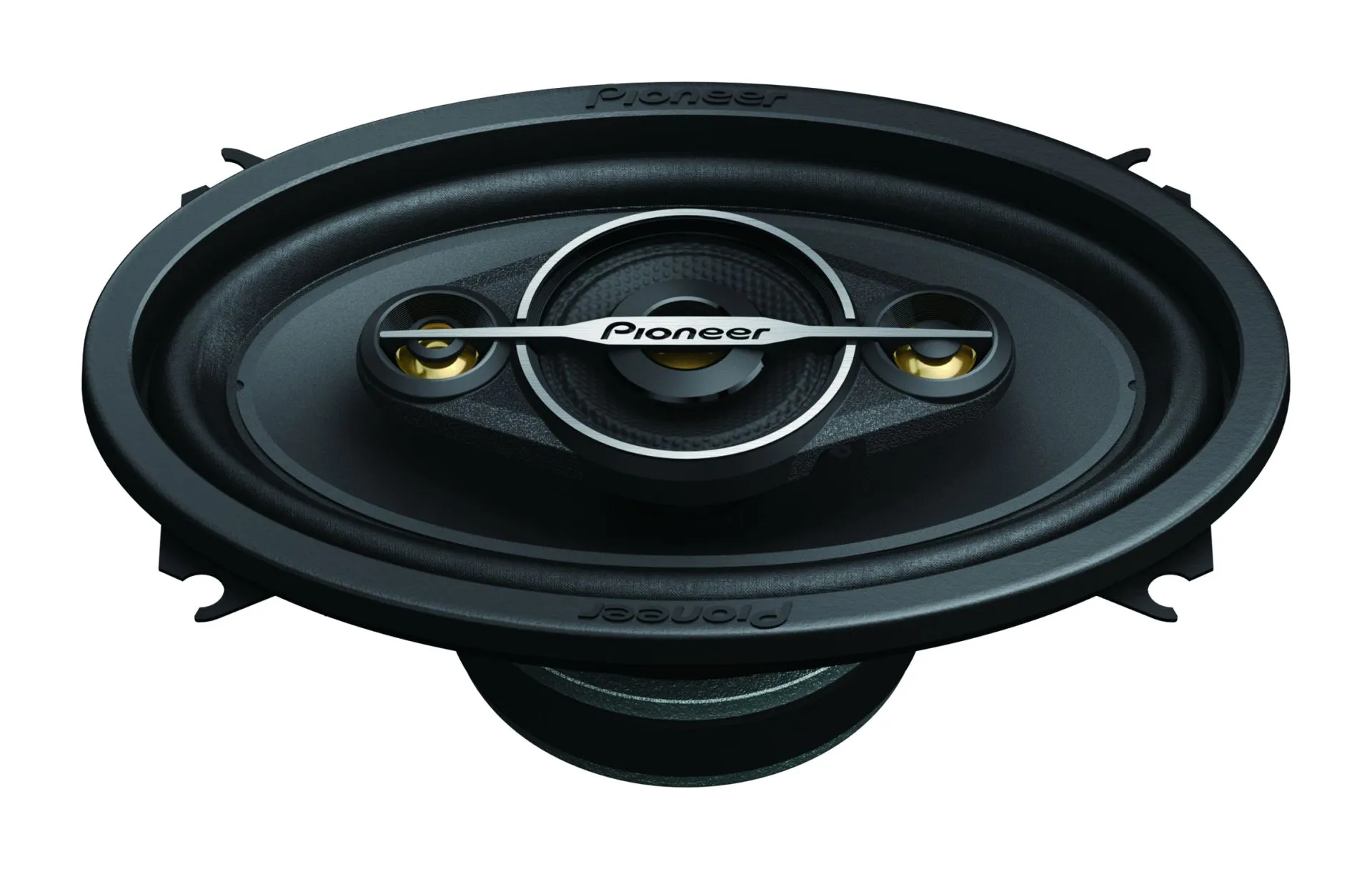

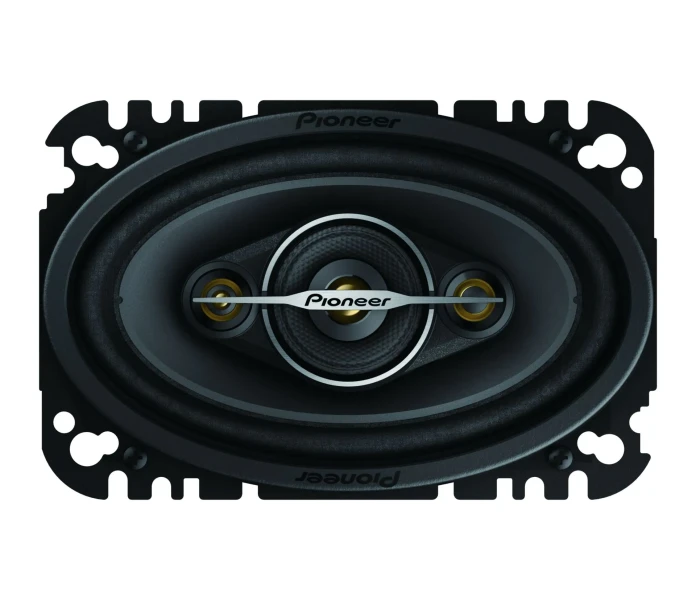

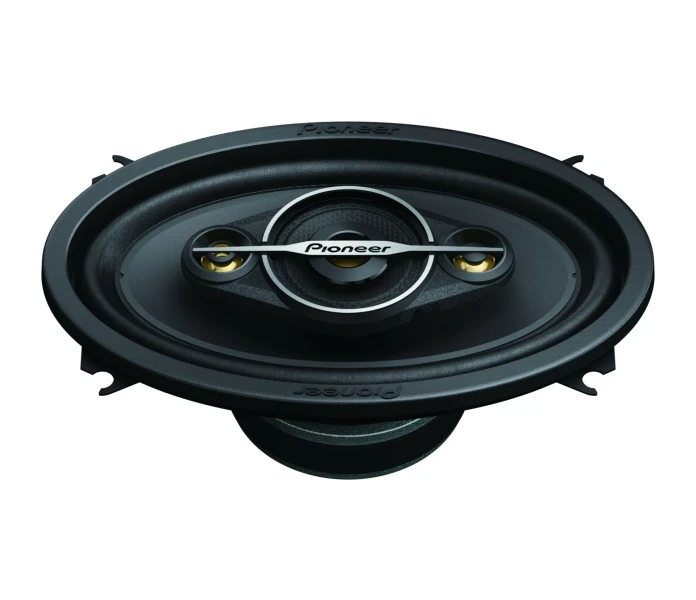

Pioneer TS-A4671F
TS-A4671F
4 x 6″
210W
4 Ohm
210W
4 Ohm
Read more
Description
Specifications
Description

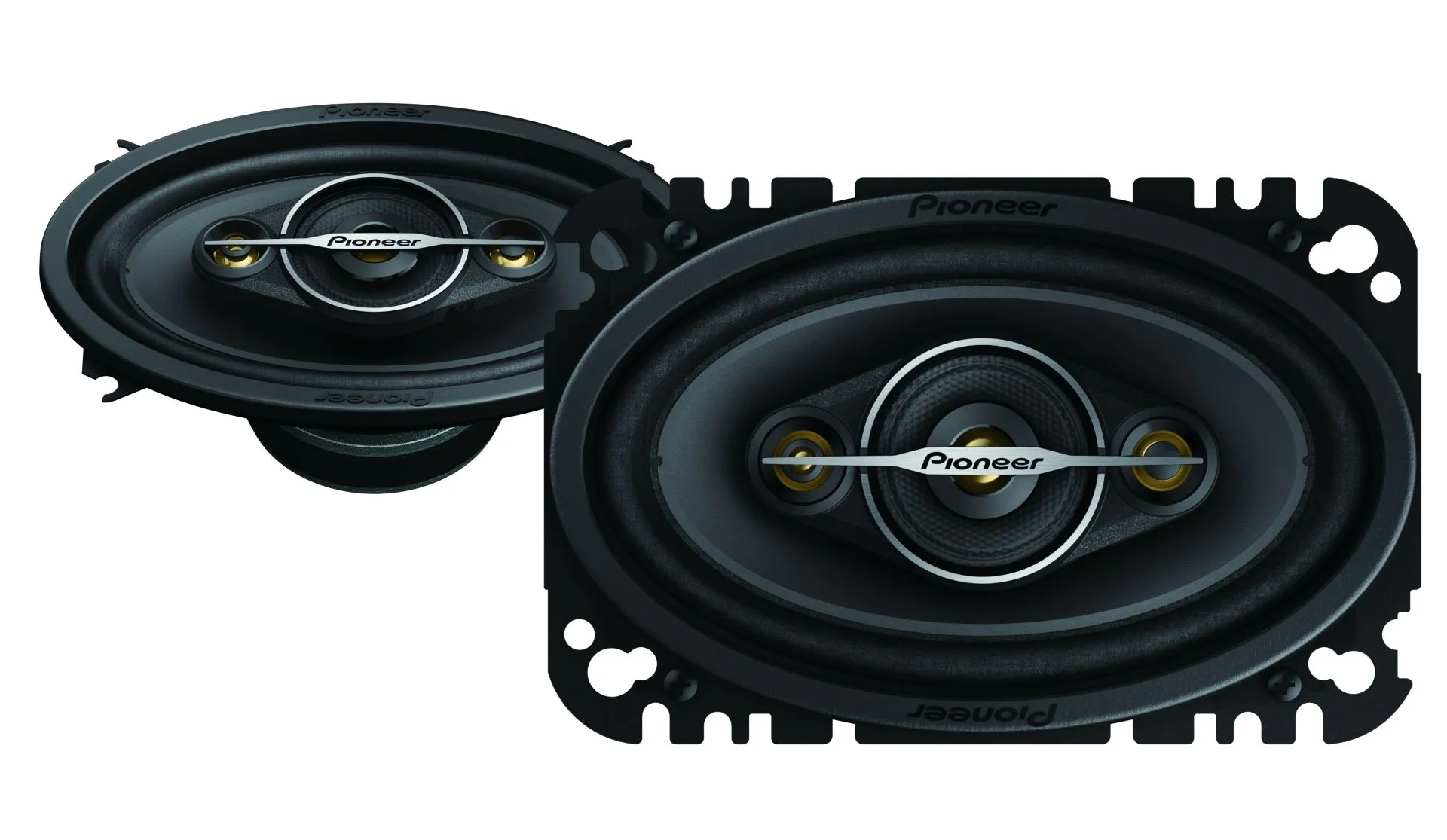

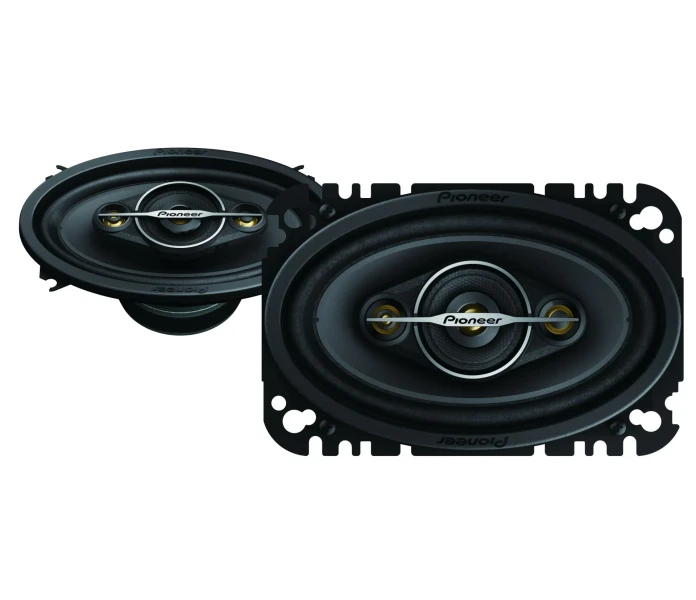

4″ x 6″ - 4-way, 210 W Max Power, Carbon/Mica-reinforced IMPP™ cone, 11mm Tweeter and 11mm Super Tweeter and 1-5/8″ Cone Midrange - Coaxial Speakers (pair)
Specifications
System Type
4-way Coaxial
Sound Pressure Level (Sensitivity)
88 dB (+- 1.5dB)
Frequency Range
34 Hz to 49 kHz
Continuous Power Handling (RMS)
30 Watts
Maximum Peak Power Handling
210 Watts
Nominal Impedance
4 ohms

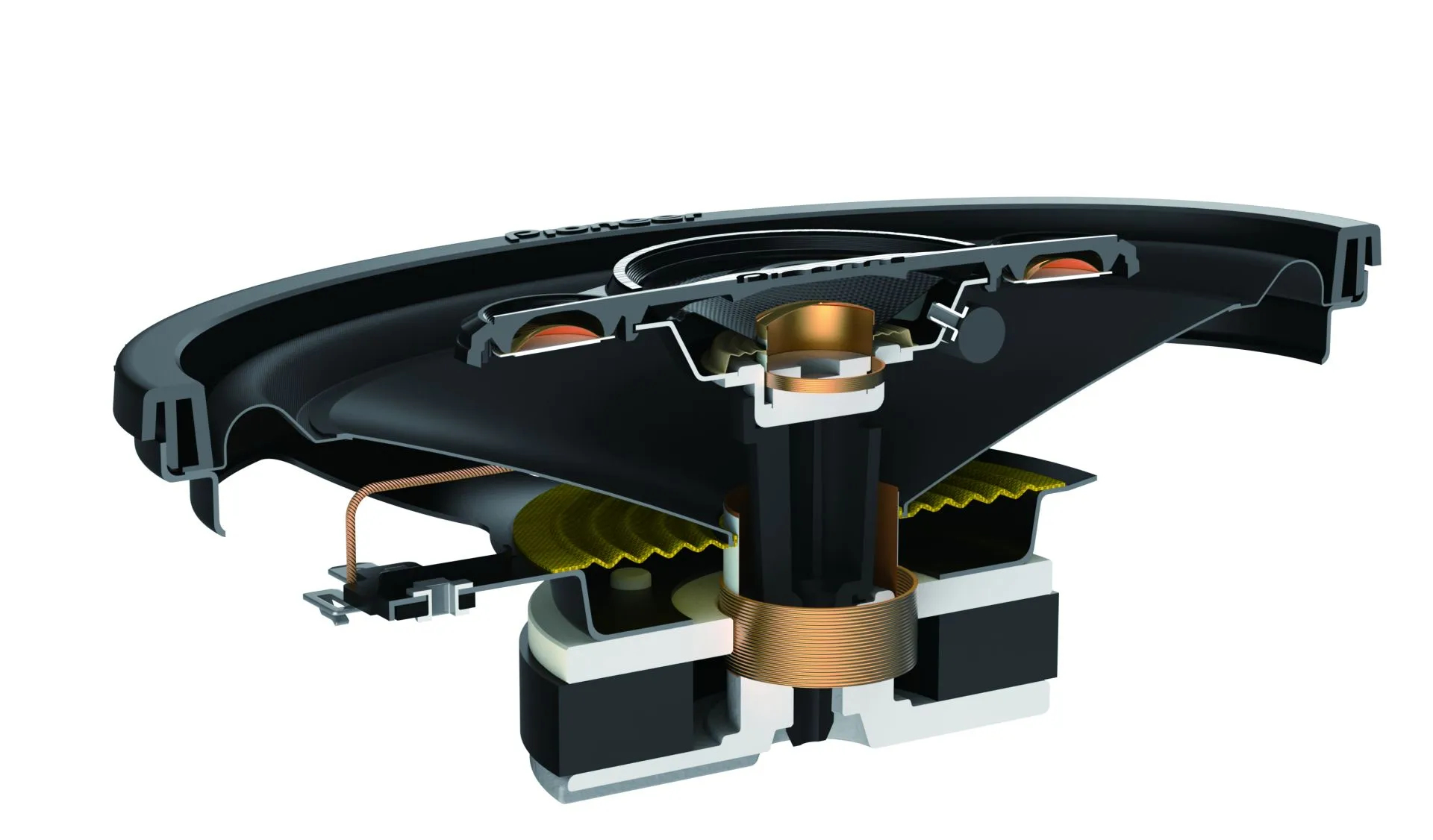

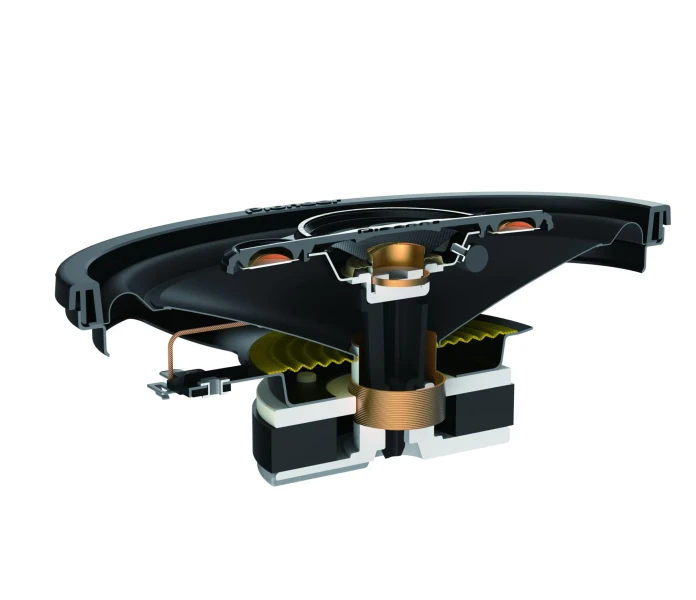

Woofer
Diameter
6 x 4″
Cone Material
Carbon and mica reinforced IMPP
Surround Material
Rubber coated cloth
Basket Material
Iron Plate Press
Magnet Material
Ferrite
Magnet Weight
4.4 oz
Voice Coil Bobbin
Glass Imide
Voice Coil wire
Copper

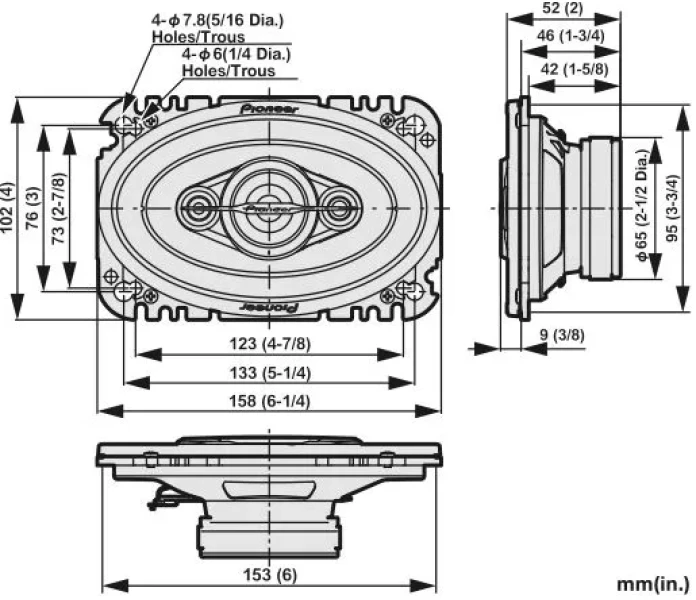

Mounting Depth
1-5/8″ (Shallow basket)
Tweeter
Type
Twin Polyethylene terephthalate (PET) dome
Diameter
11 mm (Super) and 11 mm
