Pioneer TS-W3010PRO

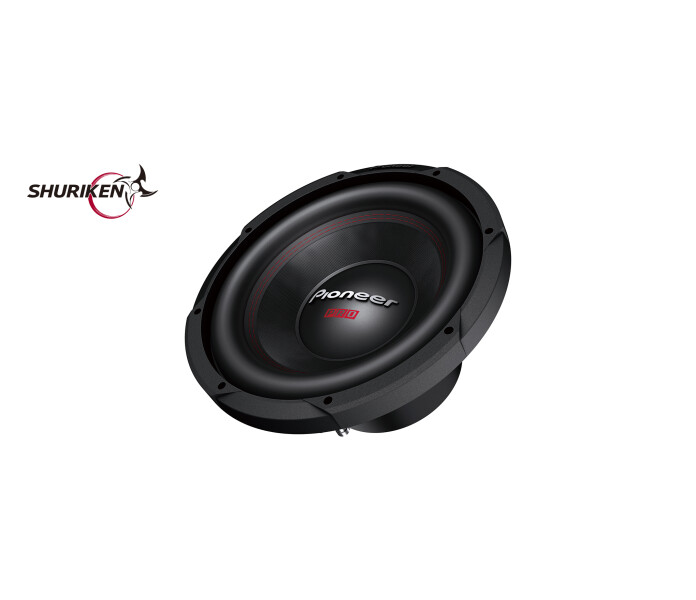

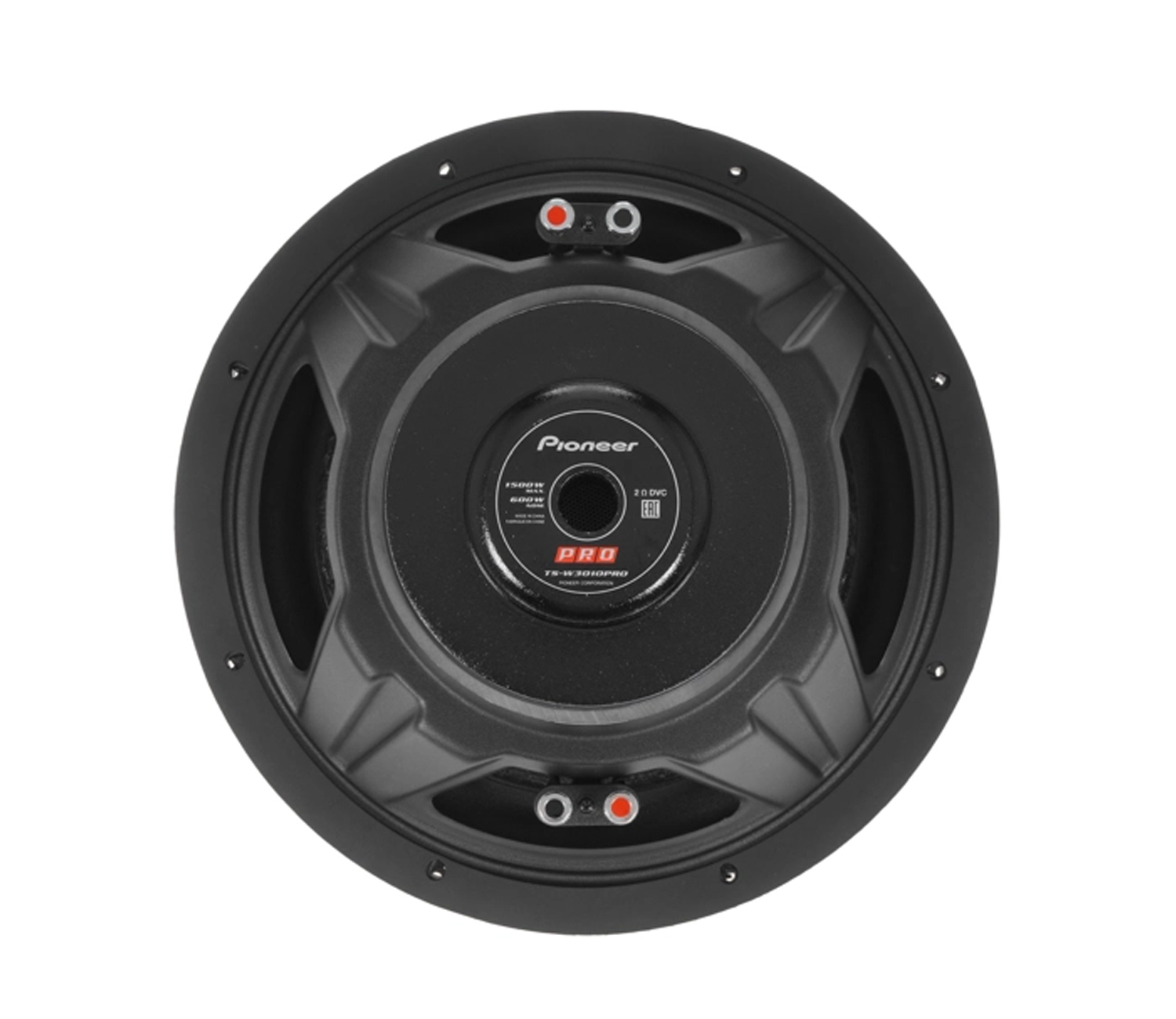

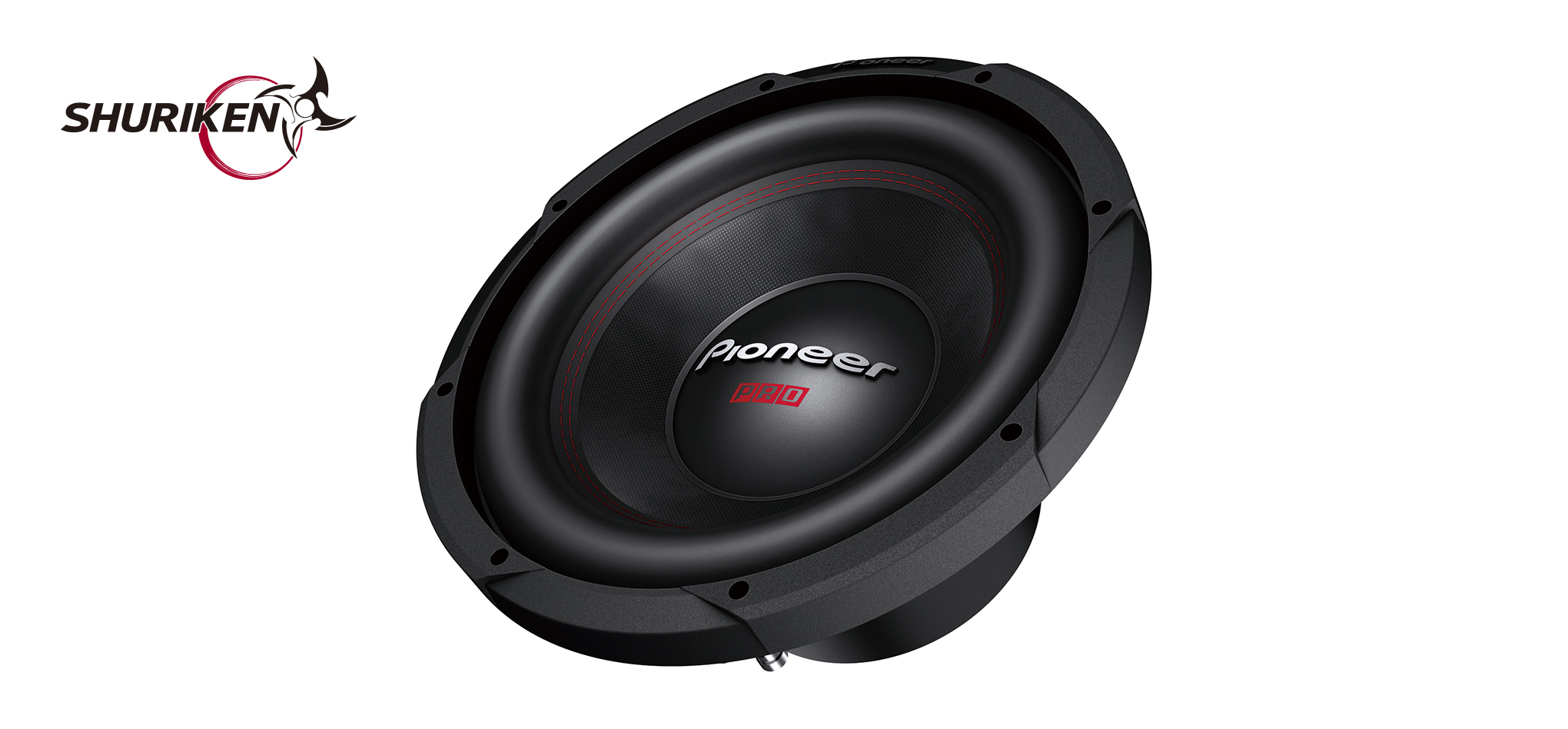

PRO Samurai series TS-W3010PRO 12″ subwoofer
Read more

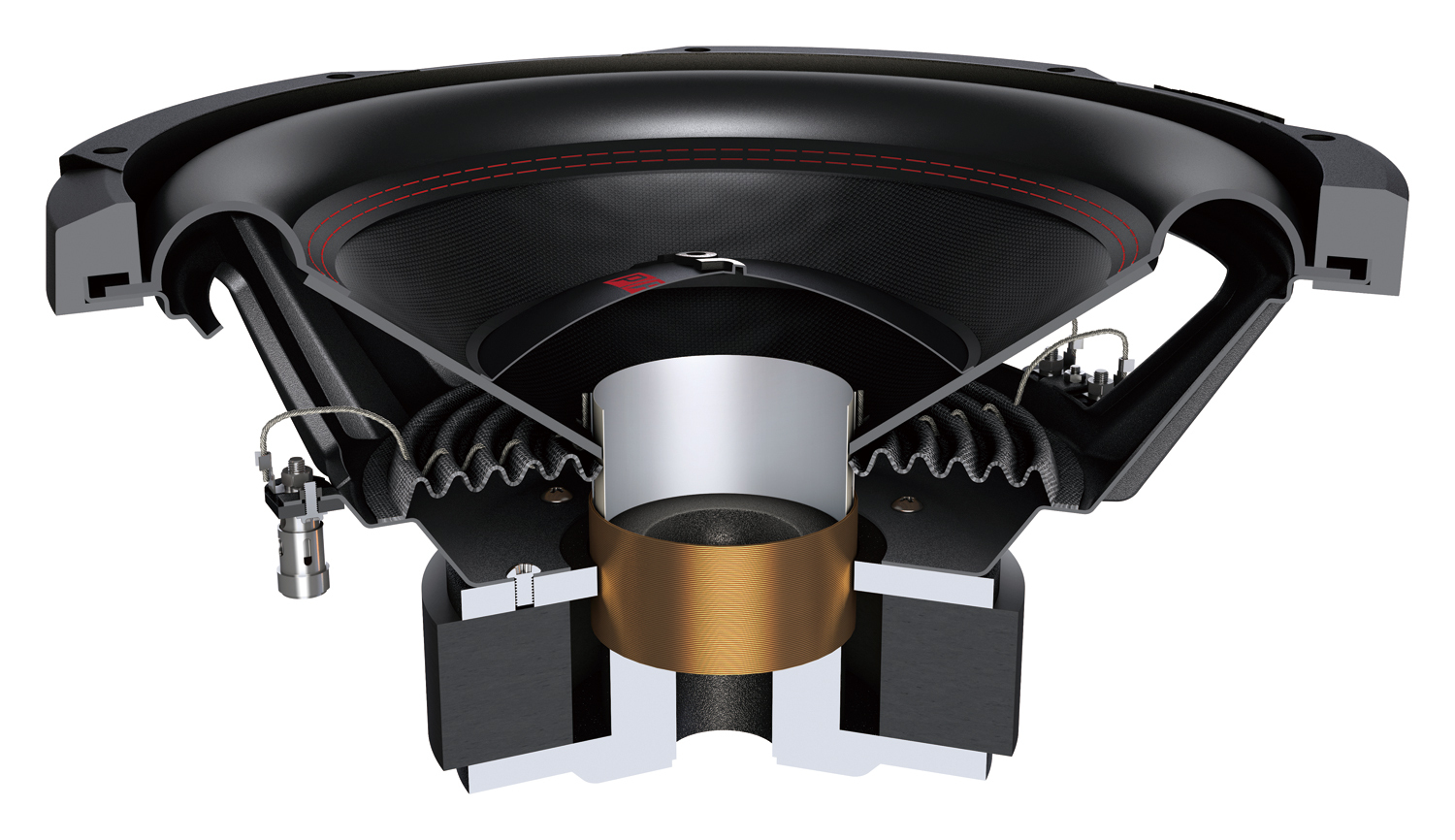

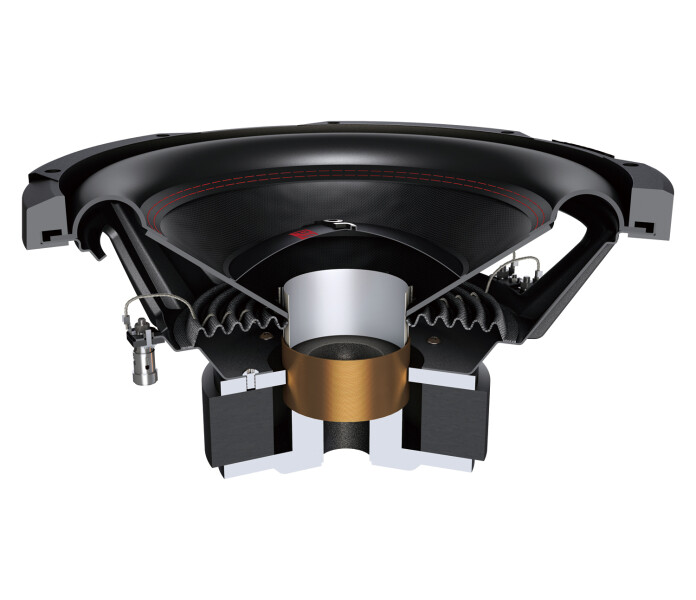

The Pioneer Reference Series for Open Show series of speakers is designed specifically for those looking to produce some serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new PRO series line of speakers is designed for loud sound pressure levels for open shows. PRO Samurai series TS-W3010PRO subwoofer has a nominal power 1500 W and double voice coil. The wide stitched-reinforced urethane surround provides long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality steel basket construction dissipates heat away from the voice coil. Big double magnet provides high power.


Main Features
PRO Pioneer Reference for Open Show
Size30 cm
Maximum power1500 W
Continuous power output600 W
Frequency response20 Hz to 200 Hz (In-Car)
Sensitivity90 (1 W/In-car) dB
Impedance1 Ω or 4 Ω
Dual Voice Coil (DVC)
Mounting Depth142 mm
Woofer Cut-Out HoleΦ282 mm
Woofer materialPaper
SpiderPolyester Fibre
Voice Coil type4-layer Long Copper
Voice Coil bobbin typeAluminium
30cm / 12″
Recom. Enclosure [l]35 (Sealed Enclosure)
50 (Ported Enclosure)
Recom. Enclosure [ft3]1.24 (Sealed Enclosure)
1.77 (Ported Enclosure)
Weight7.1 (Excluding accessories) kg
DimensionsΦ322 x 166 mm
AccessoriesSubwoofer mounting screws
Thiele/Small Parameters
Fs [Hz]35.7 Hz
Vas [ft3]8.86
Vas [l]24.3
Xmax [mm]15.
