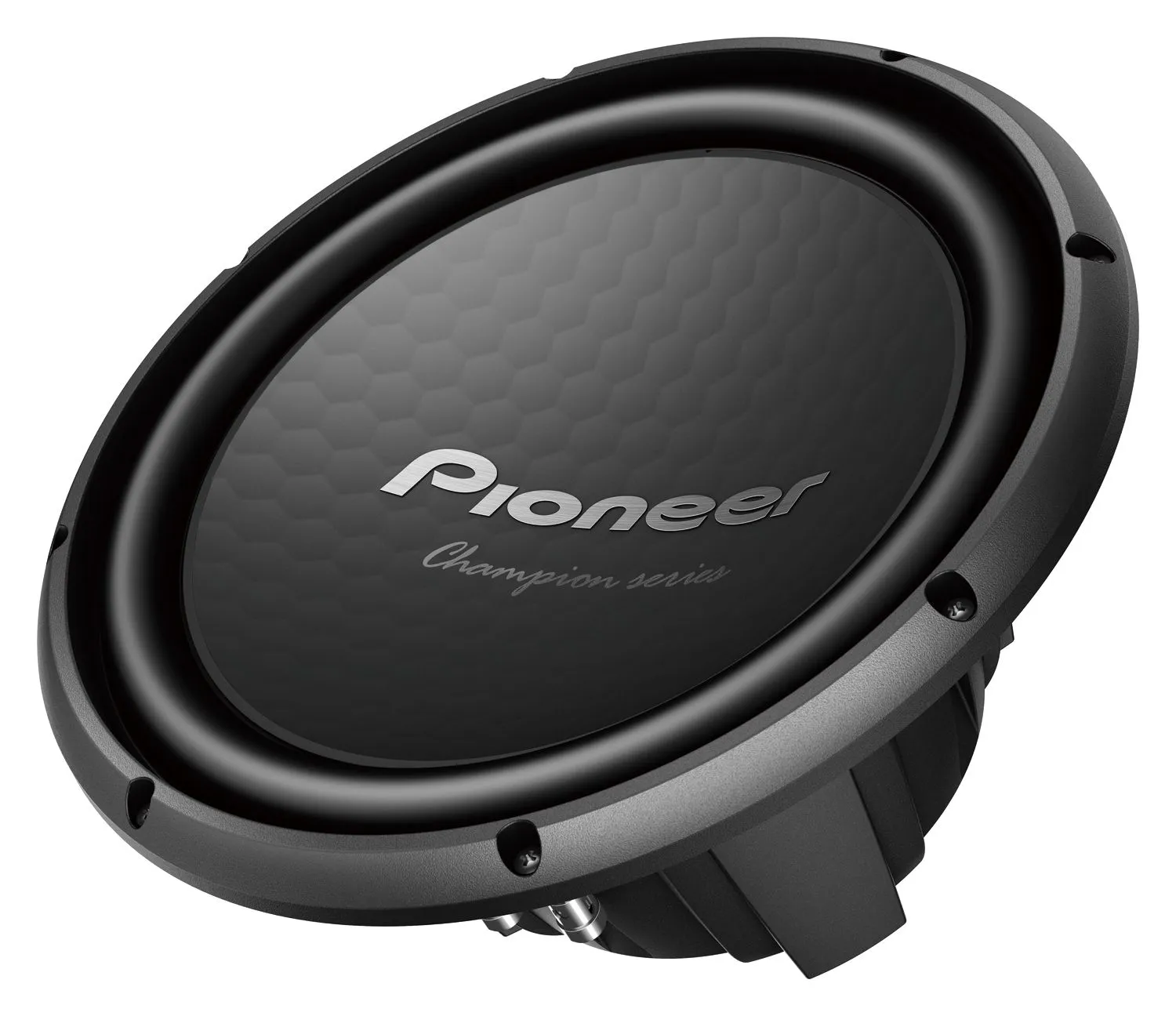

Pioneer TS-W32S4
EAN: 0884938486415
TS-W32S4
12″
1500W
1 x 4 Ohm
Sensitivity ( 1W / 1m ) 90 dB
1500W
1 x 4 Ohm
Sensitivity ( 1W / 1m ) 90 dB
Read more
Description
Specifications
Description

1,500W Max / 400W RMS
High Power Handling and High Endurance

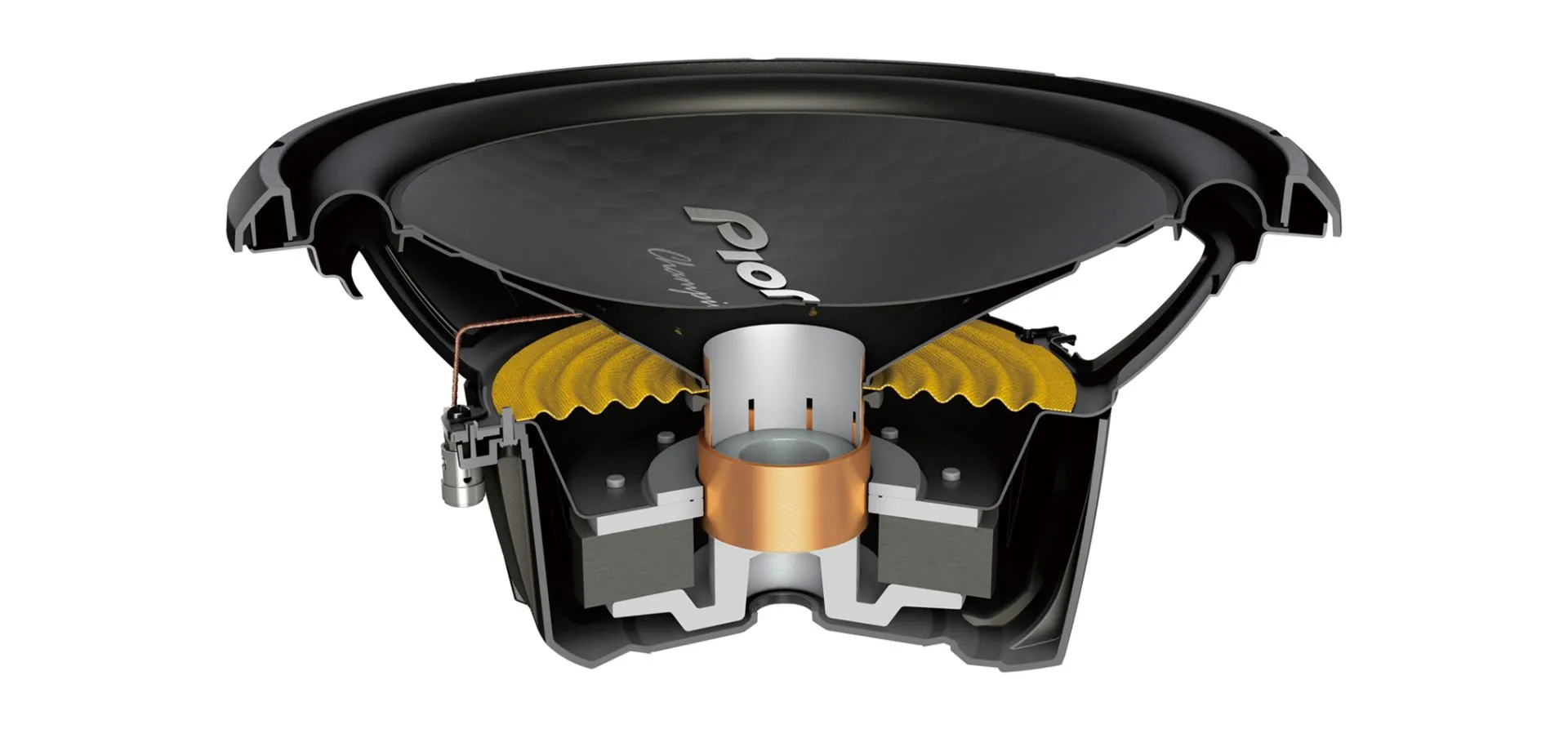

Durable rubber surround. High heat resistance voice coil.
Deeper and Louder Bass

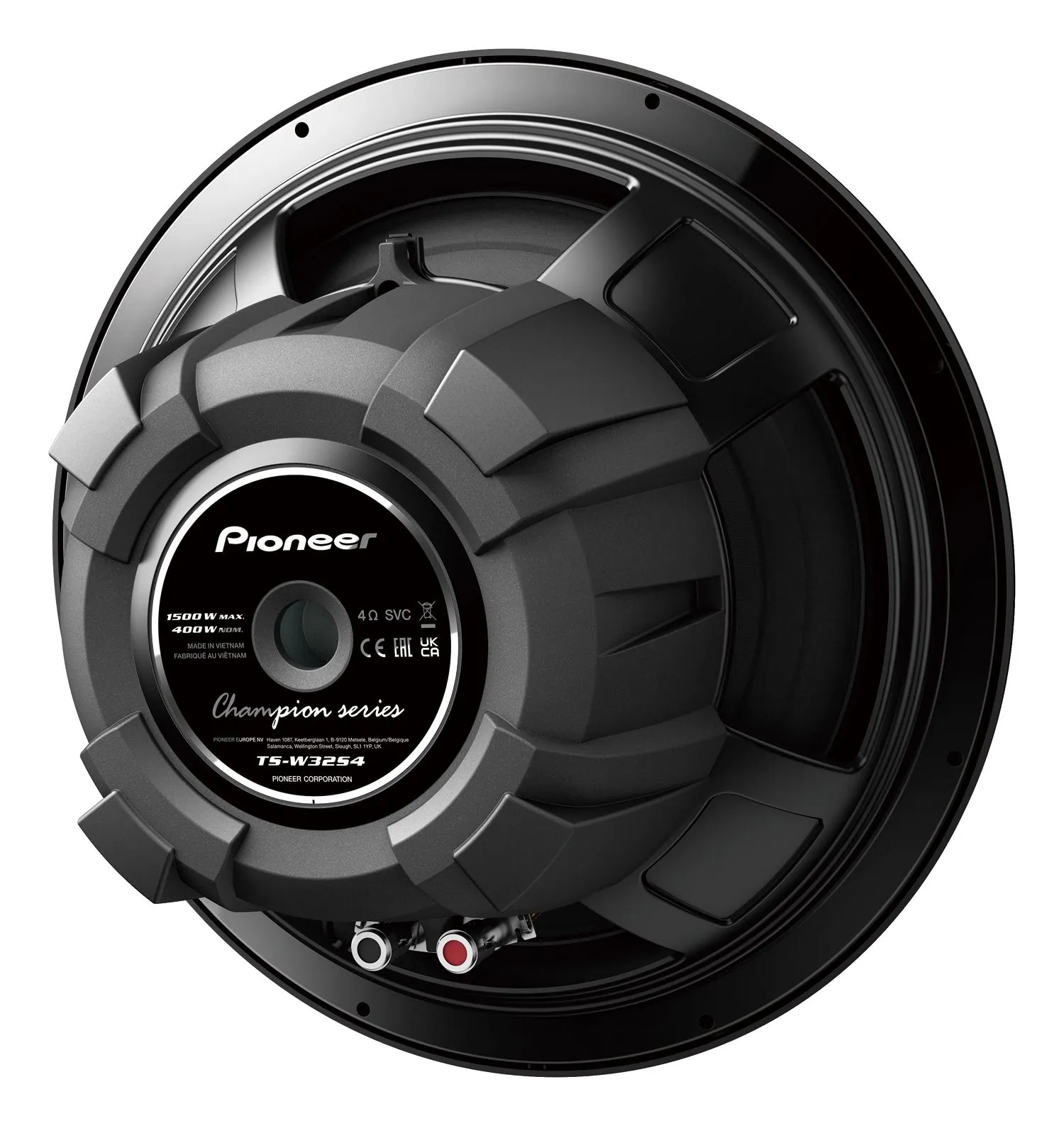

High rigidity IMPP™ composite seamless cone with honeycomb and a large magnet.
High Reliability and Tough Body Design
Seamless large cone and magnet cover like the TS-W312S4/D4. Push terminals for easier installation.
Specifications

Frequency response:
22 Hz - 1600 Hz
Impedance:
4 Ω
Maximum input power:
1500W
Nominal input power:
400 W
Sensitivity:
90 dB
Diameter Size:
30 cm
Dimensions:
318 mm x 180 mm
IMPP™ Composite Cone
Magnets:
Ferrite
Woofer material:
IMPP™
Other Specifications speakers
Cut-out Hole:
281 mm
Mounting Depth:
146 mm
Recommended Enclosure (ft³/litre):
1.25 / 35.4
Weight:
3.76 kg
