Pioneer VREC-150MD Driving recorder mirror
Description
Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily.

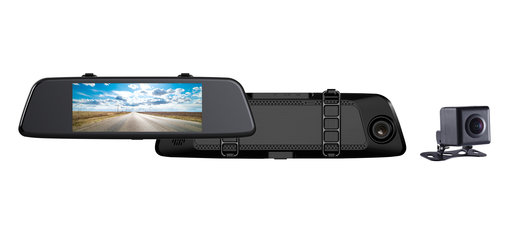

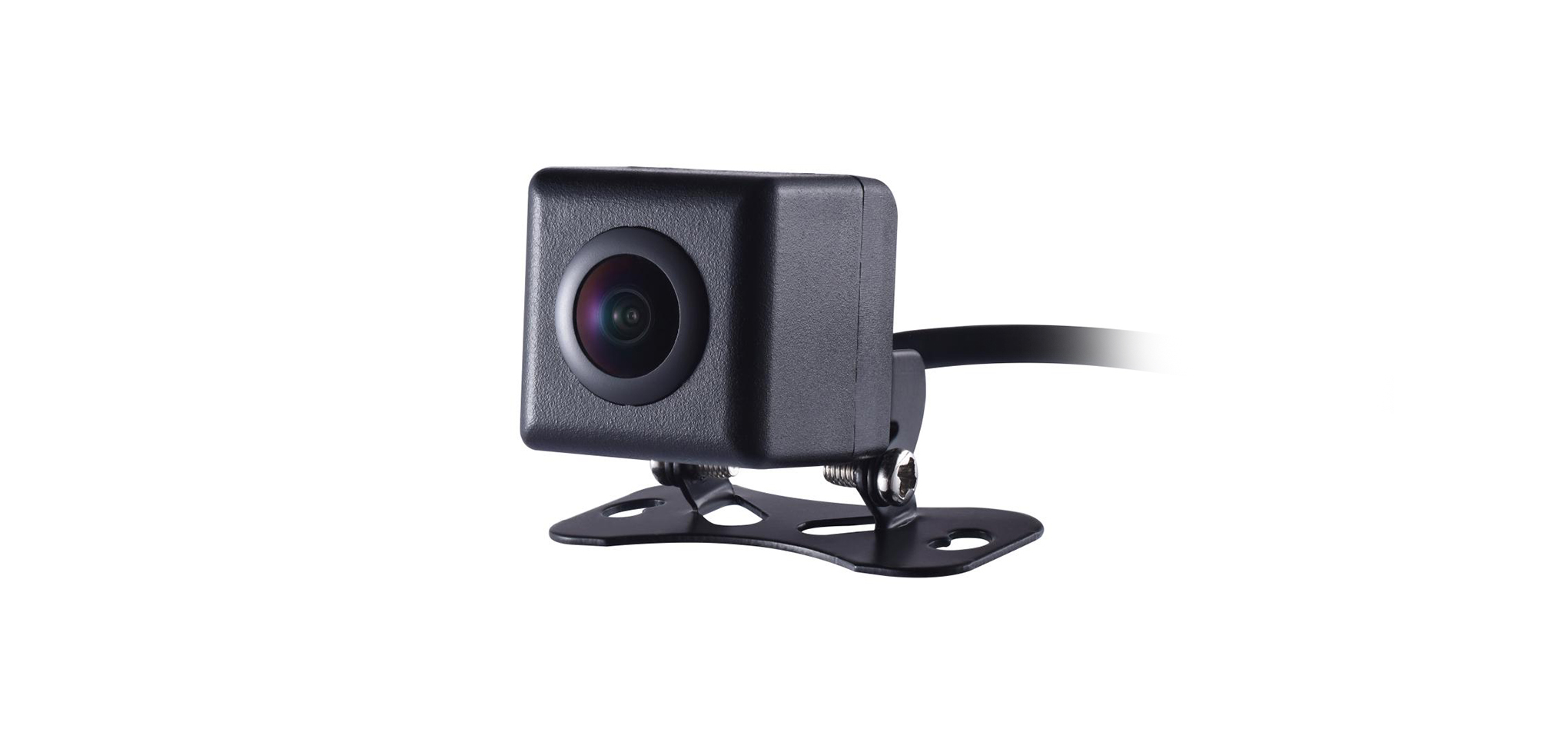

The Pioneer VREC-150MD is a 2-Channel front facing ′mirror type′ Dash Camera with a 6.7″ touchscreen, that mounts over the centre rear view mirror. The front camera has a Wide Viewing Angle of 150°, allowing you to capture data that other cameras cannot. Pioneer′s VREC-150MD also includes a Rear View camera, designed to be mounted externally for rear view recording and combines as a reverse camera to aid parking by expanding your field of vision.
The VREC-150MD is easy to connect thanks to the supplied cigar charger power connector.
The VREC-150MD is compatible with a 8 to 64GB microSD Card (Class 10) maximum.
Pioneer does not guarantee microSD Card compatibility.
microSD Card sold separately.
Specifications
Image QualityFront: Full HD (1920 x 1080p)
Rear: AHD (1280 x 720p)
Viewing AngleFront Camera: Horizontal 118°, Vertical 60°, Diagonal 150°
Rear Camera: Horizontal 105°, Vertical 60°, Diagonal 120°
F-ValueFront Camera: F2.0
Rear Camera: F2.5
Frame Rate (fps)Front Camera: 30 fps
Rear Camera: 25 fps
Image CorrectionFront Camera: WDR
Rear Camera: N/A
Camera TypeFront and Rear
Rear CameraIncluded
Screen6.7″ Full Colour IPS LCD Touchscreen
Sound RecordingOn / Off
Recording ModesNormal / Event / Photo
Continuous Recording TimeOff / 1 min / 3 min / 5 min
Event Recording Times1 min / 3 min / 5 min
Manual Recording Times1 min / 3 min / 5 min
Video Recording FormatMOV
Still Image FormatJPEG
MicroSD Card Capacity8 GB to 64 GB
MicroSD Card CompatibilitymicroSDXC / microSDHC memory card class 10
Power ConsumptionApproximately 10.8 W / 12 V
Power Supply Voltage12 V / 24 V DC
Power Connection TypeCigar charger power cable
Power Cable Length5 m
Rear Camera Cable Length6 m
Operating Temperature-10° to +60°
Dimensions (W x H x D)Front Camera: 295 mm x 78.5 mm x 33.5 mm
Rear Camera: 26.5 mm x 23.7 mm x 23.7 mm
WeightFront Camera: 313g (Excluding installation brackets, etc.)
Rear Camera: 30.2g（Excluding cable.) 130.5g (including cable)
Graphic User Interface (GUI) LanguagesEnglish / French / German / Italian / Spanish / Russian
What′s In The BoxFront Camera / Rear Camera / Cigar Charger Power Cable / Rear Camera Connection Cable / USB Cable for PC Connection / User Manual (Russian) / Warranty Document.
