PP-TES 1.7B Ryzen
Description

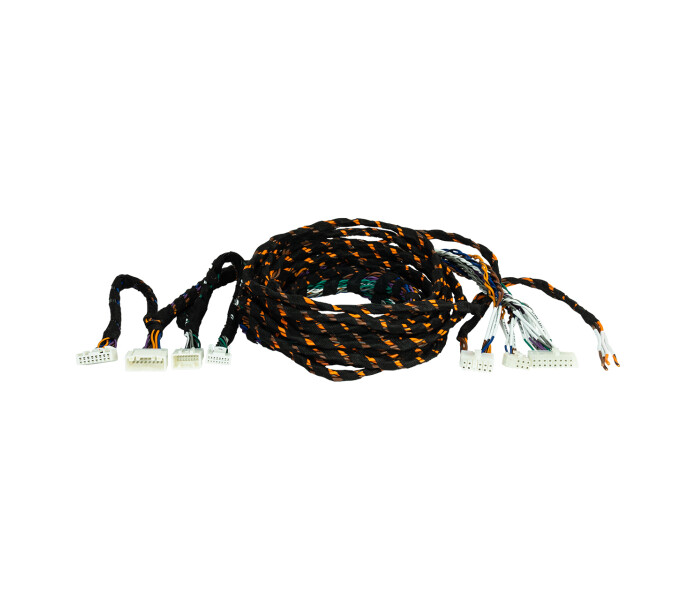

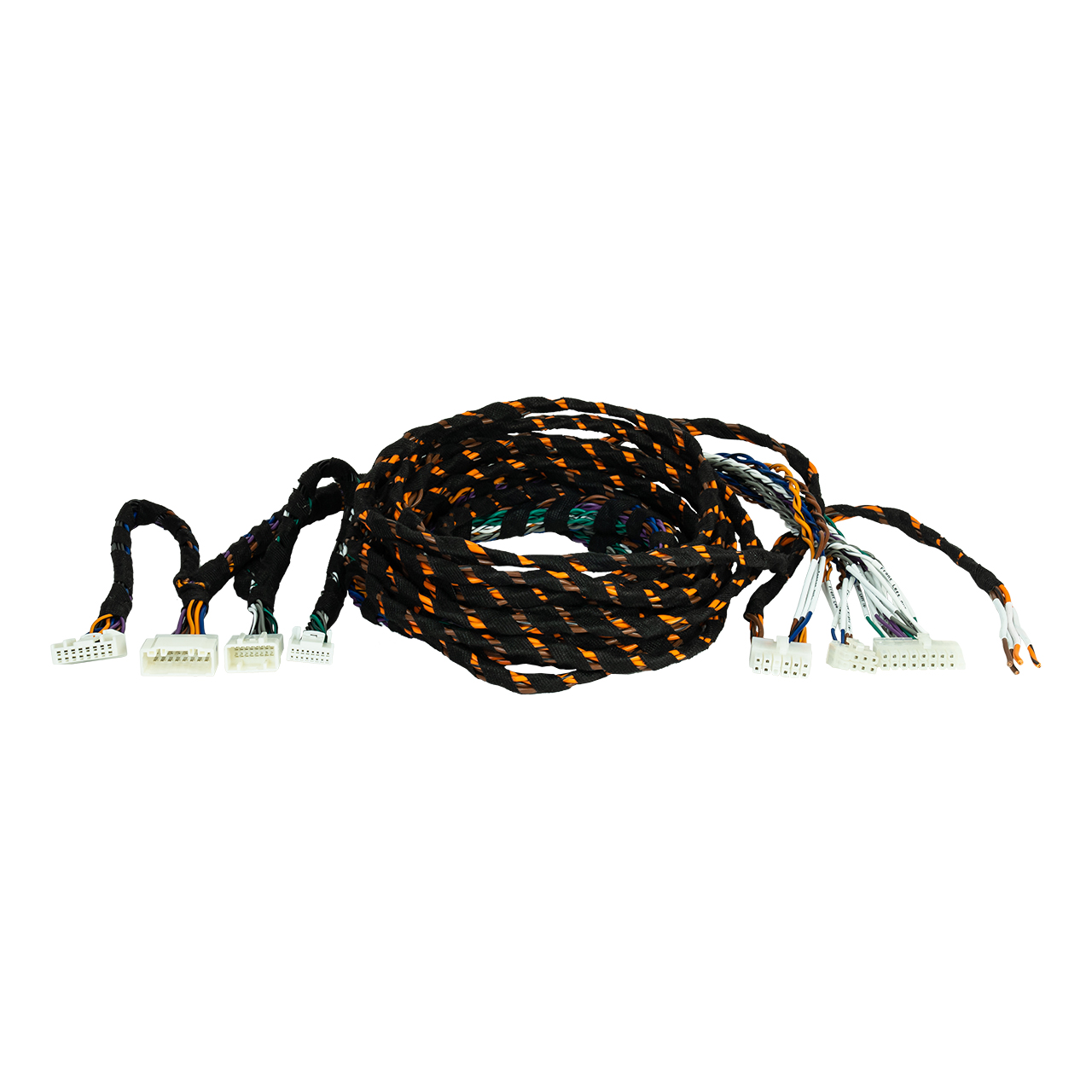

MATCH PP-TES 1.7B Ryzen
The UPGRADE cable harness PP-TES 1.7B Ryzen enables the simple connection of a MATCH UP 10DSP amplifier to Tesla Model 3 and Model Y vehicles with Ryzen chip set (Not compatible with premium sound system).
Features
Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier
Tesla system plugs for connecting the vehicle cable harness
5.0 meters connection cable for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
Cable length 1.00 meter
Specifications
Cable length
1.00 meter
Connectors
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP
1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x connection cable (5.0 meters) for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
1 x 16-pole Tesla system jack
1 x 16-pole Tesla system plug
Compatibility
Suitable for MATCH UP 10DSP amplifier
Suitable for Tesla Model 3 and Model Y vehicles with Ryzen chip set and factory installed Upgrade sound system
Scope of delivery
1 x MATCH UPGRADE cable harness PP-TES 1.7B Ryzen
