Raggarplanka XL Amplified
Description

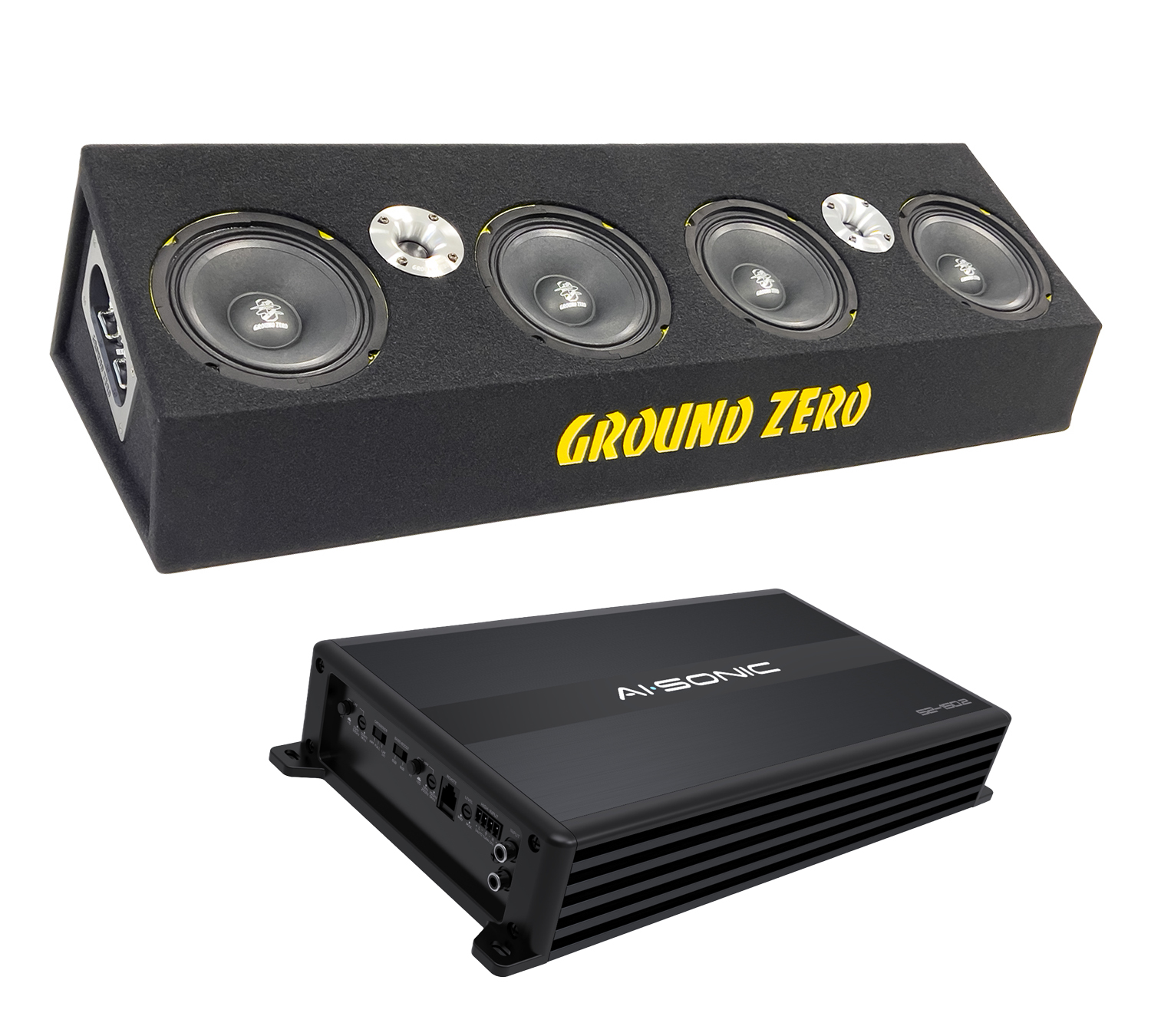

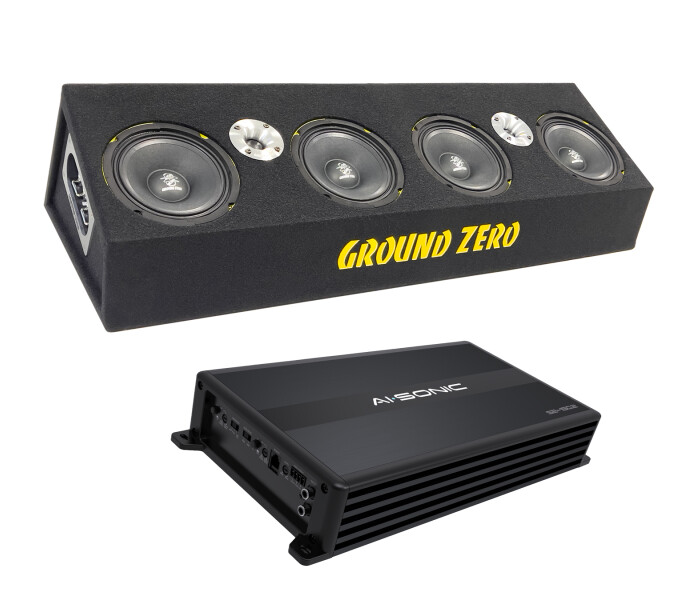

Raggarplanka Amplified includes GZCB 16.2SPL Fullrange SPL speakerbox + Powerful and exceptionally high-quality AI-SONIC S2-A150.2 amplifier.
GZCB 16.2SPL:
GZCB 16.2SPL Fullrange SPL speakerbox!
LOUD enclosure with 4 GZCK 165XSPL midbasses

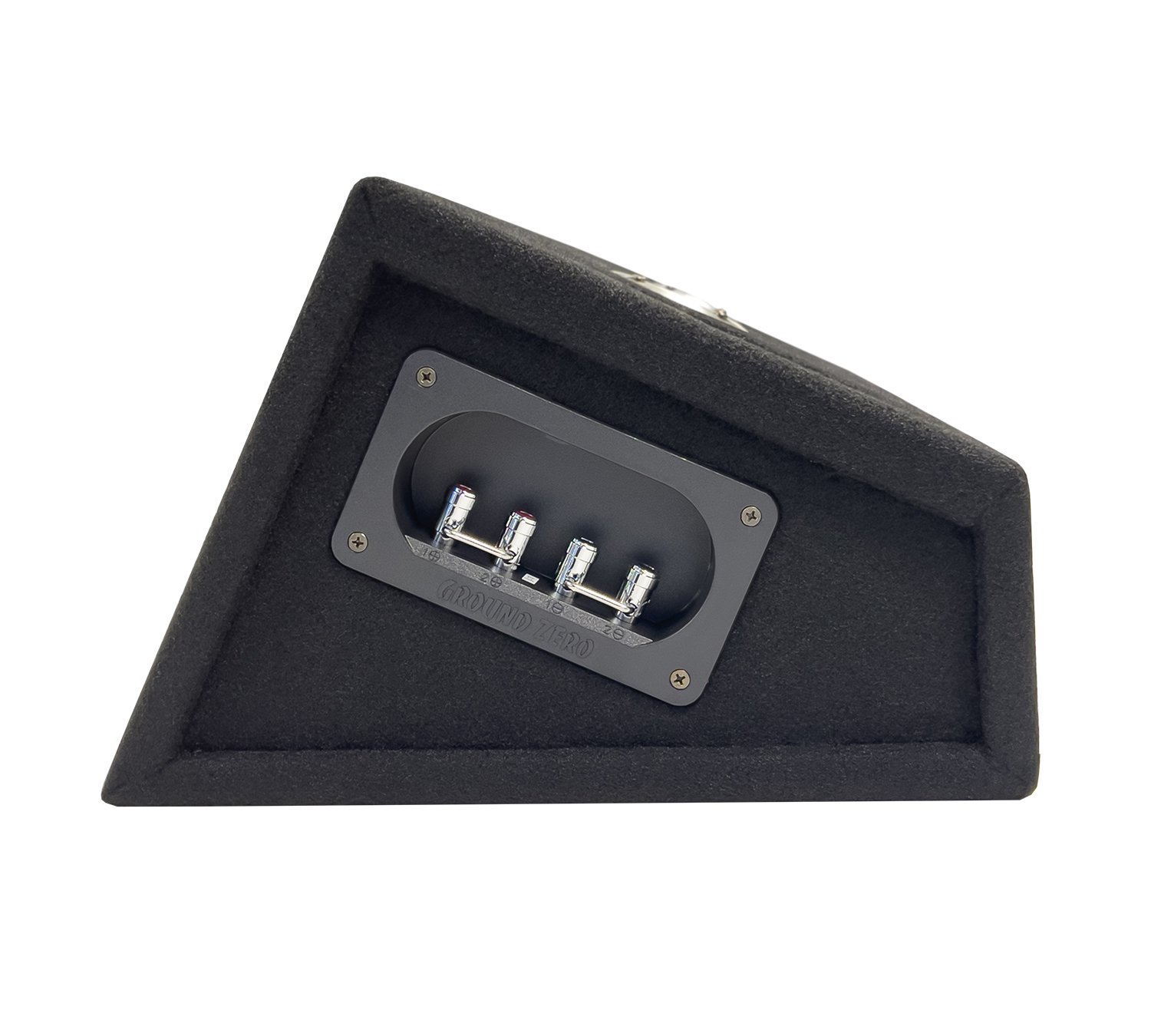

and 2 GZCT 25SQL tweeters. There are terminals on the side of the case,
so all you have to do, is plug in the speaker cords and you can start enjoying
about music!
Free placement! You can put the enclosure wherever you want.
For a hat rack, camper, trunk, or lift though
on the roof as a party booster!
S2-A150.2:

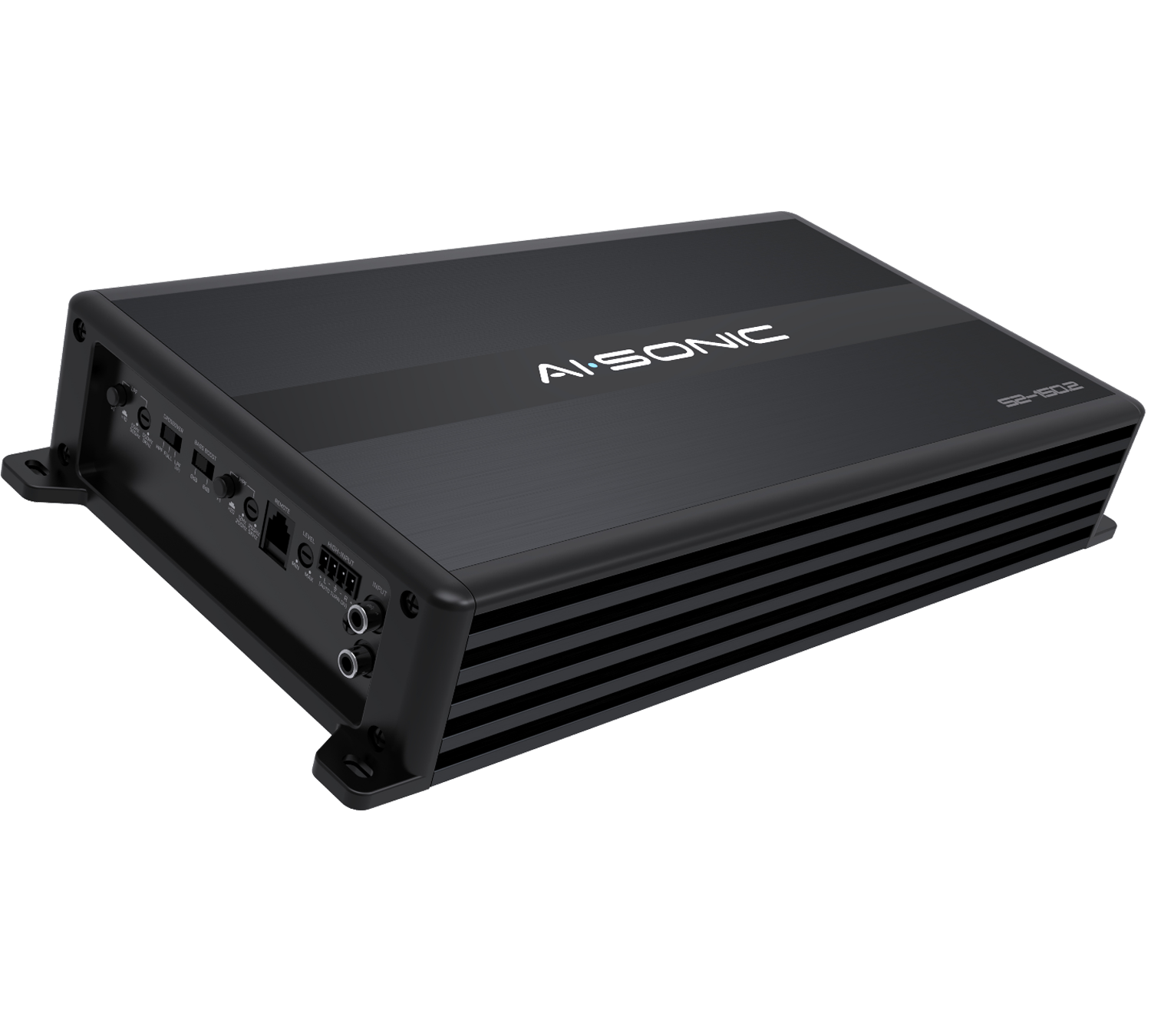

AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
Specifications
GZCB 16.2SPL
High-power loudspeaker enclosure
2-way loudspeaker system Full range audio reproduction
Klippel® optimized
High efficiency (SPL)
6.5″ double-midwoofer (GZCK 165XSPL)
1″ silk dome tweeter (GZCT 25SQL)
12 dB/oct crossover
Solid enclosure made from MDF
GZ design push terminal
Owner′s manual enclosed
Specifications:
Frequency response: 50 Hz - 22 kHz
Impedance: 2x 2 ohms
Efficiency: 93 dB
Power handling (stereo) 2x 200 W RMS (@ 2 ohms) 4x 400 W max (@ 2 ohms)
Power handling (serial) 1x 400 W RMS (@4 ohms) 1x 800 W max (@4 ohms)

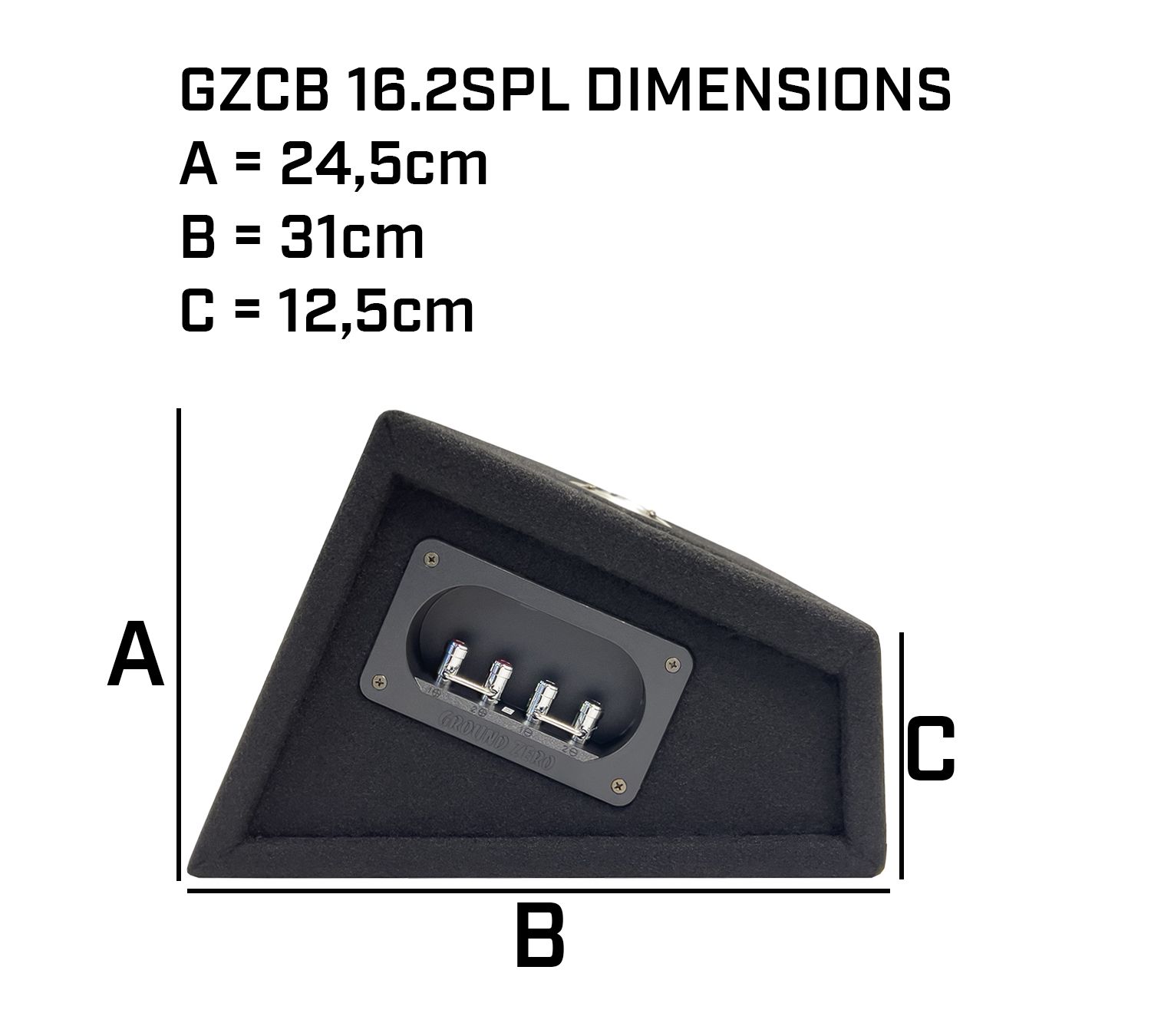

Dimensions (straight dispersion) 35.43″ x 11.81″ x 9.65″ / 90 x 30 x 24.5 cm (wxhxl)
Dimensions (angled dispersion) 35.43″ x 8.66″ x 11.81″ / 90 x 22 x 30 (wxhxl).
S2-A150.2
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY :0.5-6V

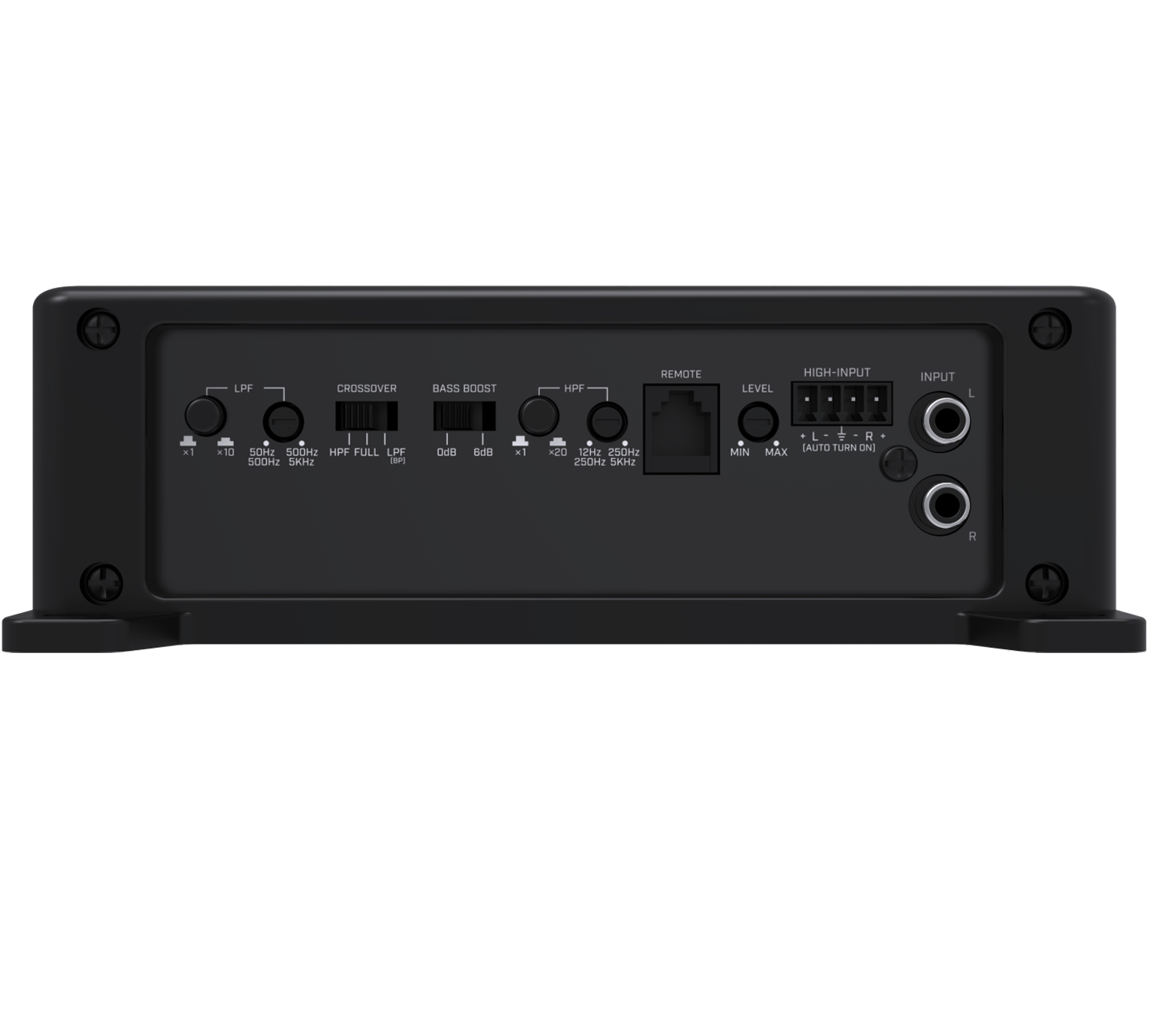

LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)

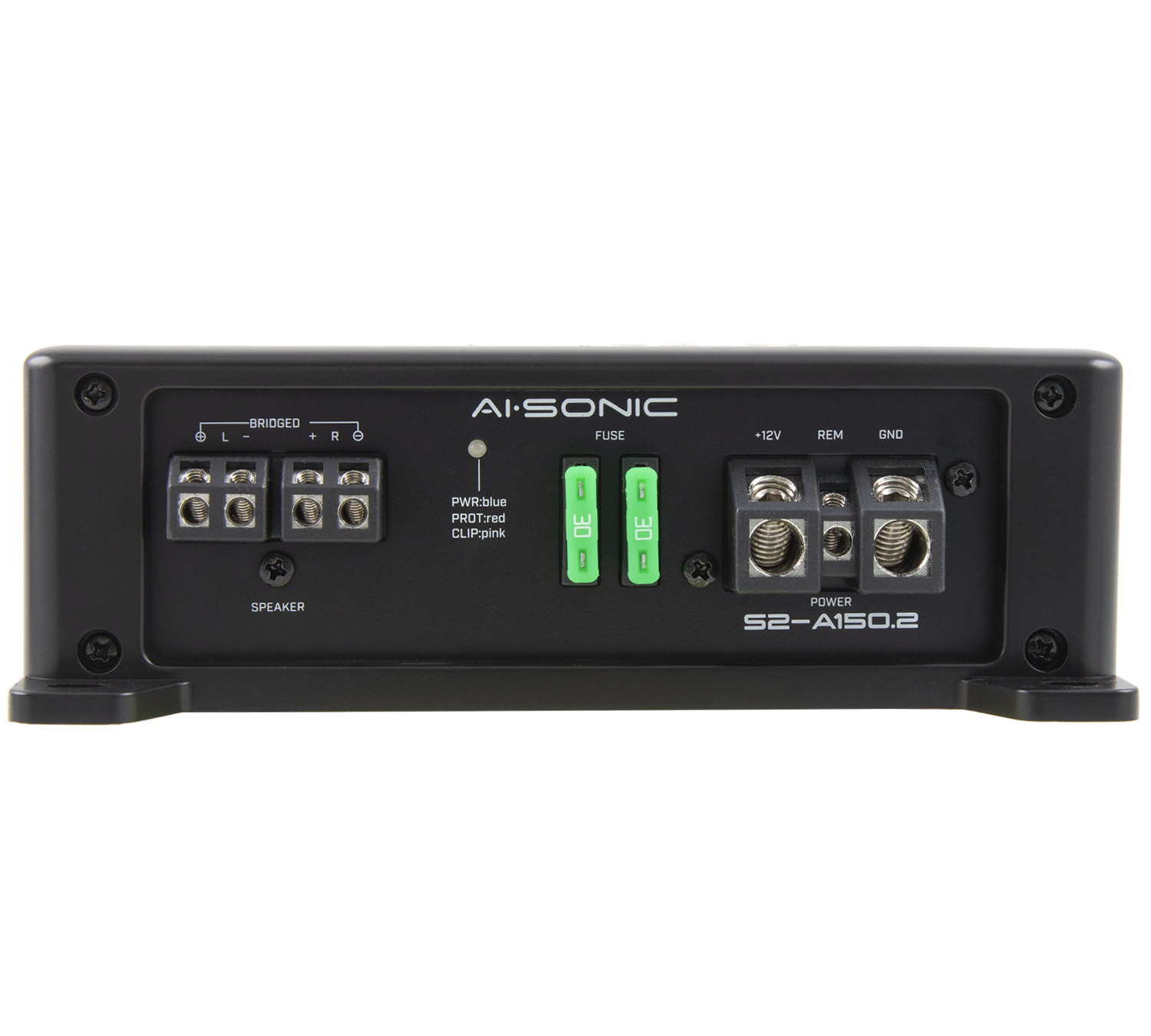

POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 374mm / ( 14.7IN).
