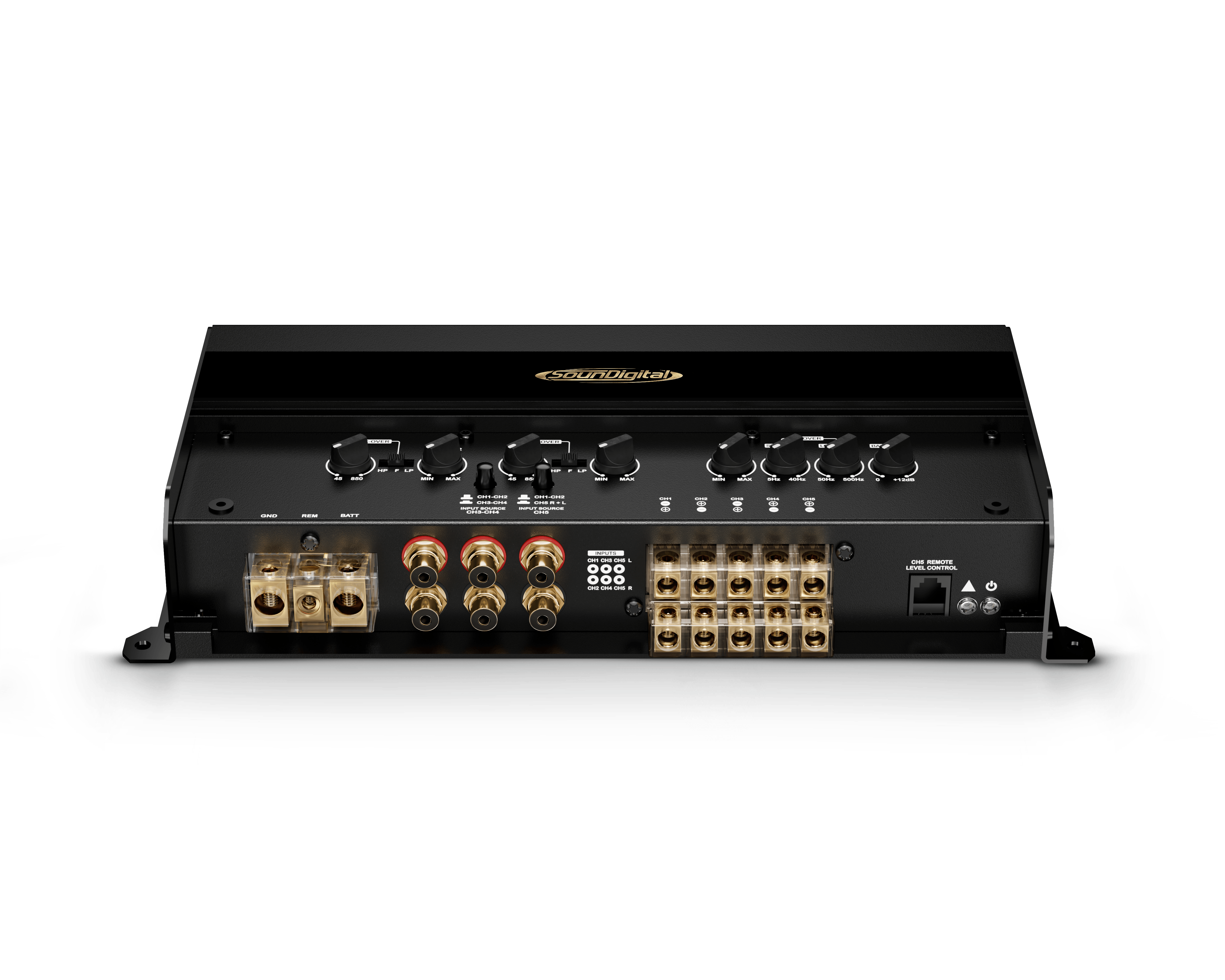

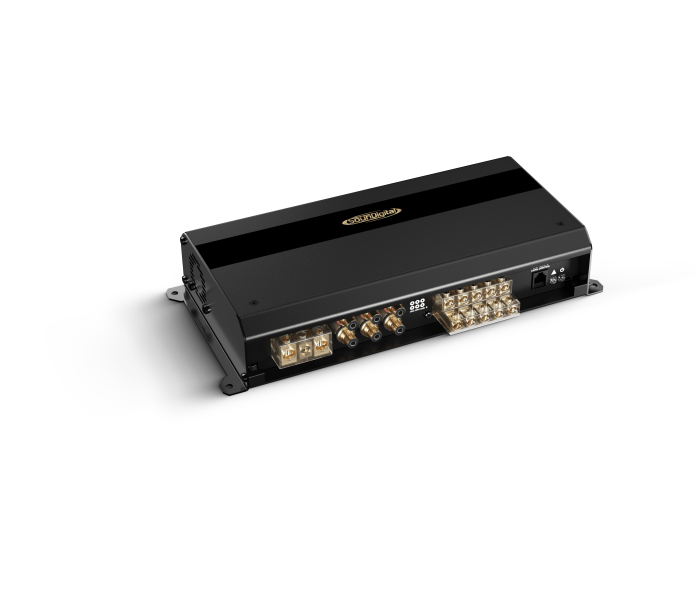

SounDigital 1500.5 GAN FOUNDERS EDITION - 4ohm

SD1500.5-4 GAN
• 5-channel amplifier • Incredible sound quality! • Serial numbered • 4 x 125 + 1000W
Read more
Description
Specifications
Manuals

Description

SounDigital presents the revolution in amplifier production!
GaN is the big star when it comes to amplifier performance! With its unique ability for electronic mobility, it paves the way for unparalleled sound power.

Getready to immerse yourself in a musical universe of high fidelity and clarity with SounDigital, where every note comes to life with stunning precision. Your
listening experience will never be the same!

The use of gallium nitride (GaN) in amplifiers is a relatively recent but extremely significant development in the field of power electronics and audio amplification.
Gallium nitride was discovered in the 1960s, but research and development of the material as a semiconductor gained momentum in the following decades.

GaN has shown promise for high power and high frequency applications due to its unique characteristics such as high electron mobility and ability to operate at elevated temperatures.

In the 1990s and 2000s, GaN technology continued to be developed and improved. Researchers and engineers have focused on improving the crystalline quality of the material and developing techniques for growing GaN crystals on suitable substrates.
In recent years, the adoption of GaN power amplifiers in the audio market has grown significantly. SounDigital has taken advantage of GaN to create more efficient, smaller amplifiers with better sound quality.

Tune in to the future of sound!
The electronic revolution has arrived at SounDigital, and GaN is the star of this transformation! With high-performance amplifiers, unrivaled durability and ecoconsciousness, the future of sound is brighter than ever. Get ready for an extraordinary sound experience that pushes the boundaries of the ordinary and
delivers the sound of your dreams. Tune in to GaN and open your ears to a new musical dimension!

Specifications

GAN 1500.5 Founders Edition
Channels 1-4
Power @ 4Ω: 4 X 125 WRMS
Power @ 2Ω: N/A
Bridge Power @ 8Ω: 2 X 250 WRMS
Bridge Power @ 4Ω: M/A
Channel 5 / Sub
Power @ 4Ω: 1 X 660 WRMS
Power @ 2Ω: 1 X 1000 WRMS
Operating Voltage: 9V – 16V
Current Draw (Music): 65 A
Current Draw (Max): 130 A
Recommended Fuse (Music): 80 A
Total Efficiency: 80%
Damping Factor: 150 / 75 (Sub)
Frequency Response (-3dB): 6Hz – 65.25kHz
SNR: 105dB
Crossover CH1-4 HPF: 45Hz – 850Hz
Crossover CH1-4 LPF: 45Hz – 850Hz
Crossover CH5 HPF: 5Hz – 40Hz
Crossover CH5 LPF: 50Hz – 500Hz
Product Dimensions: 11.7 x 5.9 x 2.1 in
Product Dimensions: 29.8 x 15.0 x 5.4 cm
