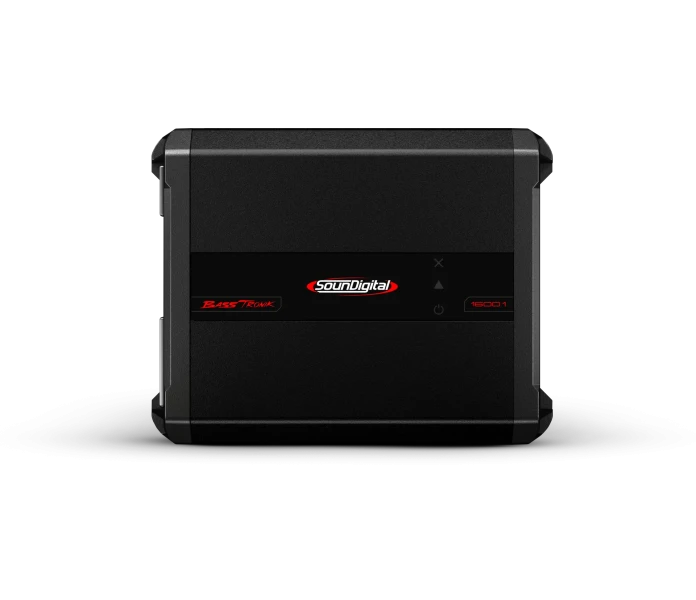

SounDigital 1600.1 BASSTRONIK - 1 Ohm
1600W
1 Ohm model
Small size
Description
The Basstronik series is designed for more powerful and direct bass reproduction.
The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.
With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation. The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere.
Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.
Specifications
Power @ 4Ω: 1 X 650 WRMS
Power @ 2Ω: 1 X 1000 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Frequency Response (-3dB):
5Hz ~ 20kHz
Subsonic Filter:
5Hz ~ 40Hz
Low Pass Filter (12dB/octave):
50Hz ~ 250Hz
Bass Boost:
0dB ~ 10dB @ 35Hz
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.5V ~ 15V
Operating Voltage:
10V ~ 16V
Signal-Noise Ratio:
90.2dB
Current Draw (Music):
82A
Current Draw (Max):
164
Total Efficiency:
85%
Damping Factor:
2000
Recommended Fuse (Music):
100A
Recommended Battery:
120Ah
Power cable size:
35mm²
Speaker Cable size:
4.0mm²
Remote Cable size:
1.5mm²
Width:
136.2 / 5.4 in
Length:
180.1mm / 7.1 in
Height:
54.8 / 2.2 in
