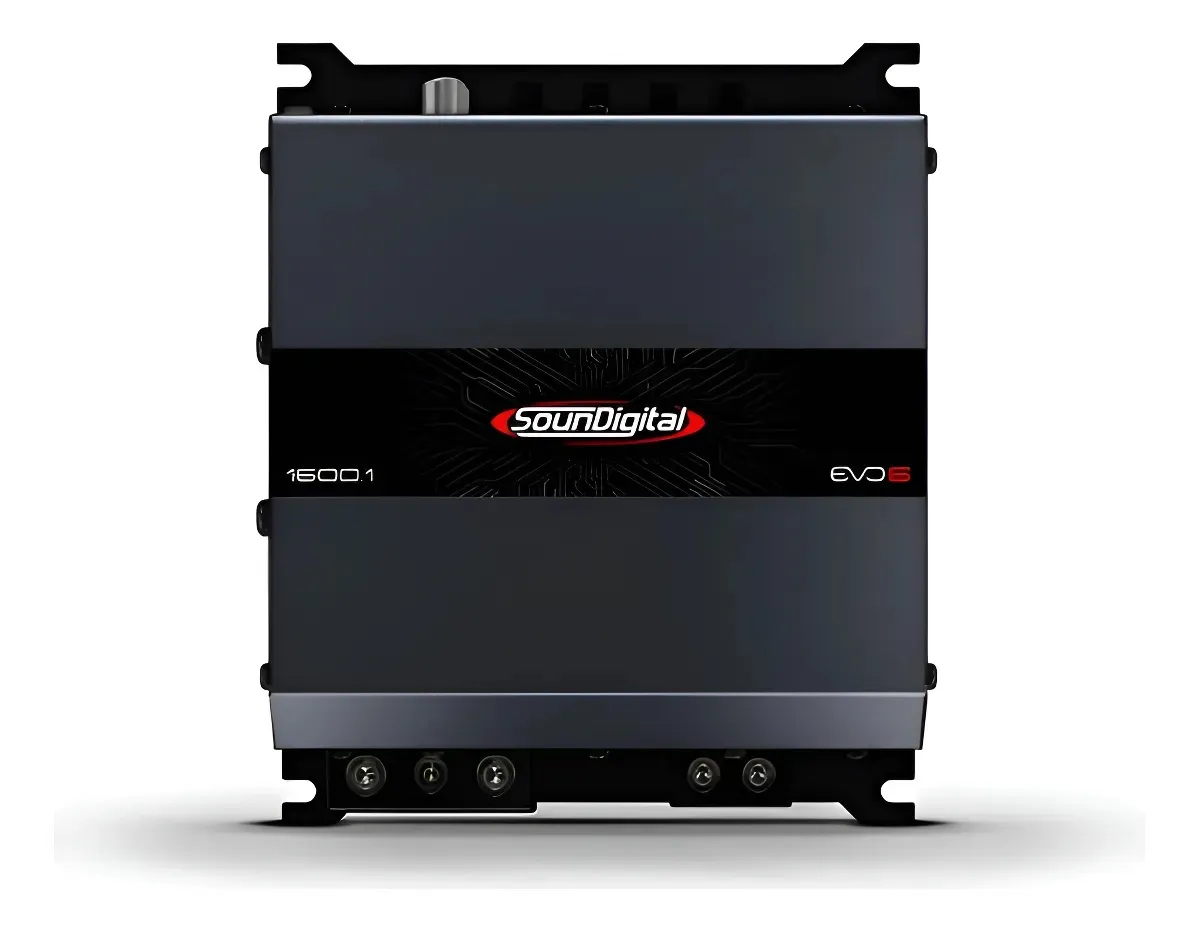

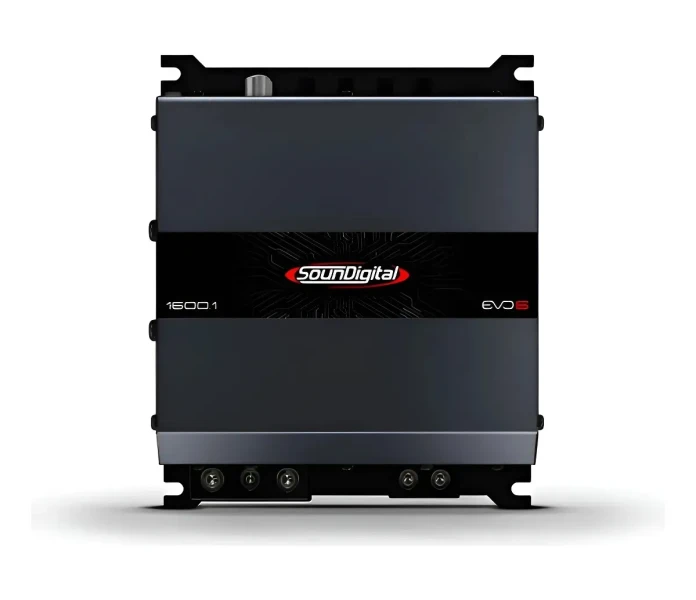

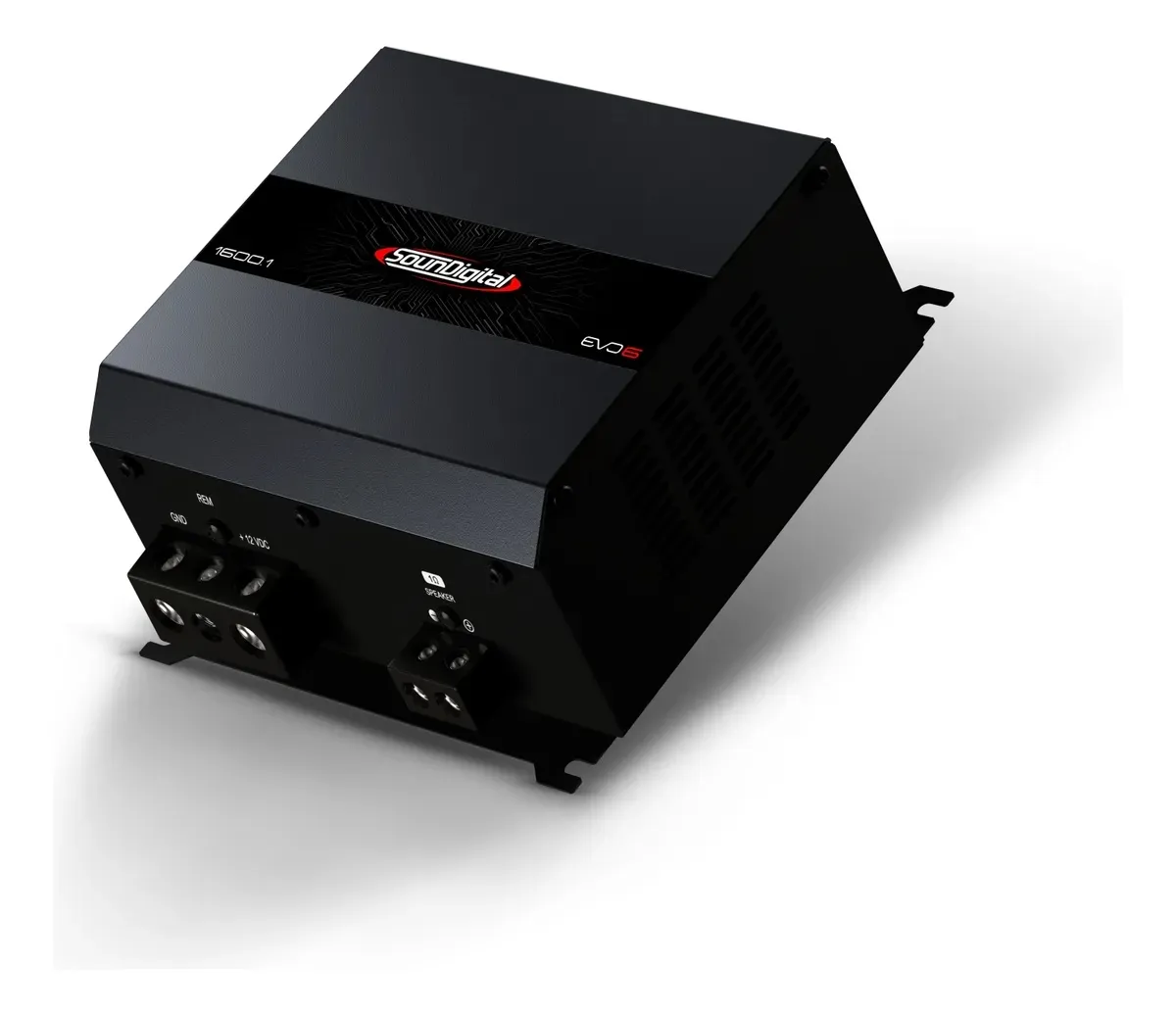

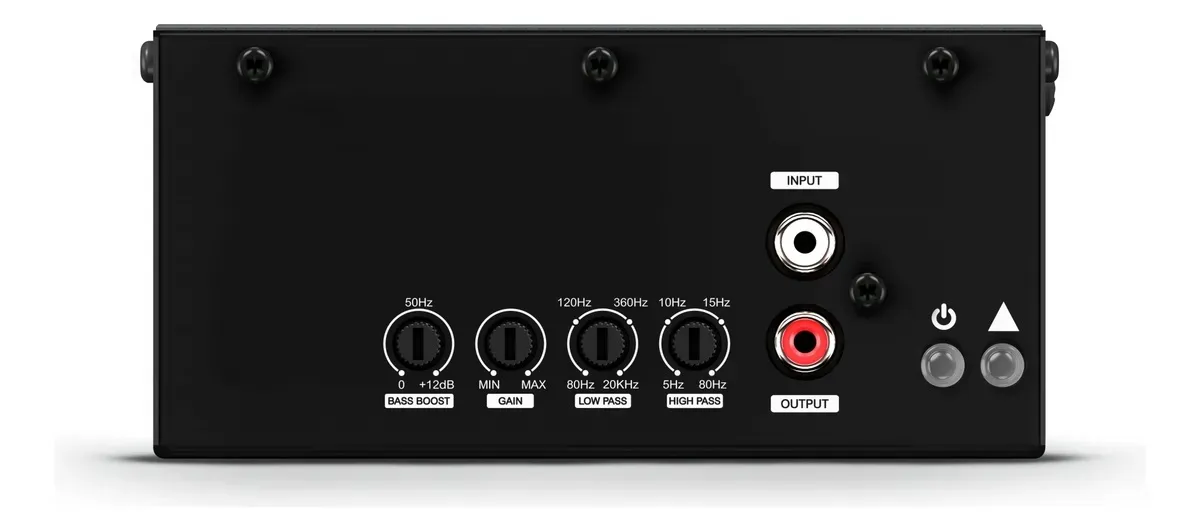

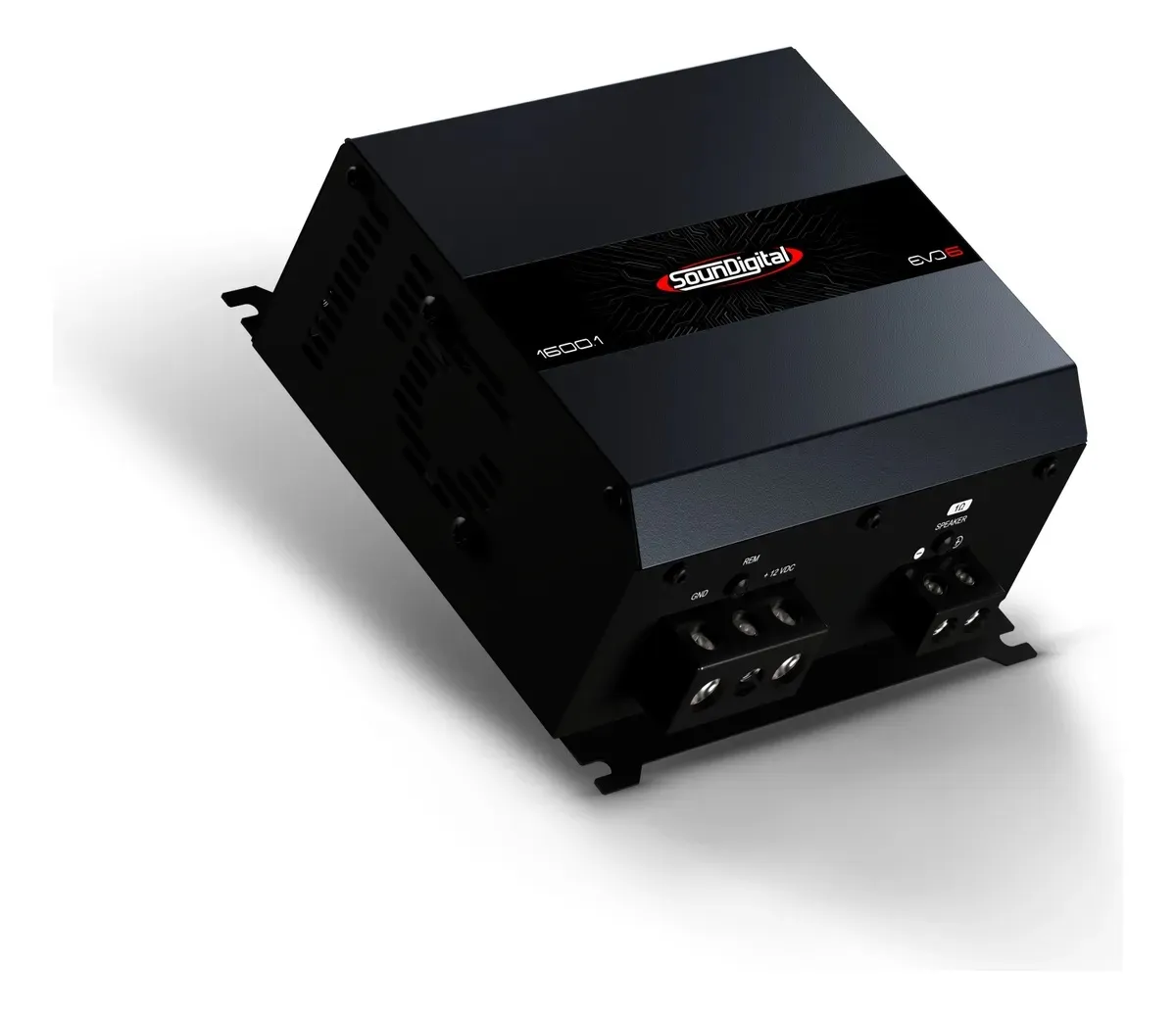

SounDigital 1600.1 EVO 6 - 1 Ohm
1600W
1 Ohm model
Small size
Description
Take your sound system to the next level with SounDigital EVO6 series amplifiers – compact size and plenty of power in one package!
Never before have such high powers been achieved from such small external dimensions. And still at a very reasonable price!
The damping coefficient of all EVO 6 models is over 1000!
At high power levels, a lot of current is consumed, and in many cars, the problem becomes voltage drop during peak moments in the music and when played loudly.
In Soundigital amplifiers, this practical situation has been taken into account so that the operating voltage of the amplifiers can be as low as 9 volts!
SounDigital operates in a very rare way today as an amplifier manufacturer,
ALL models are designed and manufactured in their own production facility in Brazil.
Specifications
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V ~ 16V
Signal-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 75A
2Ω: 71A
4Ω: 69.4A
Current Draw (Max):
1Ω: 149A
2Ω: 143A
4Ω: 138.8A
Total Efficiency:
1Ω: 85%
2Ω: 89%
4Ω: 91.5%
Damping Factor:
2000
Power Cable:
16mm² (5 AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
80A
Recommended Battery:
80Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.13 Kg.
