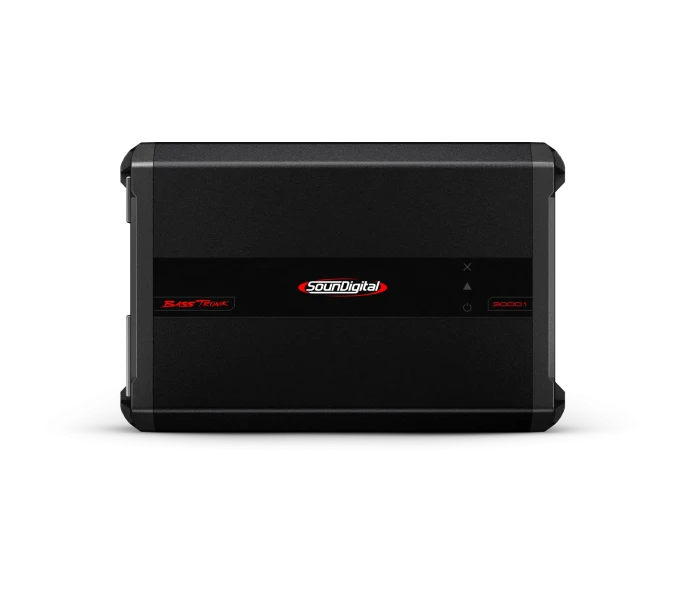

SounDigital 3000.1 BASSTRONIK - 1 Ohm
3000W RMS!
1 Ohm model
Damping Factor: 2000
Small size
Description
The Basstronik series is designed for more powerful and direct bass reproduction.
The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.
With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation.
The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere. Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.
Specifications
Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1900W RMS
Power @ 4Ω: 1 X 1300W RMS
Frequency Response (-3dB):
5Hz ~ 20kHz
Low Pass Filter:
50Hz ~ 250Hz
Subsonic:
5Hz ~ 40Hz
Bass Boost:
0dB ~ 10dB @ 35Hz
Operating Voltage:
10V – 16V
SNR:
100dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.5V ~ 15V
Current Draw (Music):
151A
Current Draw (max):
302A
Total Efficiency:
79%
Damping Factor:
2000
Power cable size:
50mm²
Speaker cable size:
6mm²
Remote cable size:
1.5mm²
Recommended Fuse (Music):
160A
Recommended Battery:
160Ah
Width:
229mm / 9″
Length:
136.2mm / 5.4″
Height: 54.8mm / 2.2″
