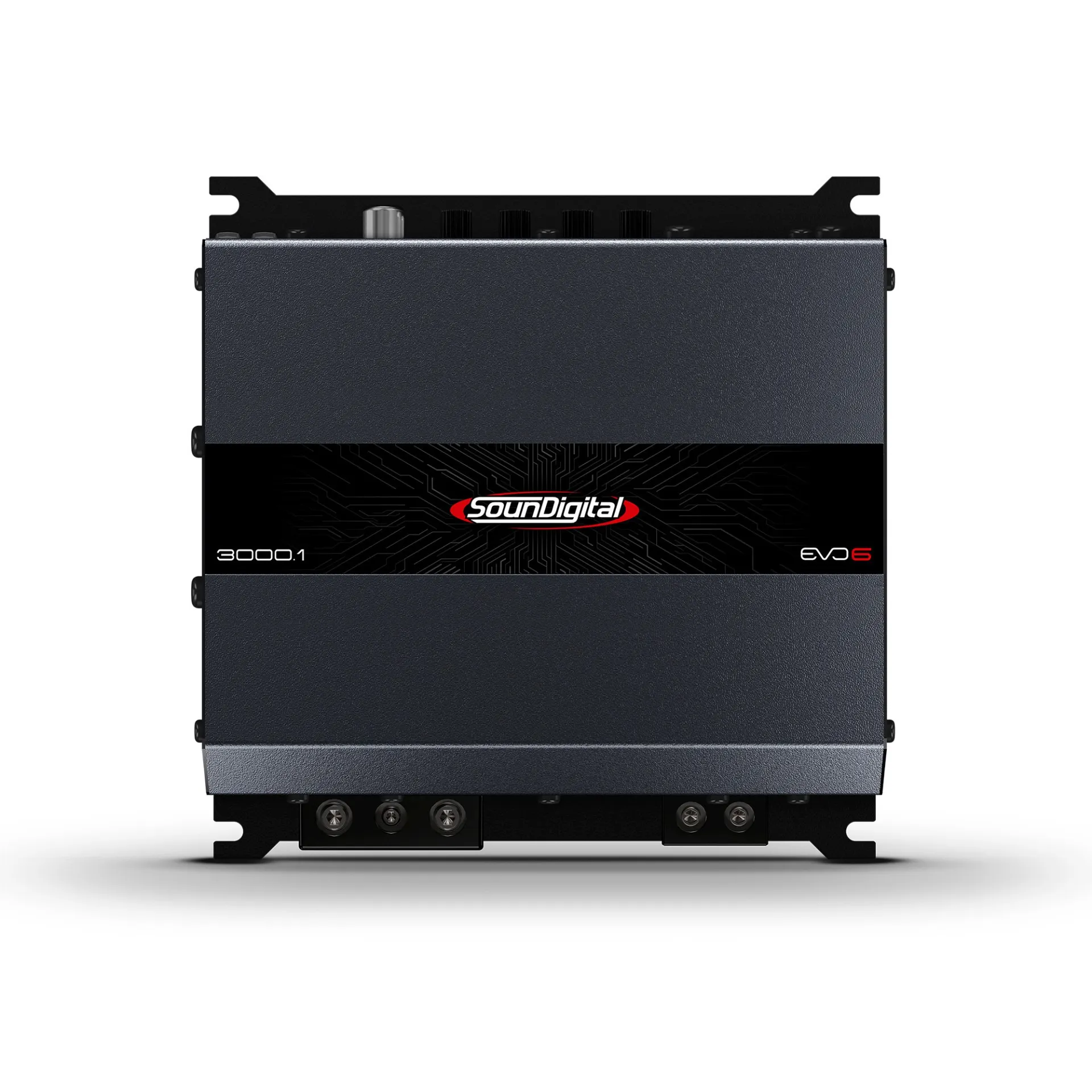

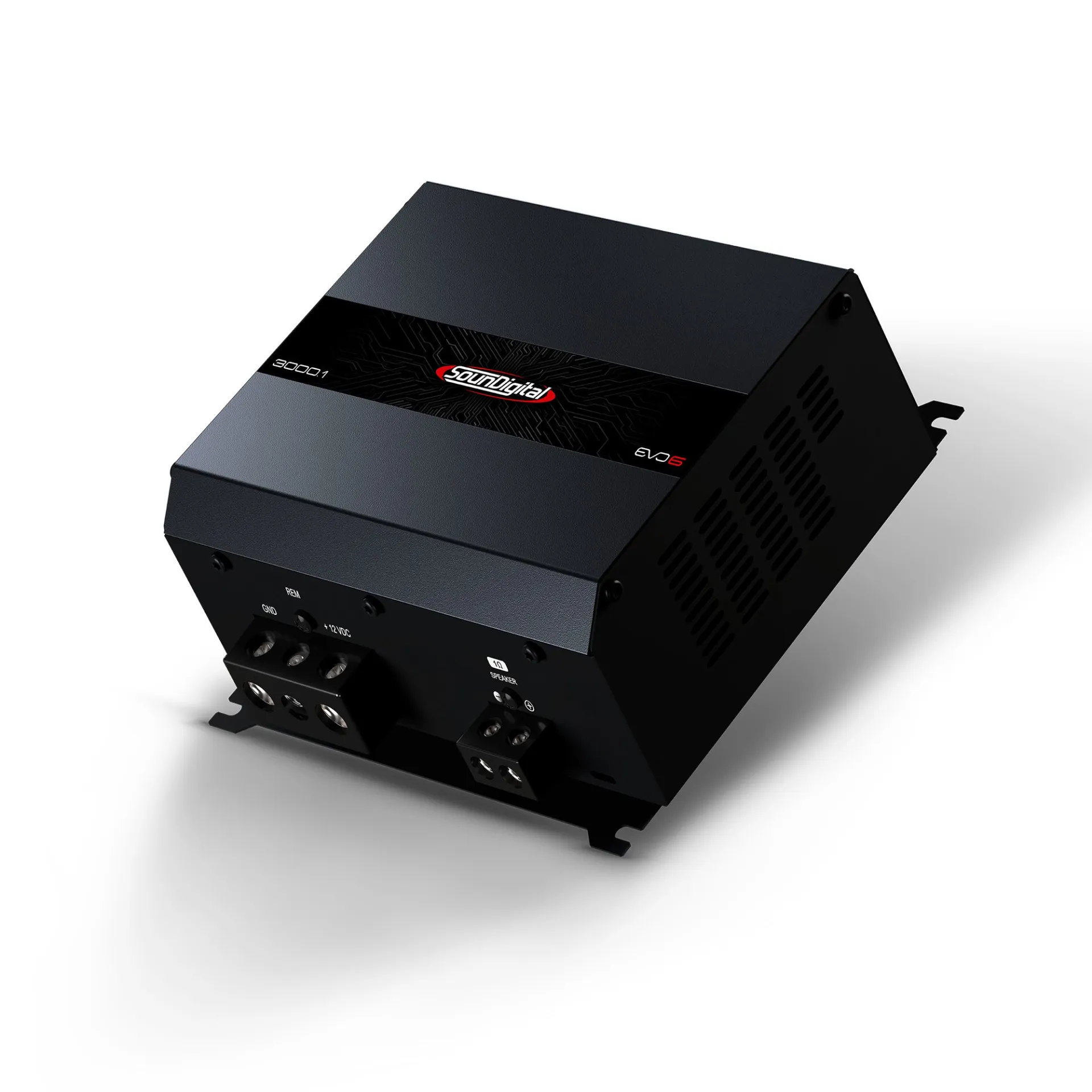

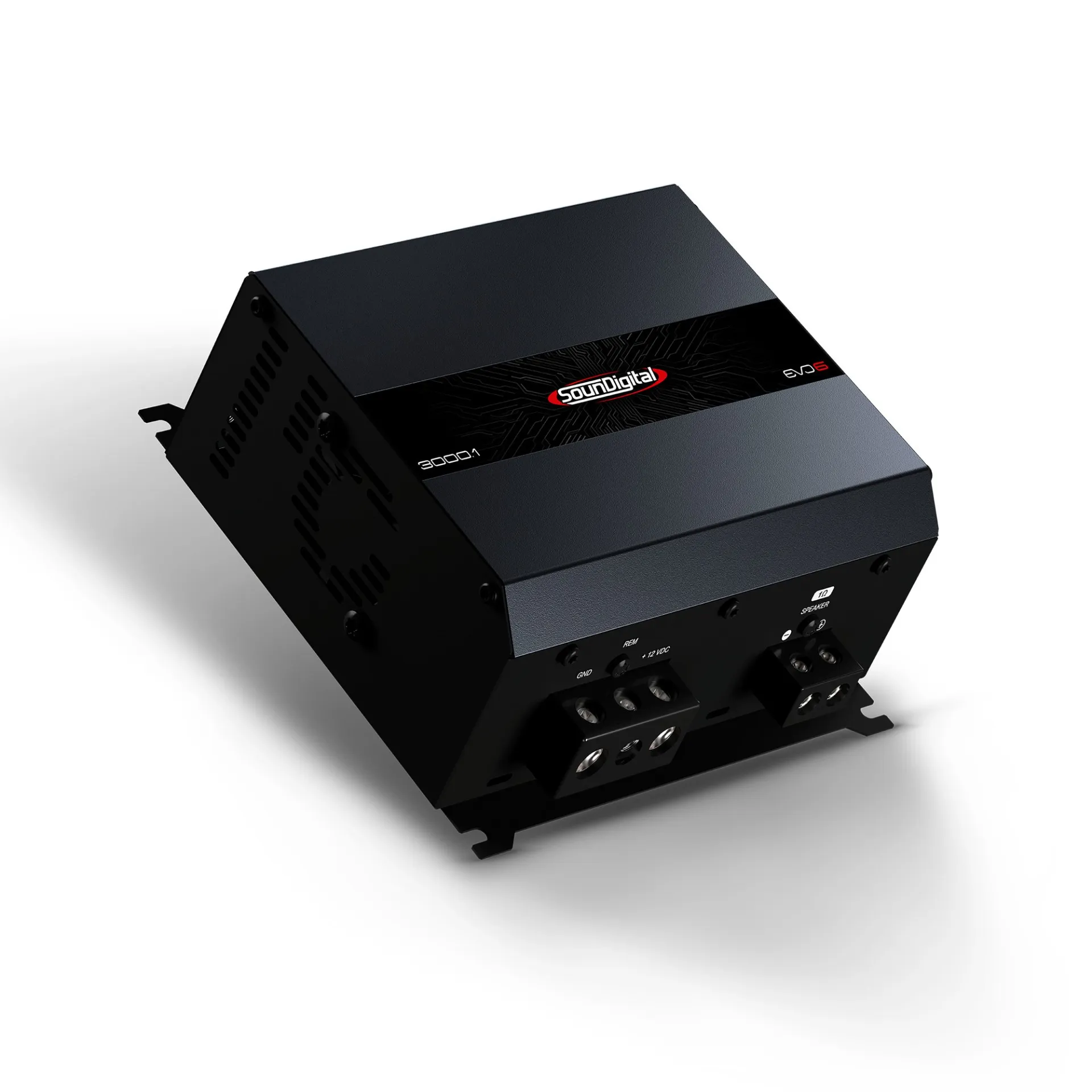

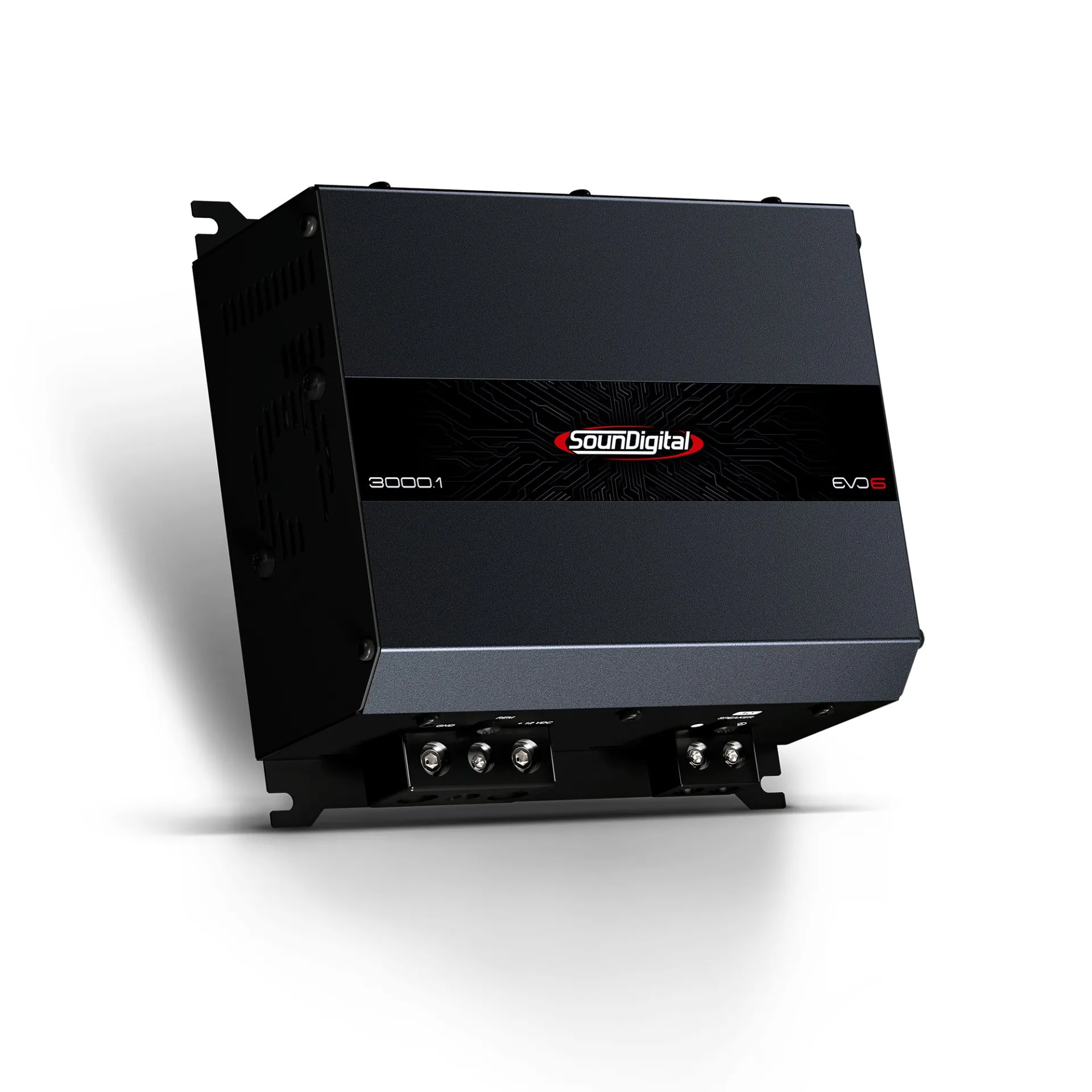

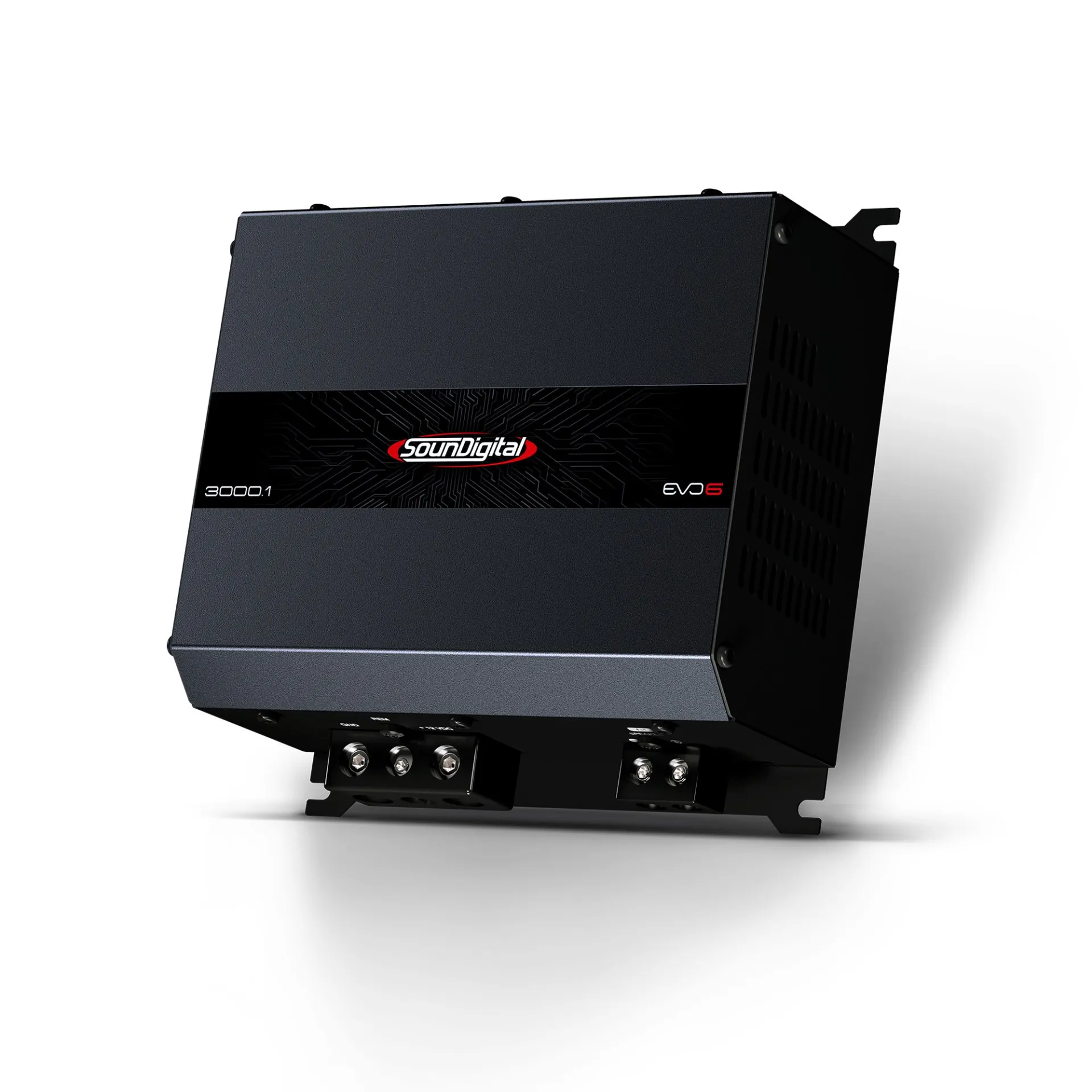

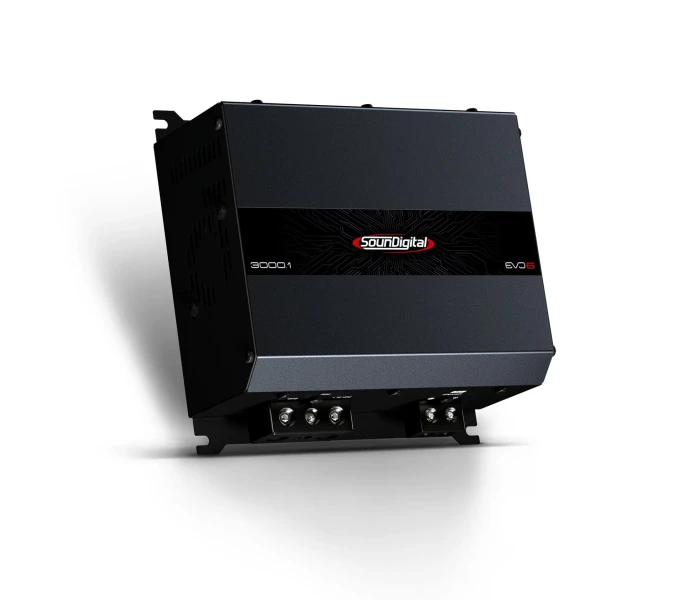

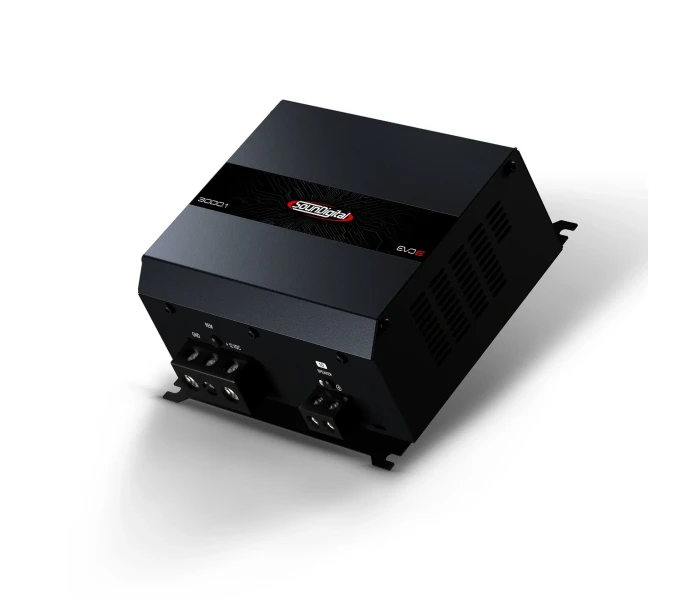

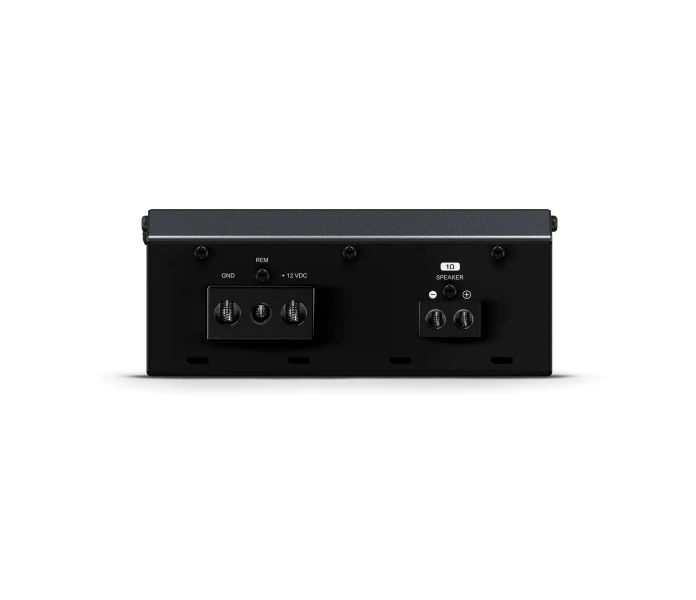

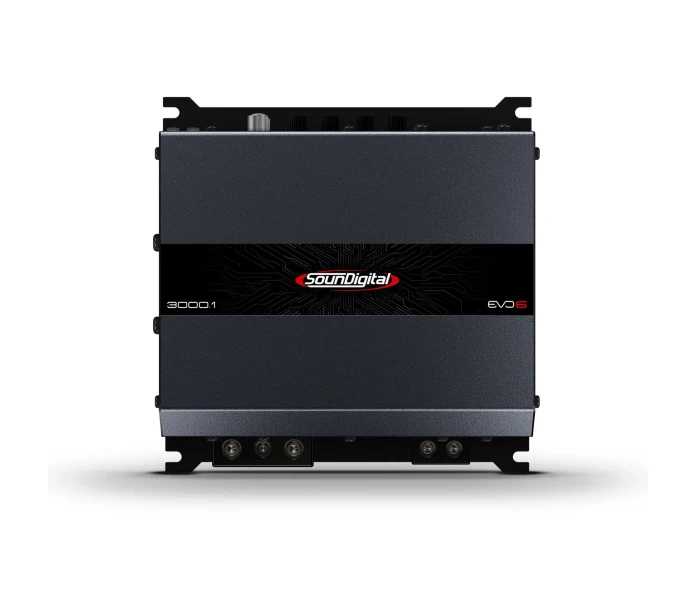

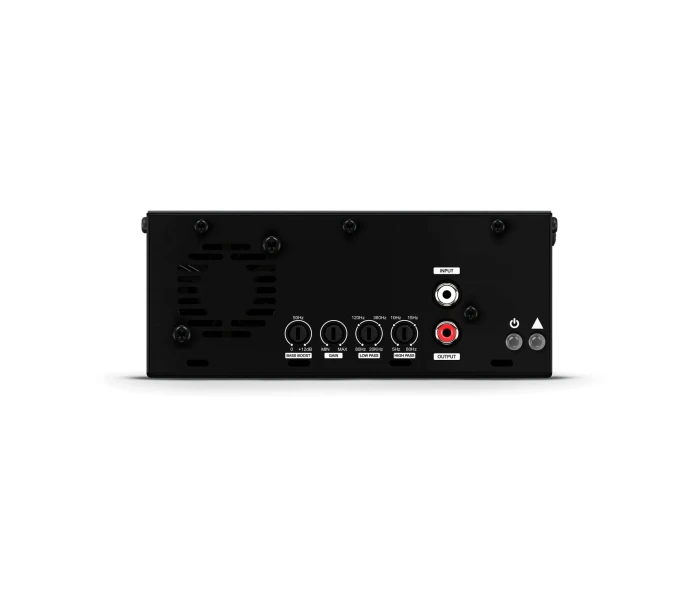

SounDigital 3000.1 EVO 6 - 1 Ohm
3000W
1 Ohm model
Micro size
Description
The 3000.1 EVO6 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Specifications
Power @ 4Ω: 1 x 1300W RMS
Power @ 2Ω: 1 x 1900W RMS
Power @ 1Ω: 1 x 3000W RMS
Frequency Response (-3dB): 5Hz ~ 20kHz

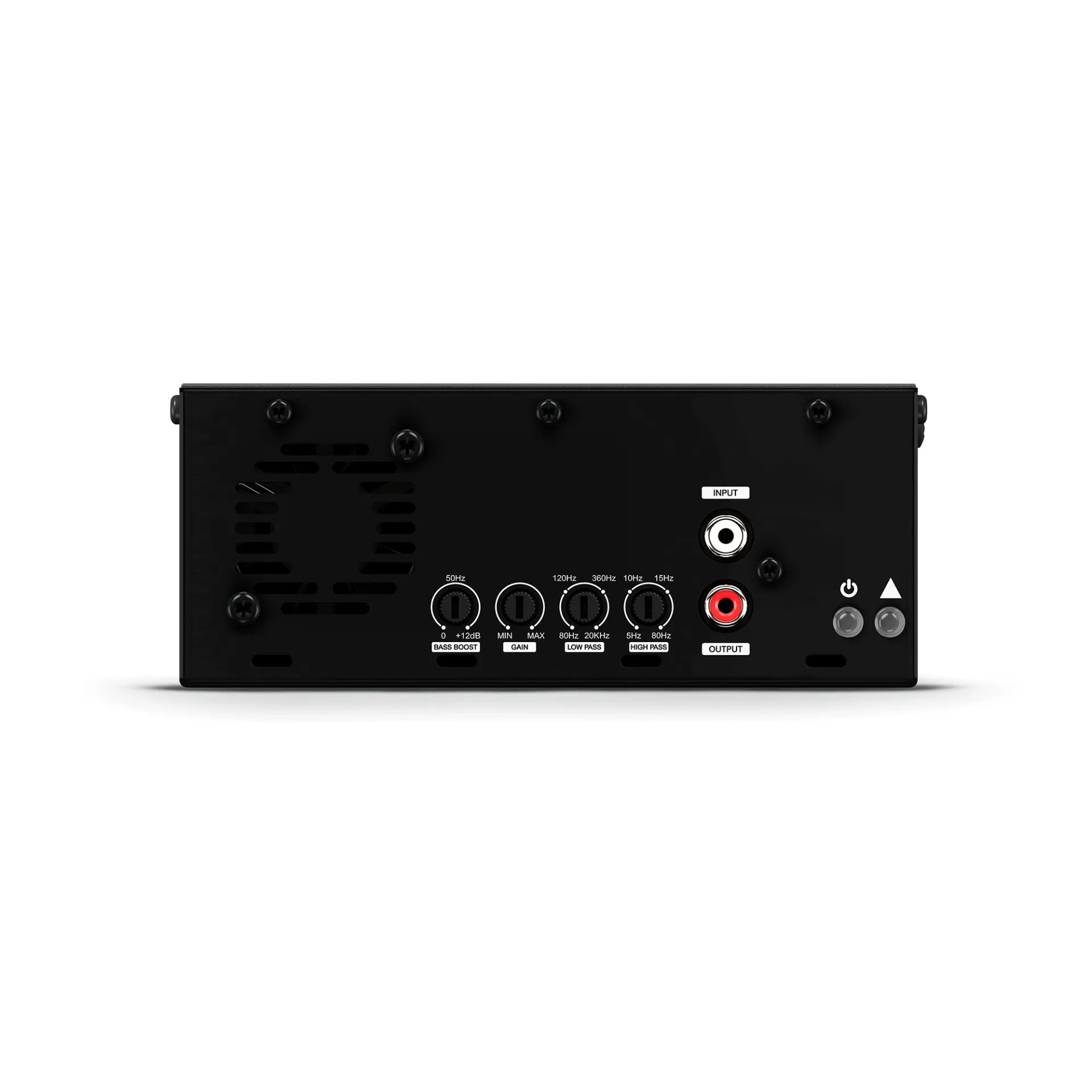

Low Pass Filter: 80Hz ~ 20kHz
Damping factor: 2000
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 10V – 16V
SNR: 90dB
Input Sensitivity: 0.2V ~ 2V
Current Draw (Music): 148A
Current Draw ( max ): 296A

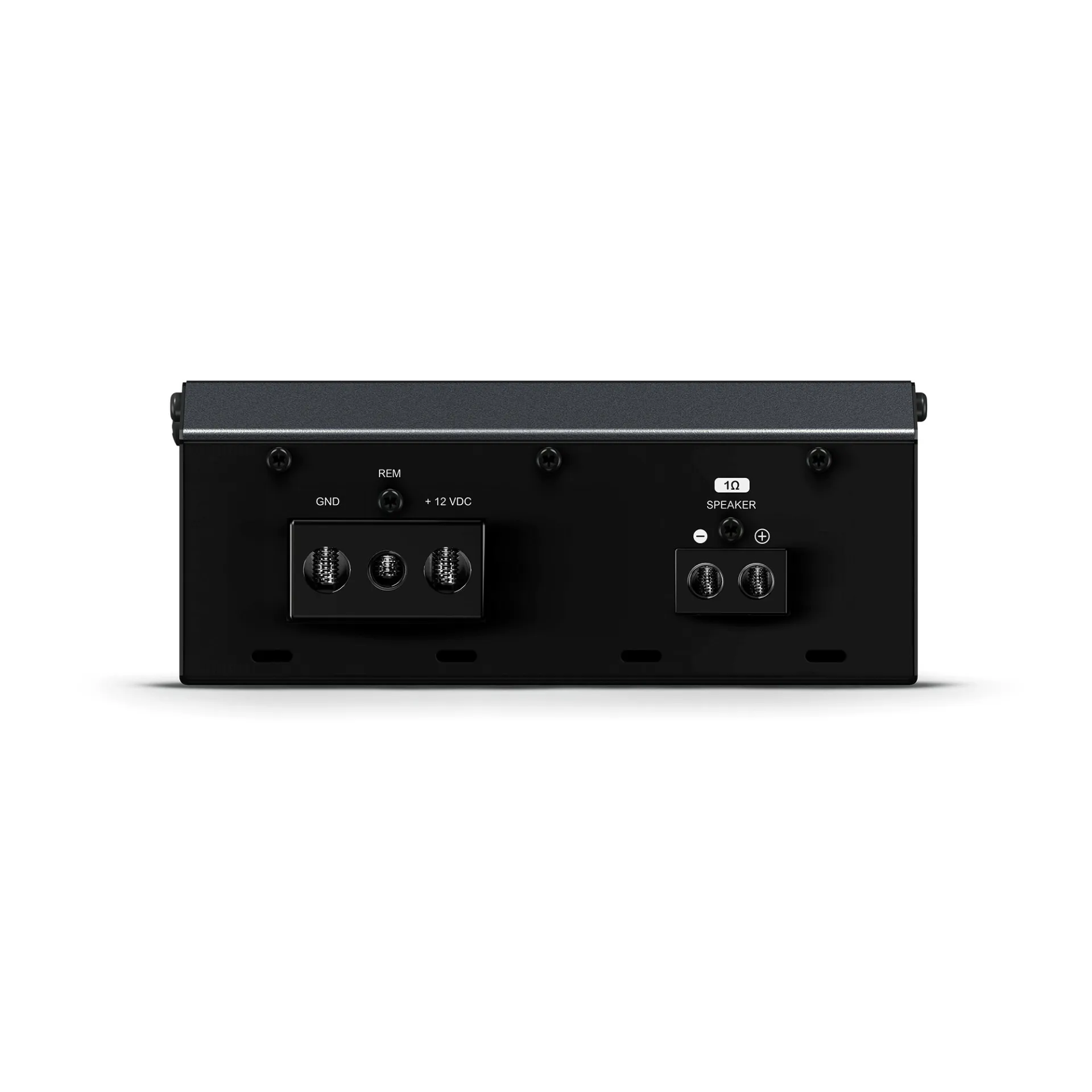

Power Cable: 35mm² (2AWG)
Audio Output Cable: 6mm2
Recommended Fuse (Music): 150A
Recommended Battery: 150Ah
Width: 5.92 / 15,5 cm
Length: 5.80 / 14,7 cm
Height: 2.38 / 6,6 cm
Weight: 1.47 kg
