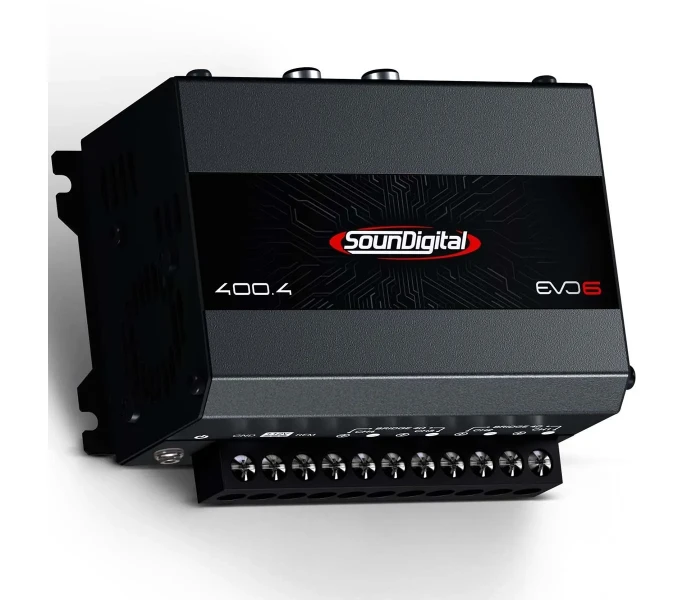

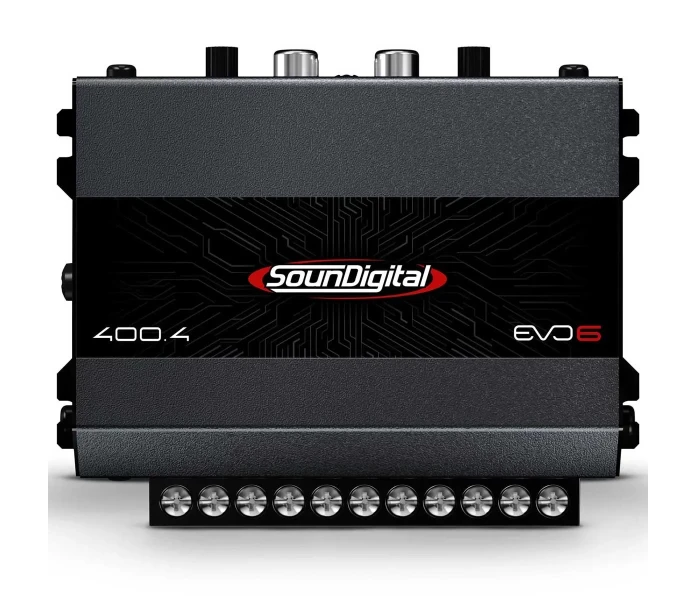

SounDigital 400.4 EVO 6 - 4 Ohm

EAN: 7898644528577
SD400.4-4 EVO6
SounDigital 4-channel amplifier
Read more
1 pcs
Description
Specifications

Description

Soundigital′s evolution series will change the playing field for everyone who likes to play
loud and hard.

These amplifiers have in a short time gained a lot of respect and become one of the big ones from Brazil.
And it′s no wonder they are made in Brazil by their own factory, the design team behind Soundigital has some very famous names competing in Pancadao, a sport where you play loud with the help of speaker walls as big as houses.

Specifications

POWER RATING
12,6V: @ 2Ω: 4 x 100 W RMS
12,6V: @ 4Ω: 4 x 66 W RMS
12,6V: @ 4Ω 2 x 200 W RMS ( Bridge )
14,4V: @ 2Ω: 4 x 140 W RMS
14,4V: @ 4Ω: 4 x 75 W RMS

Frequency Response (-3dB): 8Hz ~ 20kHz

Low Pass filter (12dB/octave): 80Hz

High Pass filter (12dB/octave): 80Hz

Operating Voltage: 9V ~ 16V

SNR: 94dB

Input Sensitivity (RCA): 0.2V ~ 2V

Current Draw (music): 20A

Current Draw (max.): 40.5A

Total Efficiency: 78%

Damping Factor (@100Hz nominal impedance): 200

Power Cable: 6mm² (9 AWG)

Speaker Cable: 2 x 1.5mm² (15 AWG)

Recommended Fuse (music): 25A

Recommended Battery (minimum): 40Ah

Width: 3.4″ / 8.6 cm

Length: 4.2″ / 10.7 cm

Height: 1.8″ / 4.6 cm

Weight: 0,437 kg / 0.963 lb

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!
