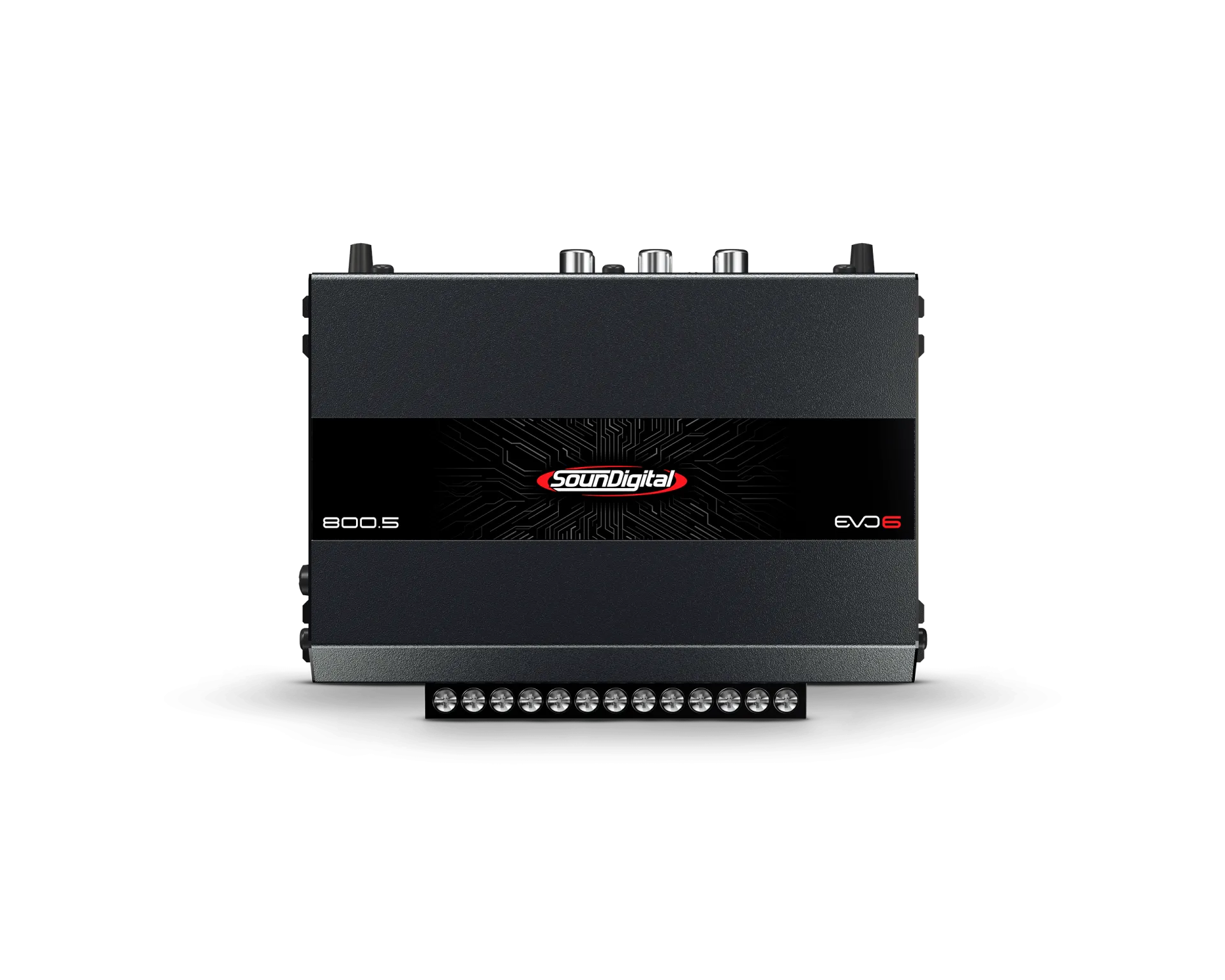

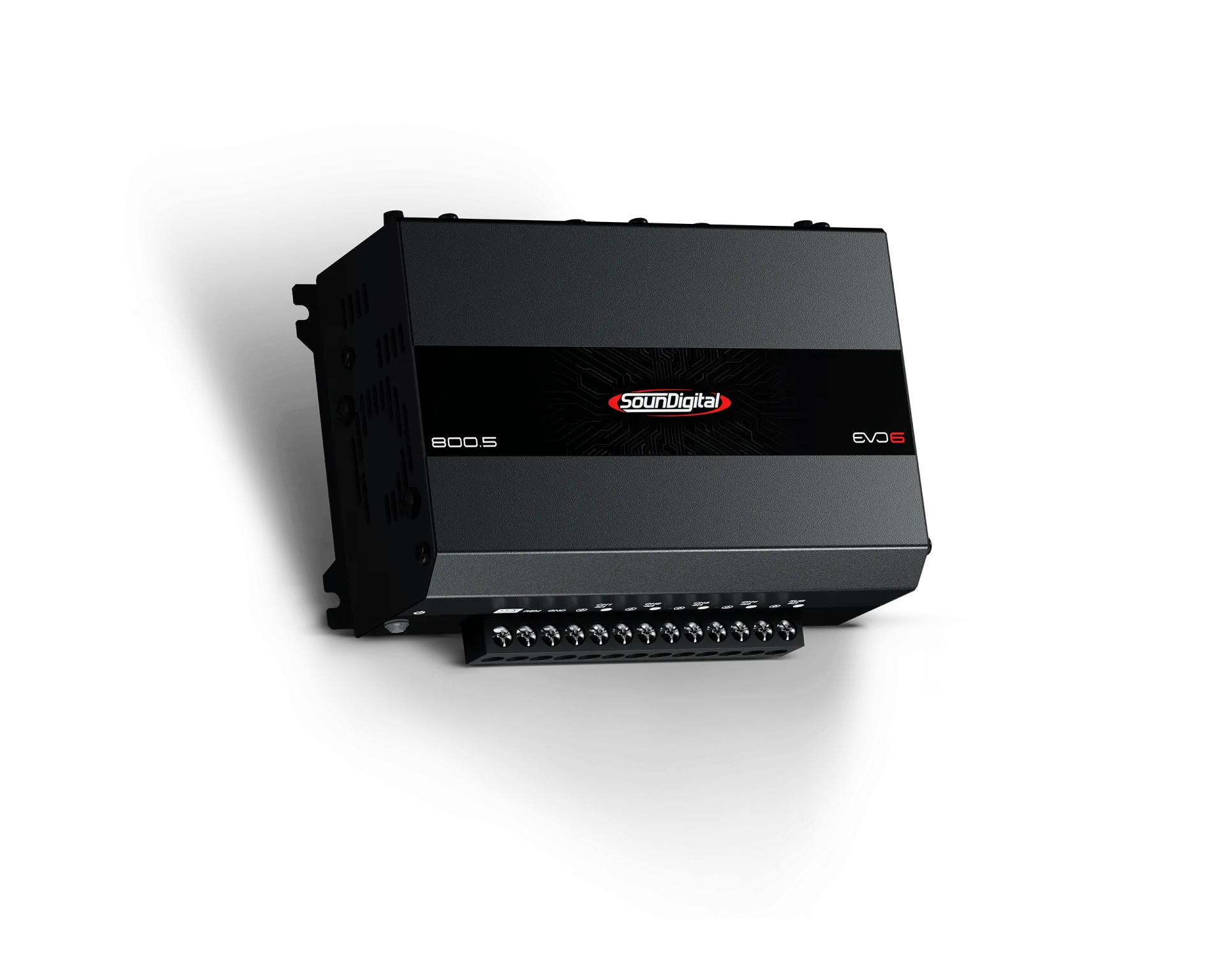

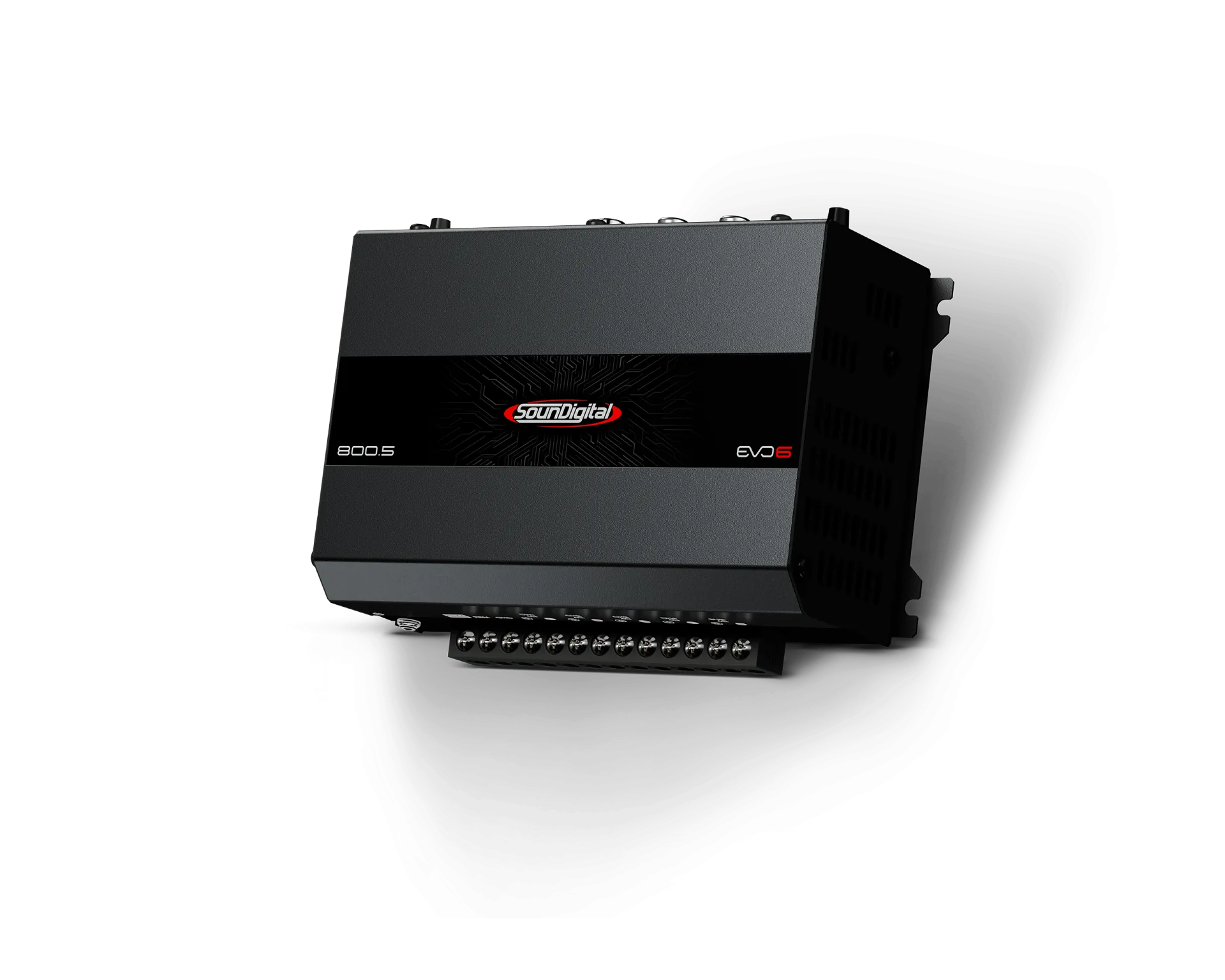

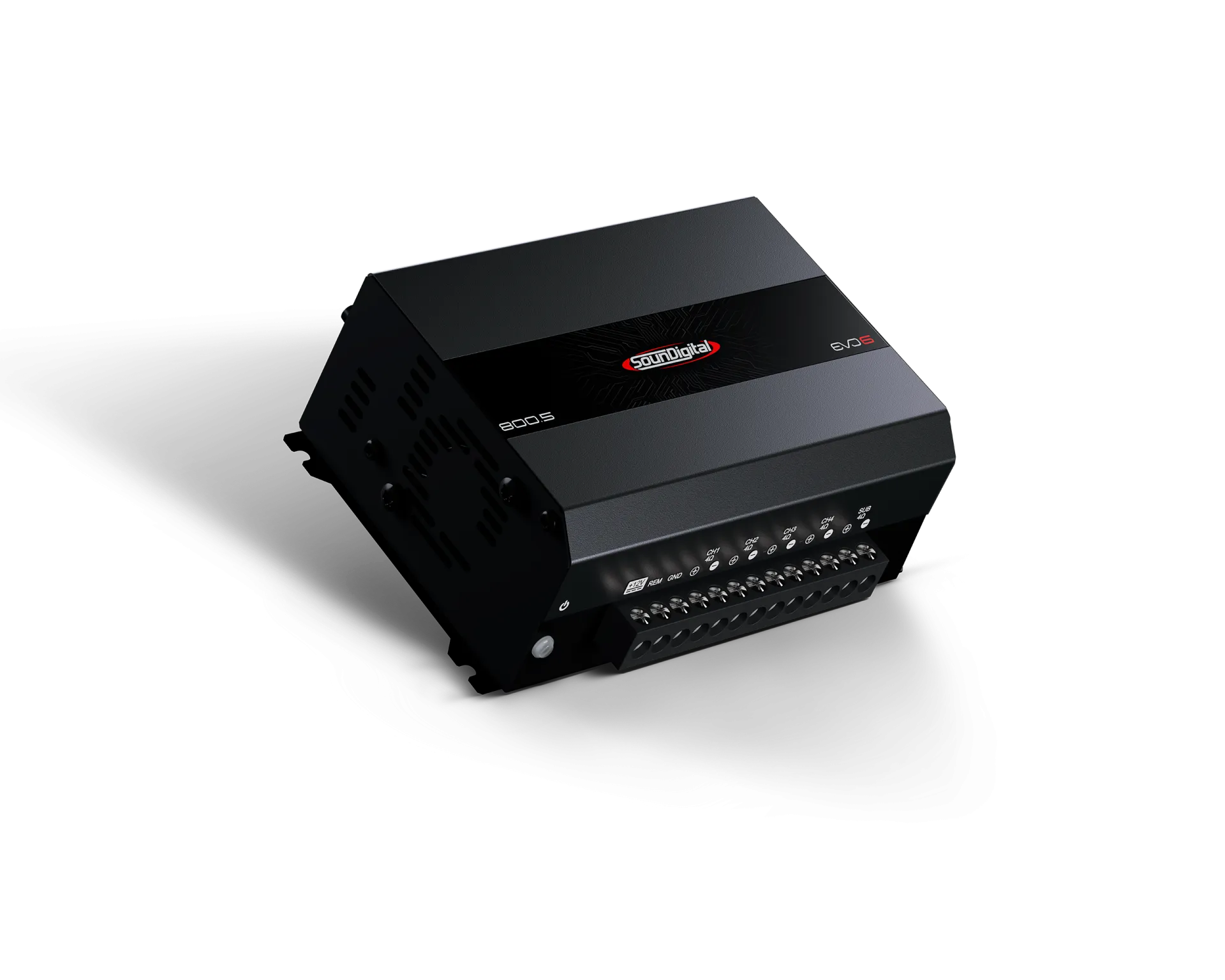

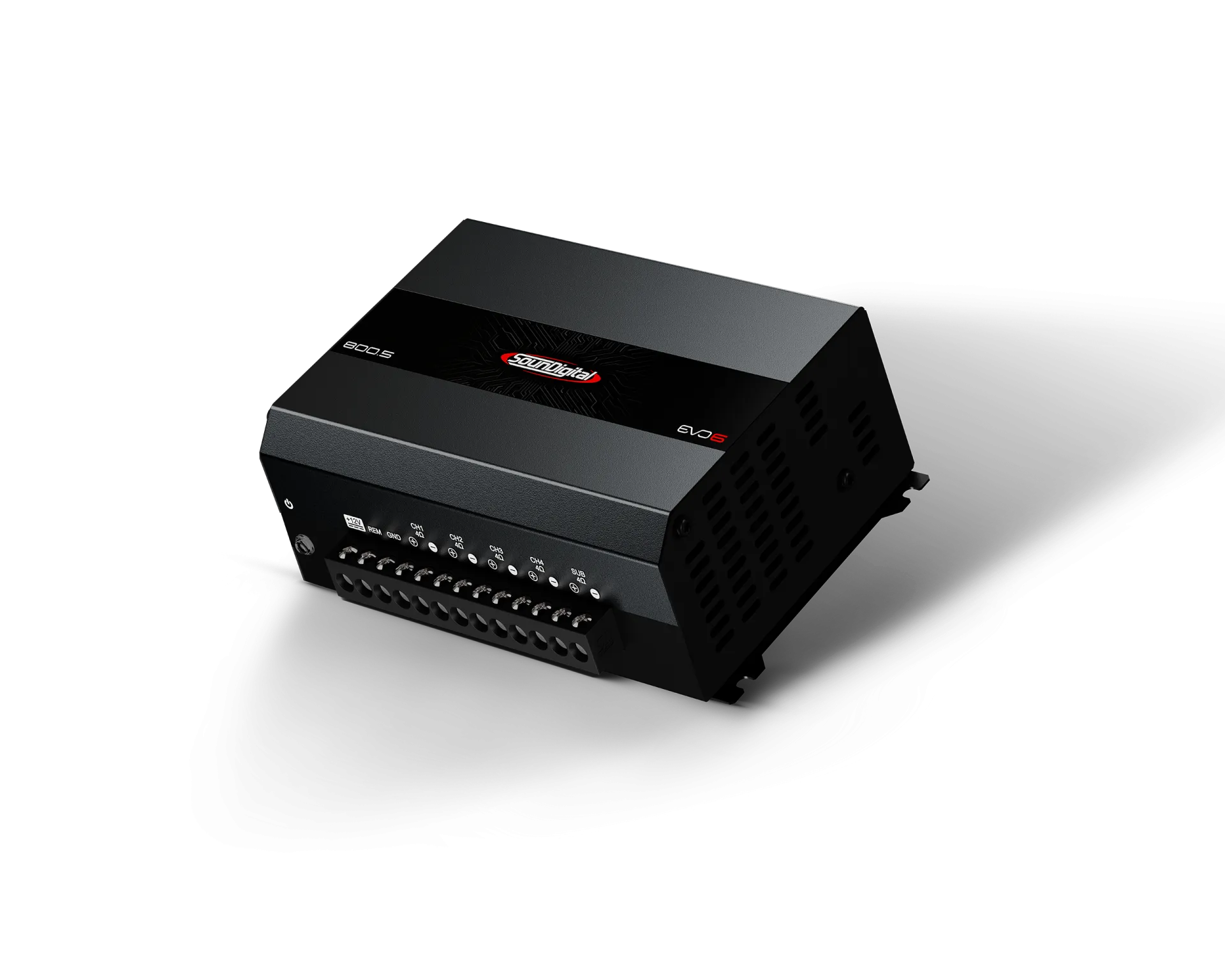

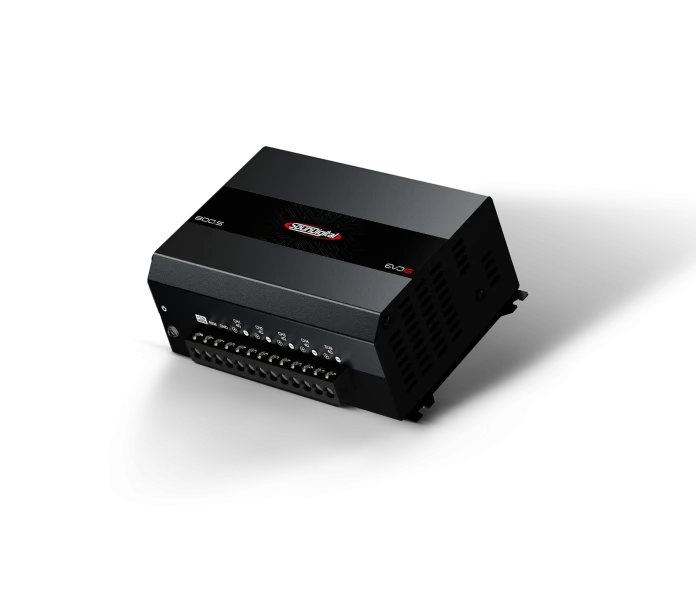

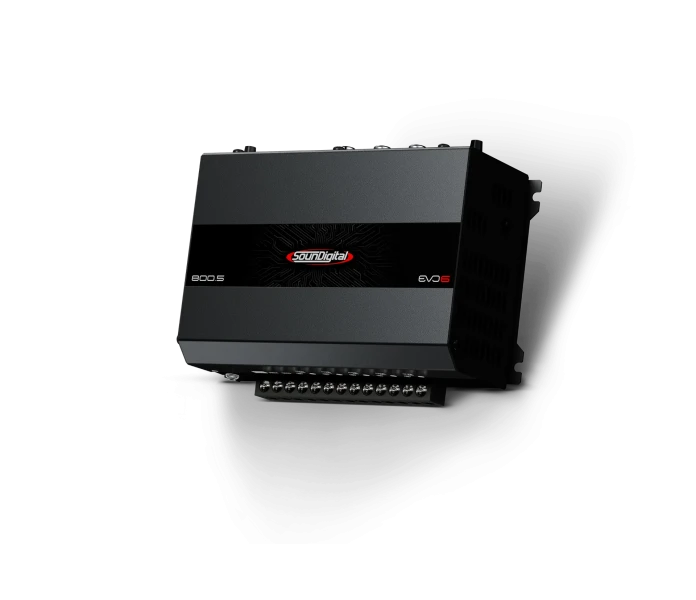

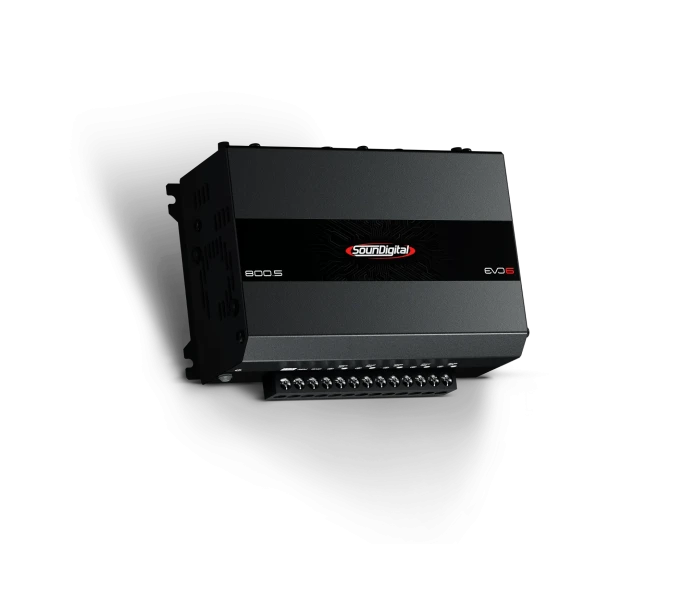

SounDigital 800.5 EVO 6 - 4 Ohm

SD800.5-4 EVO6
5 Channel amplifier
Very small size
4 x 100W / 1 x 400W
4 Ohm model
Read more
Description
Specifications

Description

It′s not just about audio.

It′s sensation, technology and emotion. IT′S EVO6.
This isn′t just another amplifier, it′s a leap in the evolution of car audio.

It redefines amplifier design. Every detail has been redesigned for excellence in audio quality, making your musical perception much more immersive.

Introducing the new 800.5 EVO6. With the help of AI we have achieved a miniaturization never seen before, these are the smallest amplifiers in the world, breaking power density records.

High efficiency that fits anywhere.
Join us on a journey into the future.

Specifications

Power @ 4Ω: 4 x 100W RMS
Power @ 8Ω: 4 x 66W RMS
SUBWOOFER: 4Ω: 1 x 400W

Bridge Power @ 8Ω: 2 X 200W RMS
SUBWOOFER: 8Ω: N/A

Frequency Response (-3dB): 80Hz ~ 25kHz
SUBWOOFER: 5Hz ~ 80Hz

Low Pass Filter (12dB/octave): 80Hz

High Pass Filter (12dB/octave): 80Hz

Operating Voltage: 9V ~ 16V

SNR: 103.88dB
SUBWOOFER: 102dB

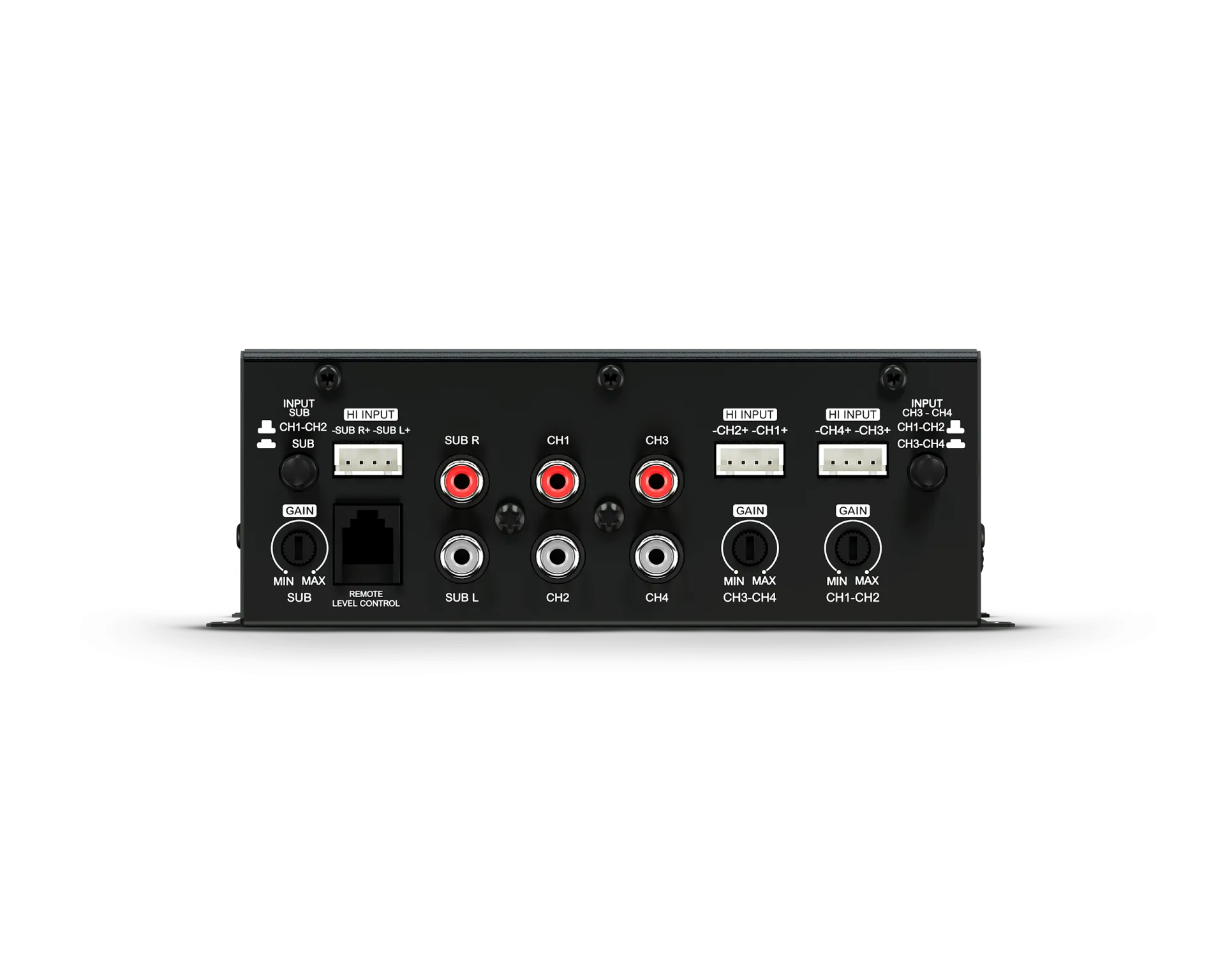

Input Sensitivity (RCA): 0.2V ~ 2V

Current Draw (music): 39A

Current Draw (max.): 78.7A

Total Efficiency: 80%

Damping Factor (@100Hz nominal impedance): 200

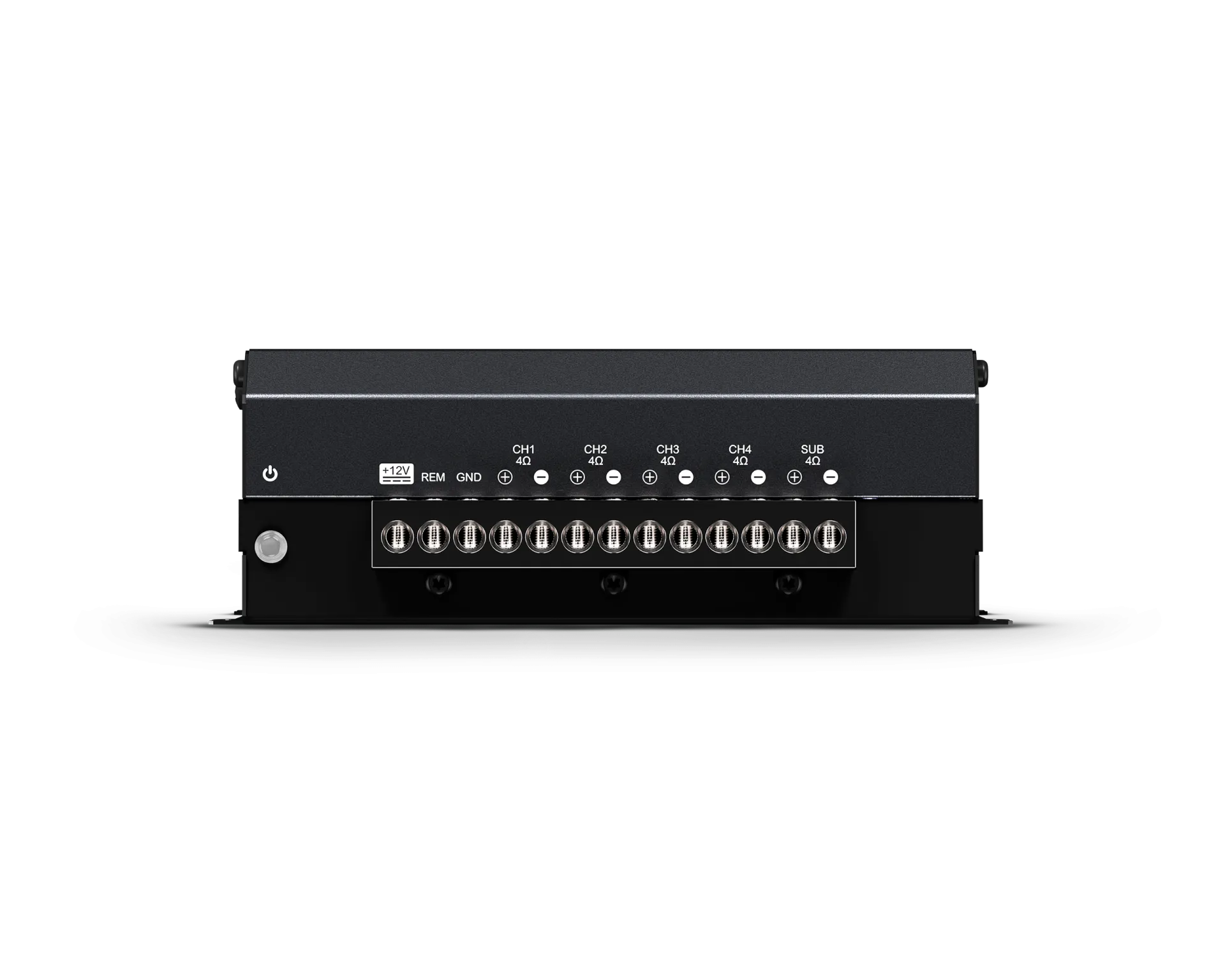

Power Cable: 10mm² (7 AWG)

Speaker Cable: 1.5mm² (15 AWG) / 2.5mm² (13 AWG)

Recommended Fuse (music): 40A

Recommended Battery (minimum): 60Ah

Width: 6.01″ / 15,7 cm

Lenght: 4.52″ / 11,7 cm

Height: 2.07″ / 5,5 cm

Weight: 0.74 kg / 1.63 lb


Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
