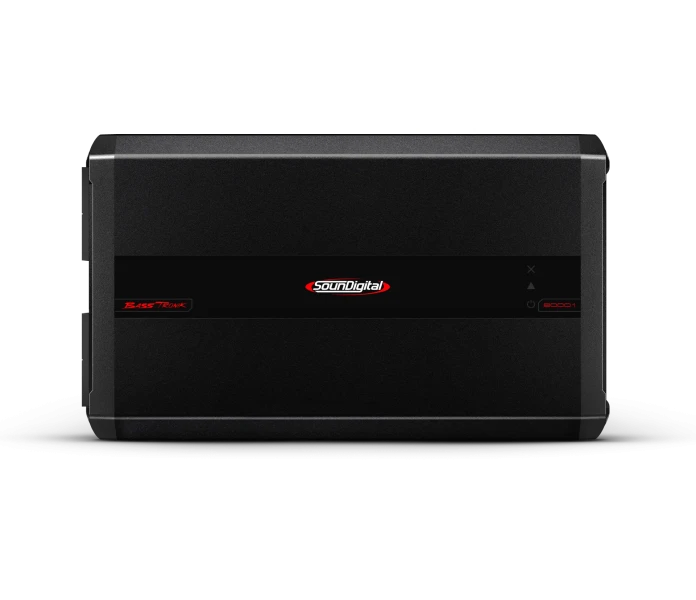

SounDigital 8000.1 BASSTRONIK - 1 Ohm
8000W
1 Ohm model
Excellent efficiency
Description
The Basstronik series is designed for more powerful and direct bass reproduction.
The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.
With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation.
The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere. Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.
Specifications
Power @ 4Ω: 1 X 3800 WRMS
Power @ 2Ω: 1 X 5300 WRMS
Power @ 1Ω: 1 X 8000 WRMS
Frequency Response (-3dB):
5Hz ~ 250Hz
Subsonic Filter:
5Hz ~ 40Hz
Low Pass Filter (12dB/octave):
50Hz ~ 250Hz
Bass Boost:
0dB ~ 10dB @ 35Hz
Operating Voltage:
10V ~ 16V
Signal-Noise Ratio:
91.7dB
Current Draw (Music):
399.3A
Current Draw (Max):
798.6A
Total Efficiency:
79.5%
Damping Factor:
2000
Recommended Fuse (Music):
2x200A
Recommended Battery:
450Ah
Width:
310.1mm / 12.2 in
Length:
180.6mm / 7.1 in
